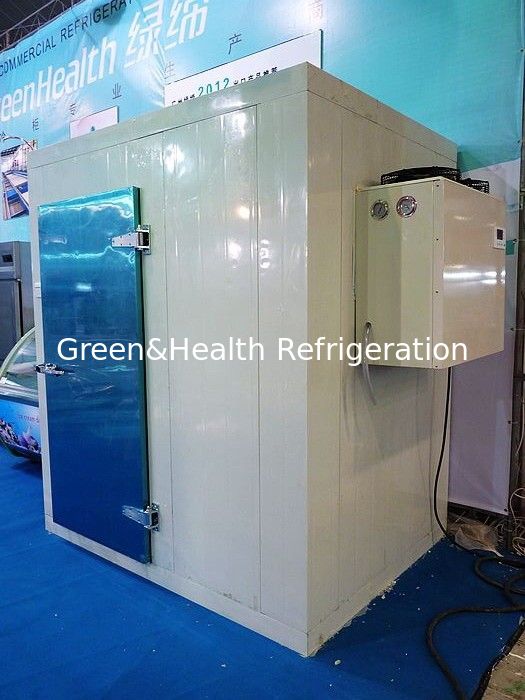

Insulation Pu Foam Sandwich Panel Cold Storage Room White Color For Warehouse

Insulation Pu Foam Sandwich Panel Cold Storage Room White Color For Warehouse

Cold Storage Chamber

Cool Storage Room

Place of Origin:

GuangZhou

Brand Name:

Green&Health

Certification:

CE CCC

Model Number:

LK-17

Contact Us

Request A Quote
Product Details
Model Number:
PU Sandwich Coldroom Panel
Panel Material:
Metal
Type:
Polyurethane Sandwich Panels
Steel Thickness::
0.4-0.7mm
PU Thickness:
50-200mm
Core Material::
Hard Polyurethane Foam
PU Density:
42KG/m3
Color:
White
Payment & Shipping Terms
Minimum Order Quantity
One Piece
Packaging Details
Wooden Packaging
Delivery Time
10 ~ 20 Work Days
Payment Terms
T/T
Supply Ability
200 Pieces / Month
Product Description

Insulated Pur Foam Sandwich Panel Cold room For Warehouse or Pu Sandwich Panel







Installation



1.Acoording to the room design,we will prepare the design together with the shipment and through electric docs.



2.we will mark all panels by numbers.



3.Condensing unit connection



4.Electric Control box connection.there are 2sensors inside the box.one for room temp and one for evaporative temp.



For the detailed spec..pls send inquiry to us!





Product Display





The polyurethane cold room panel is composed of two galvanized steel sheets and rigid polyurethane foam in the middle. Because the polyurethane cold room panel has several outstanding advantages, such as thermal insulation, waterproof, light weight and fast installation, It has been widely used as the building material of cold room, cool rooms, clean rooms, free-dust workshops and exterior walls in cold places.

At present, BRD polyurethane cold room panel has five different thickness: 50mm, 75mm, 100mm, 150mm, 200mm.



Item Specification
Product Name Cold Room
Structure PPGI + Polyurethane Foam + PPGI (PPGI : Prepainted Galvanized Steel Sheet)
Effective Width 1000mm
Panel Thickness 50mm 75mm 100mm 150mm 200mm
Length Customized
Core Rigid Polyurethane Foam
Density 42 Kg/m³
Thickness Of Steel 0.4mm To 0.7mm
Color White
Thermal 0.23%w/(m.k) Maximum
Enclosed Rate 95% Minimum
Flame Resistance Grade b
Usage Life Over 20year





Room Temperature For Your Reference:



Store Goods Temperature Range
Processing Room 10℃
Fruit, Vegetable, Dry Food 0℃ ~ 5℃
Medicine, Cake, Pastry, Chemical Material -5℃ ~ 0℃
Ice Storage Room -5℃ ~ -10℃
Fish, Meat Storage -18℃ ~ -25℃
Deep Freezer -25℃ ~ -35℃





FAQ



What Is The Suitable Height Of Cold Room?



The Height Of Room Ceiling Decides The Maximum Height Of Cold Room. Small Cold Room We Often Suggest 2.3~2.8m. Big Cold Storage We Suggest 3~5m.
