Place of Origin:
China
Brand Name:
Greenhealth
Certification:
CE,ROHS
Model Number:
customize
Contact Us
Warehouse Food Cold Storage Room Walk-In Freezer Remote Cold Room
Feature of cold storage
A cold room is a temperature controlled environment that is capable, through refrigeration, to create conditions for storage and preservation of foods. The types of cold rooms are classified by their range of temperatures and their size, which varies from a simple walk-in unit to cold rooms the size of a warehouse.The main advantage of cold rooms is their ability to provide precise temperature control for commercial and manufacturing operations that need to store perishables for long periods of time. Cold rooms are a convenient tool for preserving food products.The cooling process for a cold room is similar to any form of refrigeration unit in that they use compressors, condensers, fans, expansion valves, and evaporators to create low temperatures and maintain them. Depending on the type of cold room, temperatures can vary between -35°C and 10°C in accordance with what is stored and the use of the cold room.Panels are in multiple varieties and specifications to meet the need of various sites and projects.
The standard panel thickness: 100mm, 120mm, 150mm and 200mm
The temperature range optional: 0~10℃,-10~-18℃,-18~-22℃,-35℃
100mm width can keep temp at 0℃(suit for fresh keeping)
150mm width can keep temp at -25℃(suit for cold storage)
200mm width can keep temp at -38℃(suit for freezing)
| Product name | Polyurethane(PU) Sandwich Board | |
| Thickness | 75mm, 100mm, 120mm,150mm,200mm | |
| Length | can be customized,less than 12m | |
| Density | 40-42kg/m3 | |
| Color | white | |
| Fire resistance level | B2 | |
| Parts | Eccentric hook used for connection of panel | |
| Film covering for protecting the surface layer | ||
| Characteristics | heat insulation energy-saving | 100mm width can keep temp at 0℃(suit for fresh keeping) |
| 150mm width can keep temp at -25℃(suit for cold storage) | ||
| 200mm width can keep temp at -38℃(suit for freezing) | ||
| Water resistance and sound proof | ||
| Weather proofing | ||
| Fire retardant level:B2 | ||
| High strength and bending resistance | ||
| Easy quick installation and dismantling,labour cost saving | ||
| Light weight compared to traditional stone or plaster panel | ||
| Safe and green,good appearance,without formaldehyde | ||
| Usage | Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, warehouses, supermarkets, activities room,clean workshop. | |

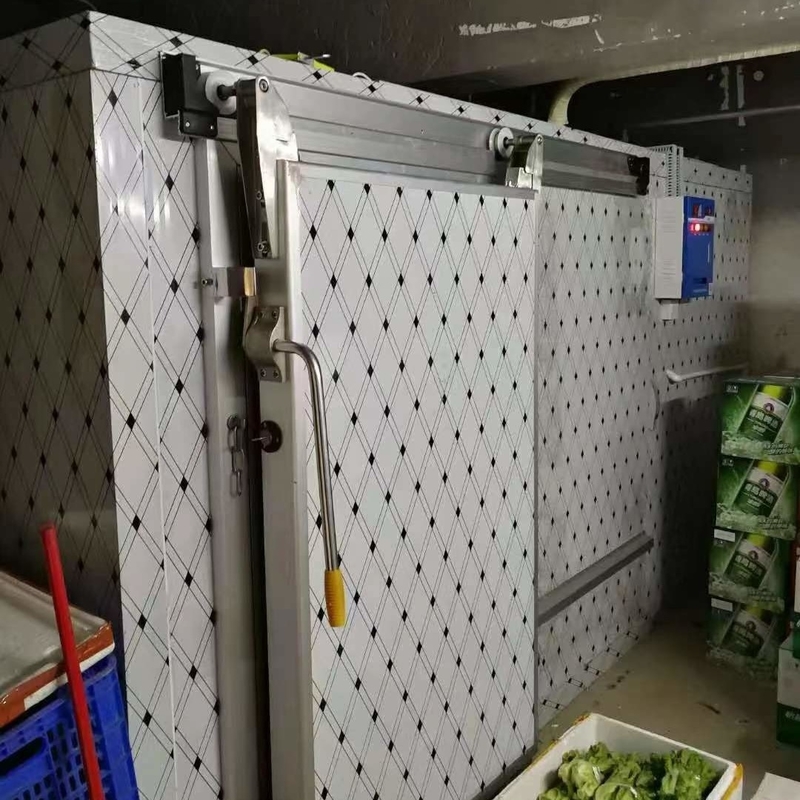

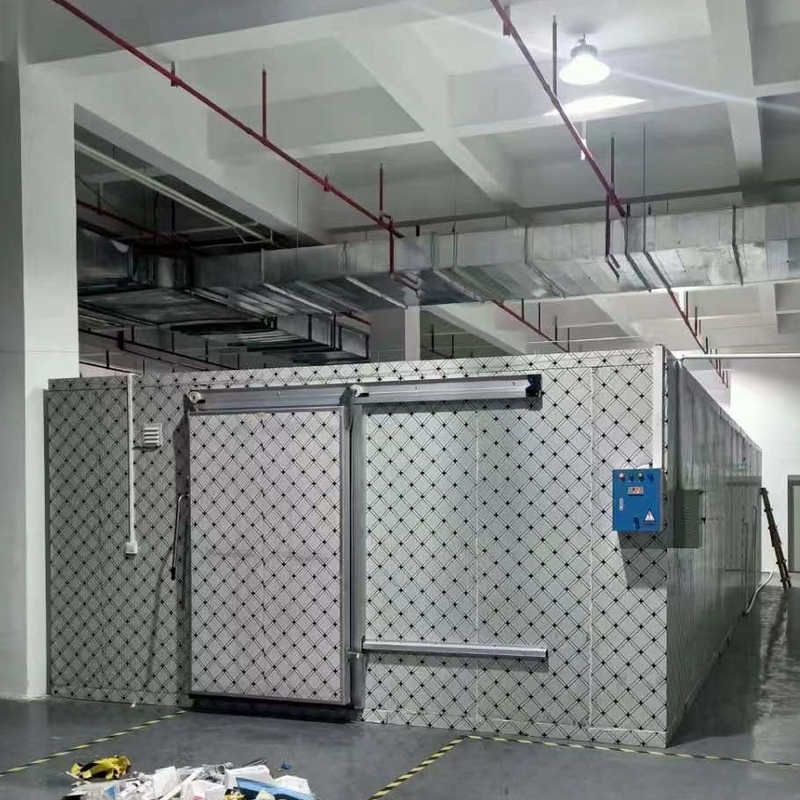

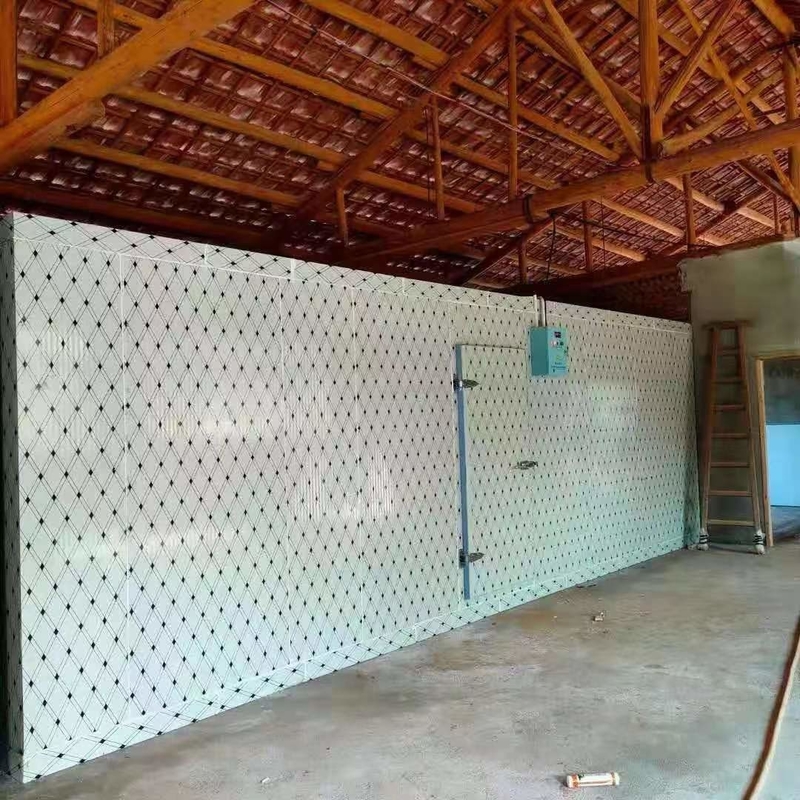

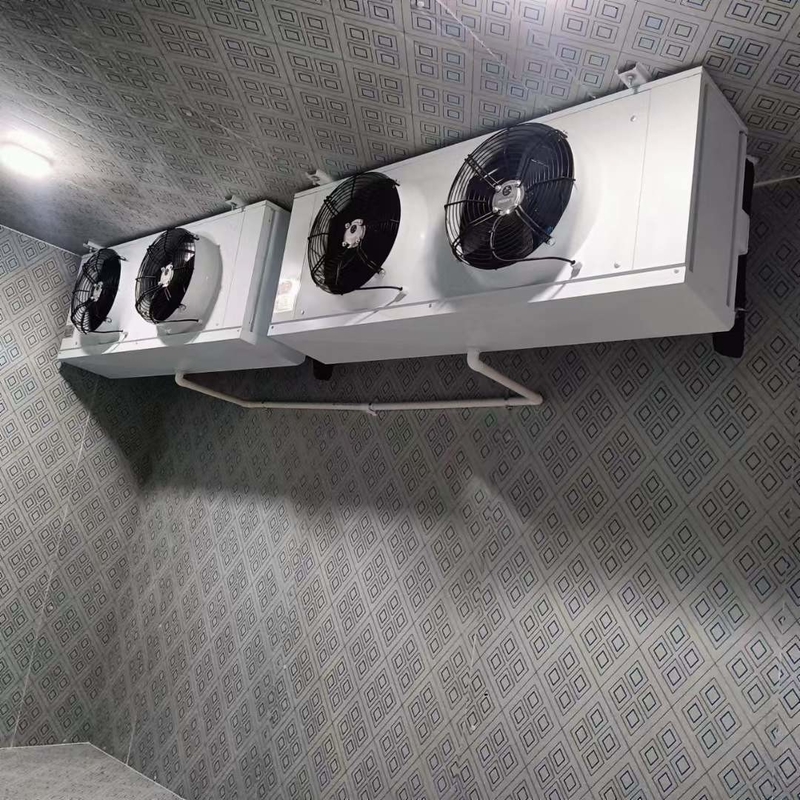

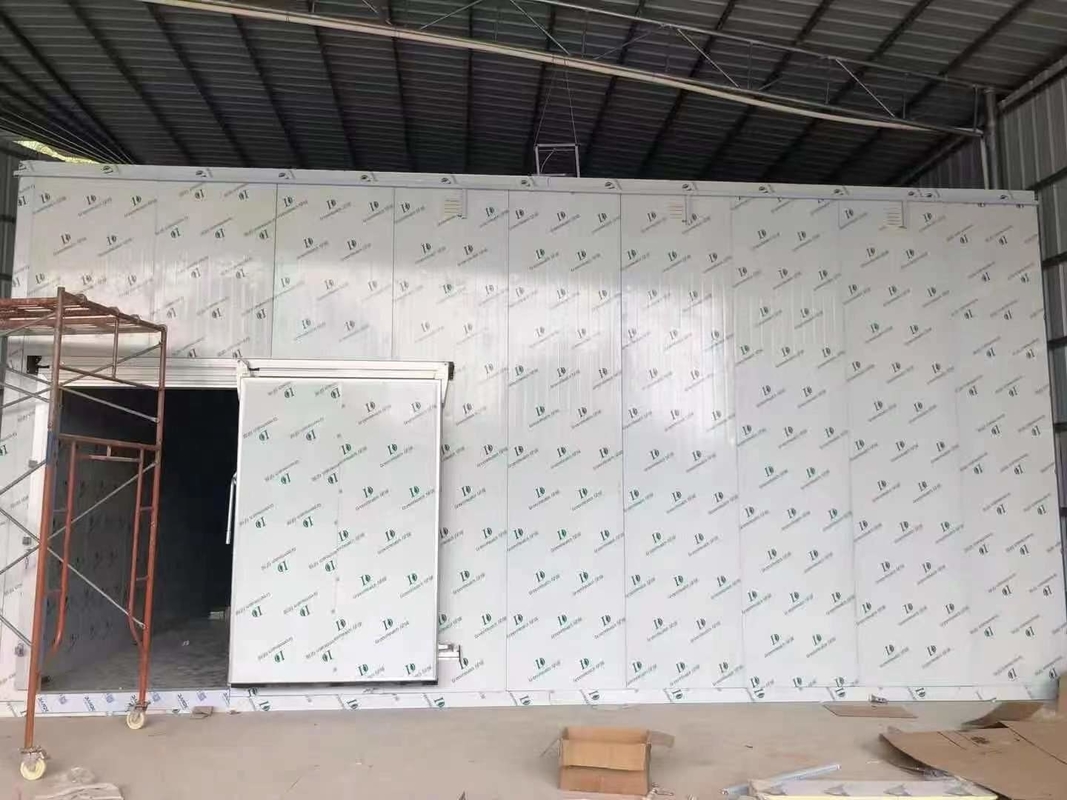

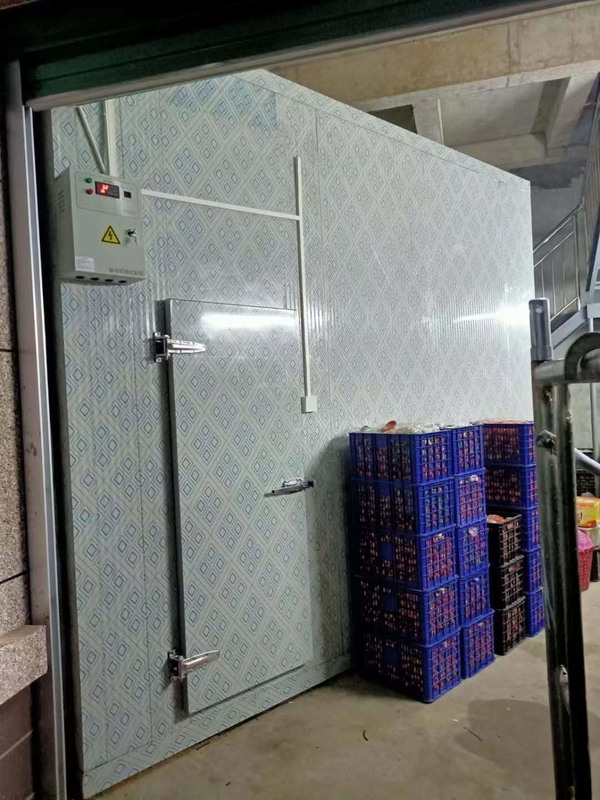

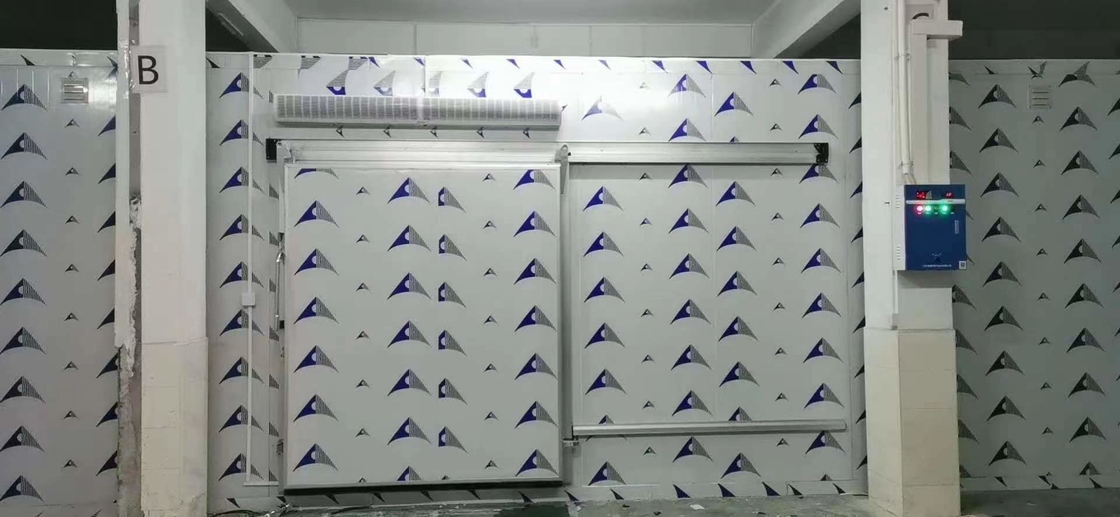

Cold rooms projects
