Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket

Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket

Supermarket Seawater Flake Ice Machine

PLC Control Commercial Flake Ice Machine

3 Ton Per Day Ice Flaker Machine

Place of Origin:

China

Brand Name:

Greenhealth

Certification:

CE,ROHS

Model Number:

IB-2000p

Contact Us

Request A Quote
Product Details
Capacity:
1000kg/24h
Ice Shape:
Flake Ice
Power Supply:
220V/380V,50HZ/60HZ
Certificate:
CE/ROHS
Ice Storage:
Optional
Expansion Valve:
Danfoss
Ice Thickness:
1.8~2.2mm
Ambient Temperature:
25 Degree
Refrigerant:
R404A
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
negotiation
Packaging Details
Wooden frame
Delivery Time
30days
Payment Terms
Ex works
Supply Ability
100PCS/week
Product Description

                             Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket





Main Features:



1) Simple maintenance and convenient operation.

2) Full capacity of ice output.Stainless steel external cladding enables use in any environment.

3) Outstanding electric control system, PLC program control system, ice discharge automatically: hygienic and labor-saving;

4) Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.

5) Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and deliver

6) Flake ice is directly formed at low temperatures. Ice flakes have no sharp edges and won't damage refrigerated surfaces.

7) Polyurethane insulation to restrict heat transfer and eliminate water penetration.

8) Ice flakes are easy to storage and easy to transport.





Product Application:



This flake ice maker can use in fresh food preservation fisheries and food processing,is mainly used in industry, hotel, supermarkets, convenience stores, restaurants,butchery shops, seafood shop etc.



Features of Flake ice machine system

1. Stability and reliability, long use life.
2. Energy-efficient and cost saving
3. Excellent fast cooling super cold, dry, crisp, subcooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. User-friendly design, which is very convenient for operator. The intellectualized historical failure record function and guidance o f troubleshooting makes easier and simple operation and maintenance. The running time setting function convenient operation

Specification

Compressor Brand: Danfoss / Bitzer / Hanbell; Refrigerant: R404A;
Power Supply: Voltage 220V/50/60Hz 380V/3P/50/60Hz
Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-20ºC.

Air cooling /Water cooling mode.
Expansion valve:Danfoss
Ice capacity:200kgs to 30Tons/24h,different capacity models for choose
Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.


Details of ice flaker in different capacity



Flake Ice Maker 200kgs
Model GH-0.2T Compressor Embraco
Dimension 1020*900*1600MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 1.5hp Capacity 200kgs per 24h
Flake Ice Maker 300kgs
Model GH-0.3T Compressor Embraco
Dimension 1020*900*1600MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 2hp Capacity 300kgs per 24h
Flake Ice Maker 500kgs
Model GH-0.5T Compressor Secop
Dimension 1100*970*1950MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 3hp Capacity 500kgs per 24h
Flake Ice Maker 1000kgs
Model GH-1T Compressor Secop
Dimension 1270*113*2050MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 5hp Capacity 1000kgs per 24h



GH-1.5T Flake Ice Maker
Model GH-1.5T Compressor Danfoss
Dimension 1270*1290*2100MM Refrigeration R404a
Body Material Stainless Steel Model refrigeration Fan cooling
Power 5.6KW Daily Output 1.5T per 24h



GH-2T Flake Ice Maker
Model GH-2T Compressor Danfoss
Dimension 1500*1400*2450MM Refrigeration R404a
Body Material Stainless Steel Model refrigeration Fan cooling
Power 8.6KW Daily Output 2T per 24h



GH-3T Flake Ice Maker
Model GH-3T Compressor Maneurop
Dimension 1500*1400*2650MM Refrigeration R404a
Body Material Stainless Steel Model refrigeration Fan cooling
Power 11KW Daily Output 3T per 24h



Other Capacity till 50tons per 24h waiting for your inquiry.

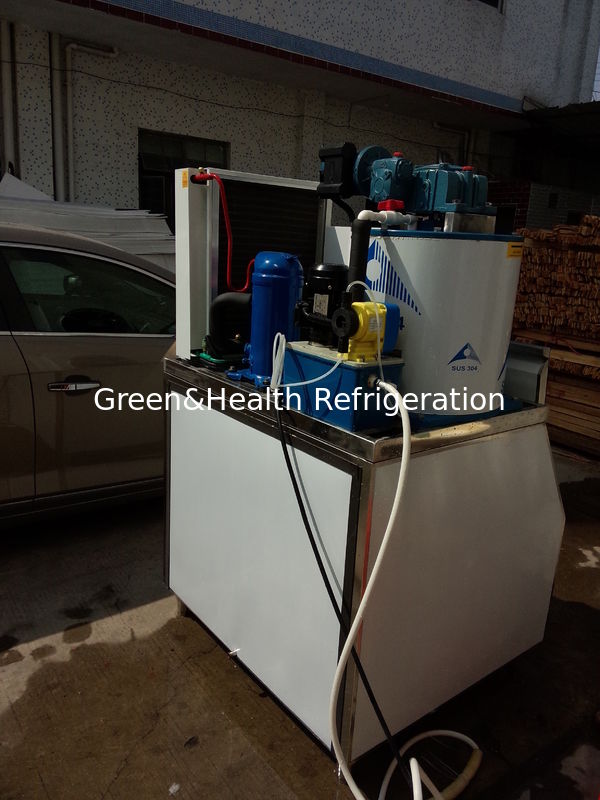

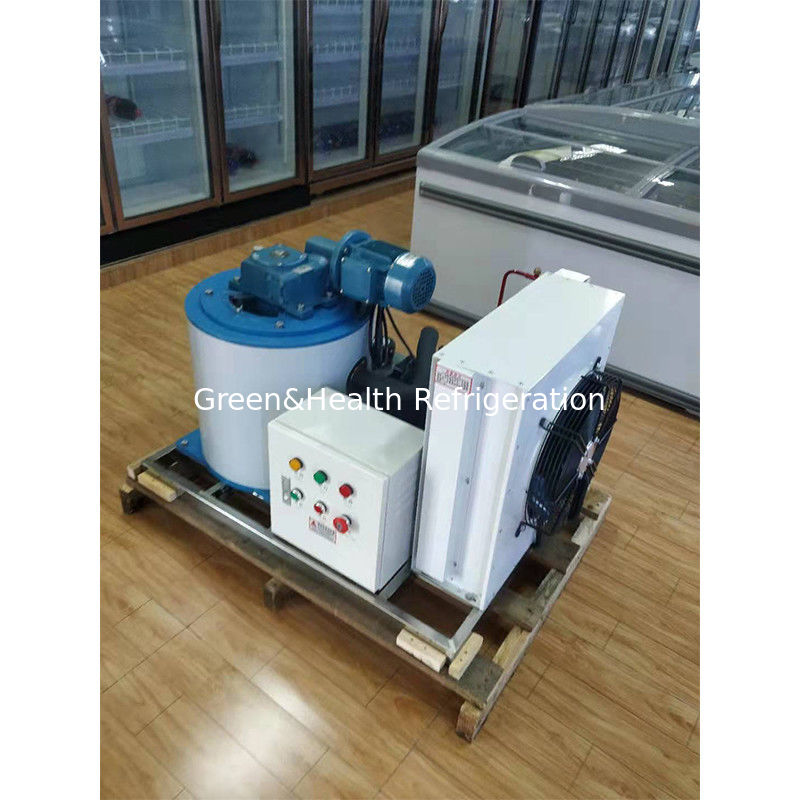

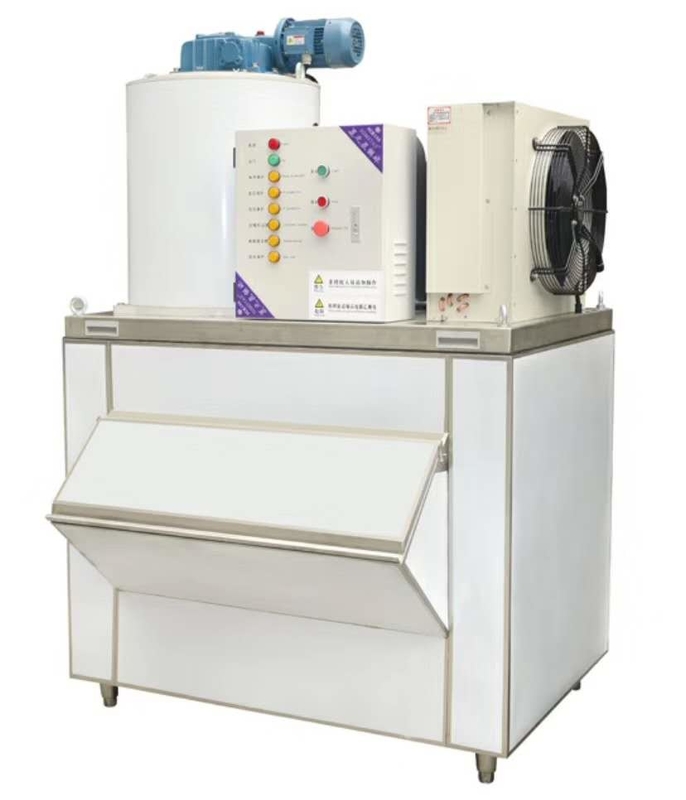

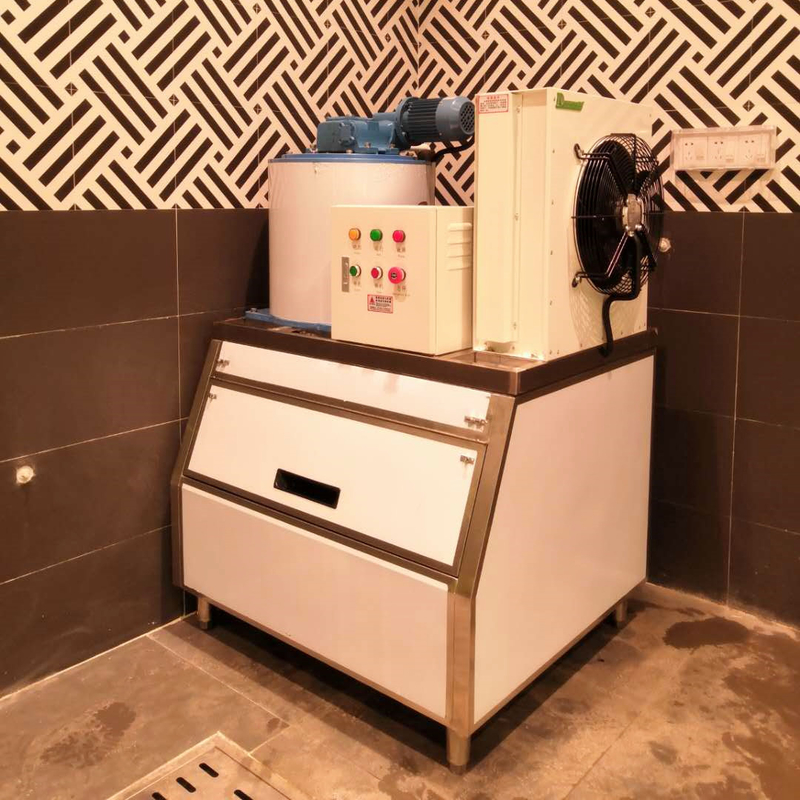

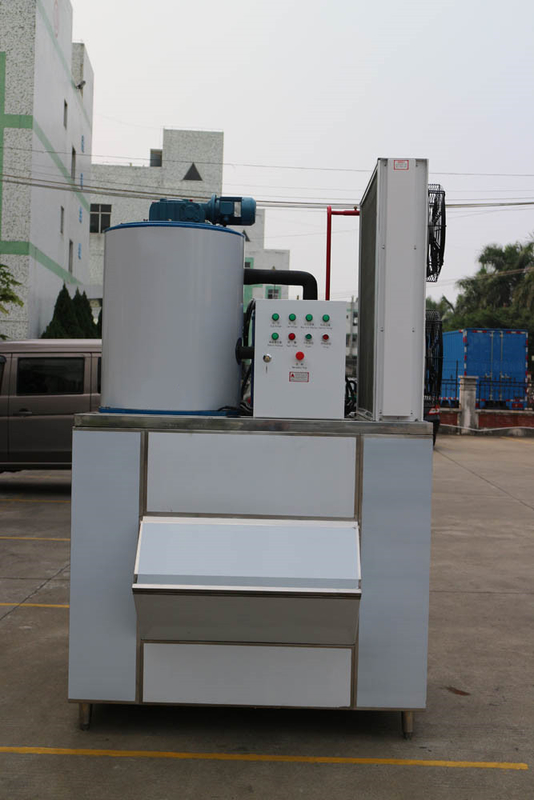

Pictures for reference



Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket 0Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket 1Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket 2Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket 3Commercial Salt Water 3 Ton Per Day Seawater Flake Ice Machine For Supermarket 4
