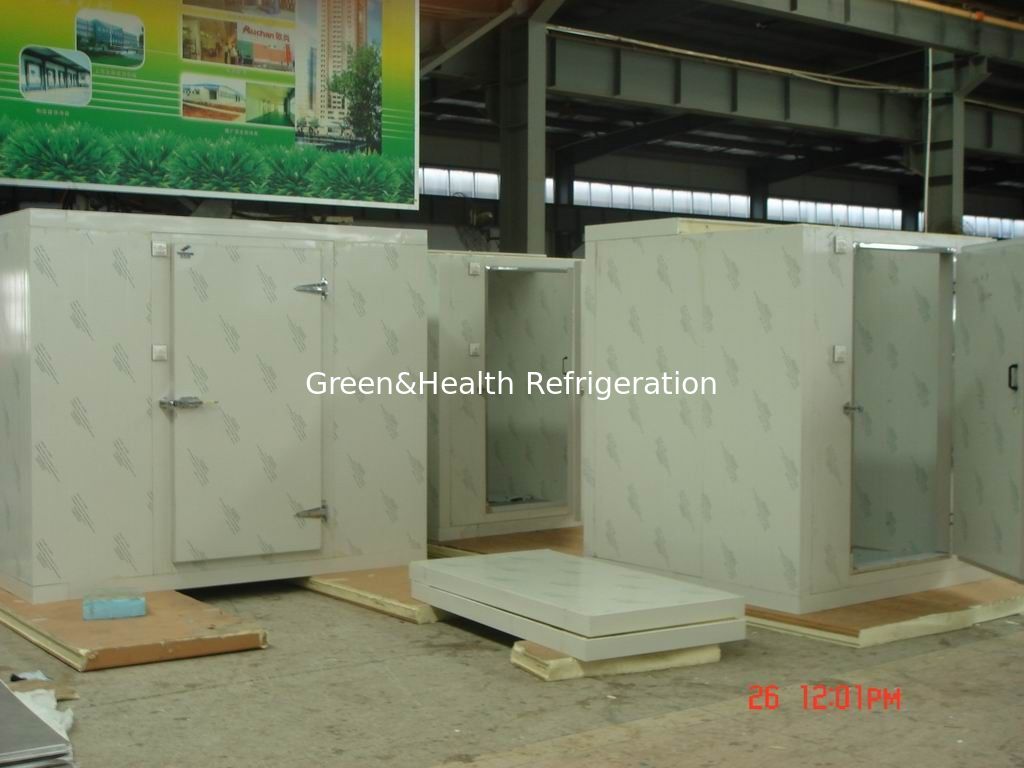

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door

Cold Storage Chamber

Cold Storage Warehouses

Place of Origin:

China

Brand Name:

Greenhealth

Certification:

CE,ROHS

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
Wooden frame
Delivery Time
30days
Payment Terms
Ex works
Supply Ability
100PCS/week
Product Description


Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door

Greenheath frozen cold storage room adopts environment friendly R404a refrigerant. Capacity can be small to 10cubic meter, big to 1000cubic meter. The temperature can be 0 to 10 °C for chilling storage, or -20°C to frozen storage. The frozen cold room is high quality such as high temperature resistant -60 to +80 celsius. Anti-sun photochemical effect, salt spray test 4days, painted inner interlayer thick 0.5mm, shear stiffness 0.1MPa, inner core materials fire resistance B2. Roof load 1KN/M2 water-proof 0.2Mpa, 10mm/min, 30min, endure. It is fire resistance according to B2 of GB 8624-1997. << buiding materials >> burning relative humidity 5% to 99%. Loading on floor 6KN/m2.

Particular Information:

Pictures

105cubic meter

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 0



Product Name

 Cold room, vegetables&fruits storage room, meat/butchery freezing room, dairy meat storage cooling room…

Temperature

 -20 degree

Machine Lord position(optional)

 Integration refrigerating unit/built in unit or Seperation unit

Cooling style(optional)

 Air cooling or water cooling

Scale board(optional)

 double side painting steel, double side stainless steel or double side aluminum board

Product Size

 6m*7m*2.5m

Product Volume

 105cubic meter

Unit power/horse number

 13HP

Body material thickness

 150mm

Single door size

 W800mm*H1800mm or big sliding door optional

Cold room with floor panel thickness

100mm

Compressor

 Valley wheel compressor

 Use scope

 Ta restaurant equipment, cake room equipment, coffee shop equipment, bakery equipment, liquor stores equipment, western food shop equipment, Chinese food shop equipment, equipment, condiment processing plant equipment brewery, fruit and vegetable processing plant equipment, frozen foods factory equipment, a meat processing equipment,

Optional function, Cold store door, air curtain machine, lighting:
  1.1 Sliding door, manual opening and closing.
 1.2 When door is opened, the air curtain machine and lights in cold storage can be running automatically.

Customize idea


Different size, different temperature for keeping different goods available to make…Low Running Costs


Details
Quick scan
Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 1

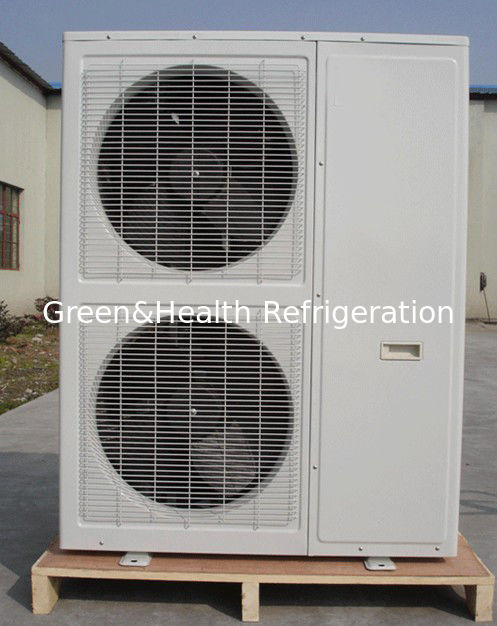

Condenser unit (America Copeland or Germany Famous Brand optional)

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 2

Fin type evaporate automatic defrost

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 3

emboss aluminum sheet on bottom optional

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 4

Panel 150mm for freezer and 100mm for chiller

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 5

Projectsshows

Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 6
Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door 7
