Fire - Proof Customized Cold Storage Room With Swing / Sliding Door

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door

Cold Storage Warehouses

Cool Storage Room

Place of Origin:

CHINA

Brand Name:

GREEN&HEALTH

Certification:

CE

Model Number:

GH-556

Contact Us

Request A Quote
Product Details
Material::
Colored Steel Or Stainless Steel
Temperature::
-30 To 25 Deg C
Power(W)::
Energy Save
Dimension(L*W*H)::
Customized Size
Warranty::
One Year
After-sales Service:
Online Support, Engineers Available To Service Machinery Oversea
Place Of Orign::
Guangzhou, China
Voltage/Frequency:
220v 380v / 50hz 60hz
Door Type:
Swing Door & Sliding Door Optional
Condition:
New
Fire-proof Grade:
B2
Panel Density:
42~43kg/m3
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2500 to $100000
Packaging Details
Paper case
Delivery Time
5 to 15days
Payment Terms
T/T, MoneyGram
Supply Ability
1000 set per month
Product Description

High quality Customized Cold Room for sales



Guangdong Green&health Intelligence Cold Chain Technology Co.,LTD
Located in Huadu District of Guangzhou City, covering an area of 50,000 square meters, our factory is a professional manufacturer with more than 10 years experience in the R&D of commercial refrigeration equipment. Including cold storage, open chiller, upright chiller, etc.
Our markets includes: Europe, Southeast Asia, the Middle East, Africa, Australia, the Americas and other continents and regions. So far our products have passed "CE", "ROHS", "SASO", "IES" and many other international certifications. We have professional design team and production line, provide our customers with good products and services.



Low-Temperature cold room is for meat, fish, chicken, beef, seafood, etc. It is equipped with 120/150mm

PU insulation panels, Famous Brand/Copeland compressor unit, swing/sliding door, keep your food maintain -18~-25℃.





Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 0 Panels      Thickness Temperature difference inside and outside cold room Suitable Temperature for cold room
75mm 40℃ -5~25℃
100mm 50℃ -15~25℃
120mm 60℃ -20~25℃
150mm 70℃ -25~25℃
200mm 90℃ -45~25℃

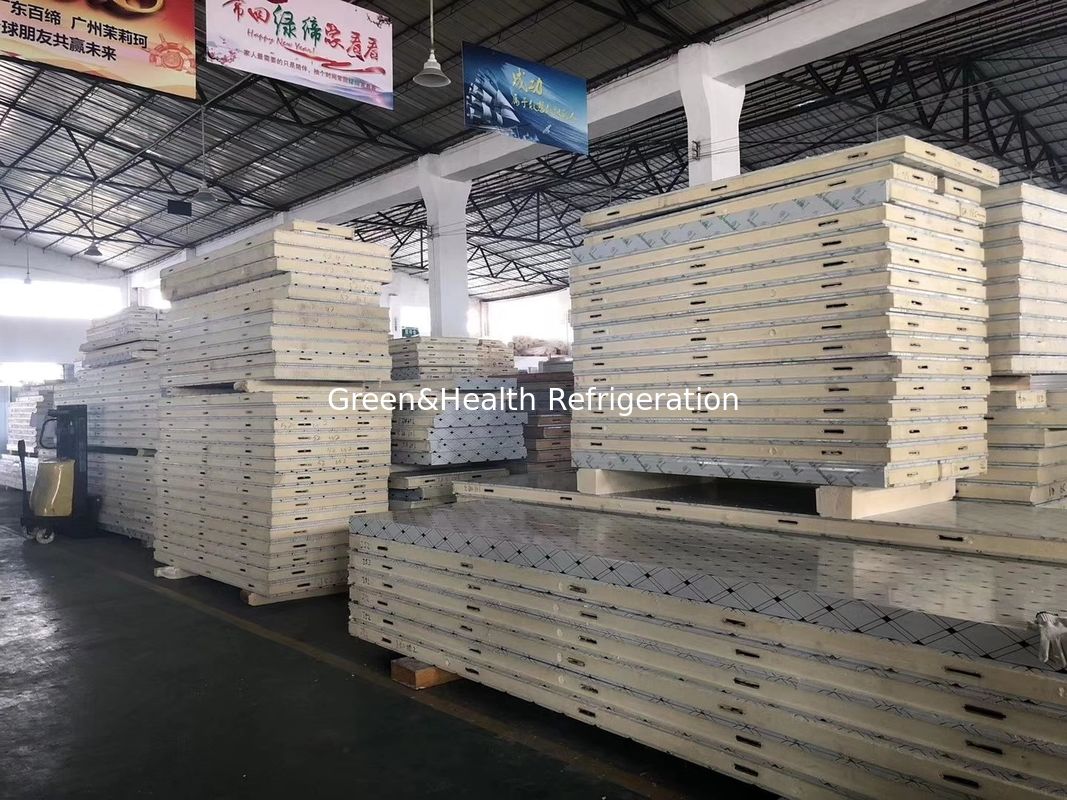

Used 100% polyurethane insulation panel, Our PU panel foam use polyurethane that reach B2 fireproof grade. The panels density 42M3. It is difficult to burn and without smoke. Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 1

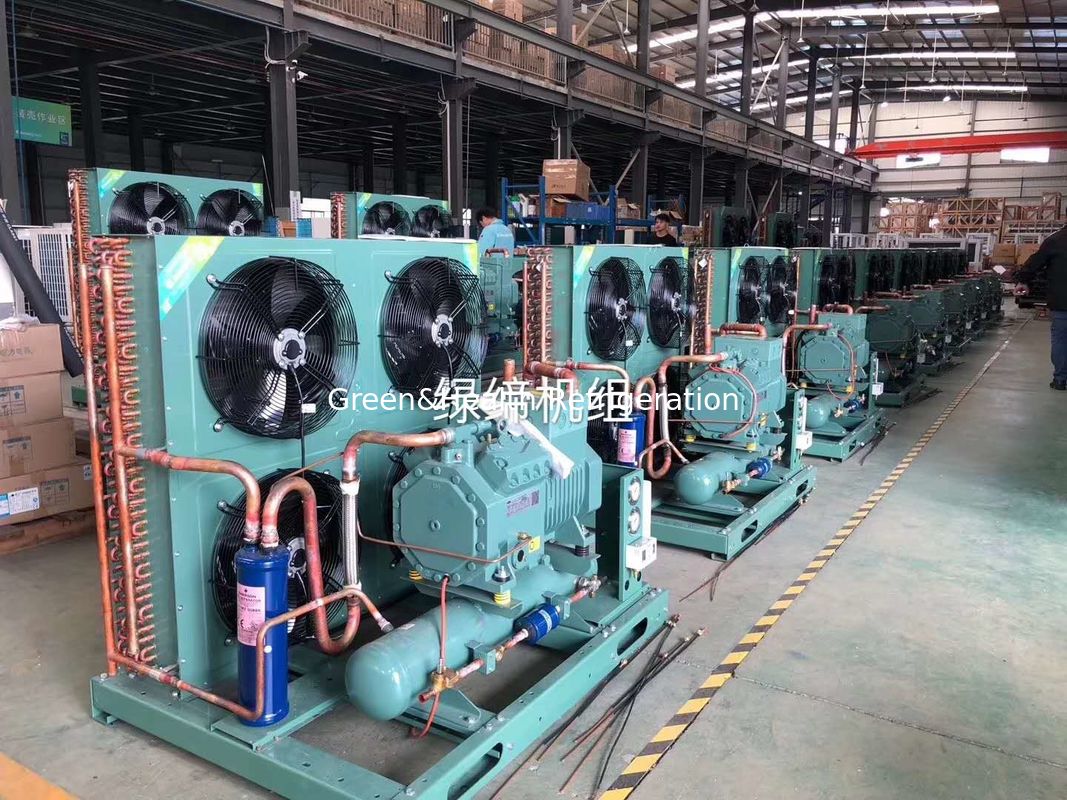

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 2 Brand of compressor: Germany Original Famous Brand compressor and American Original Copeland compressor. Best Quality, high efficiency, gas R404a, voltage/frequency:380v/50hz or 60hz, power:2hp/3hp/4hp/5hp...



15HP Copeland compressor unit, ensures high efficiency saving at least 20% annual energy loss. Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 3



Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 4

Standard Evaporator:
1)Kewely Brand

2)Cooling capacity big, reliable performance and service life





Good quality swing door:
0.6mm Color plate(standard)

Stainless steel handle with safety lock.

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 5



Good quality sliding door:
0.8mm Color plate(standard),deformation-proof guideway, strong aluminum hardware.
Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 6



Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 7

Color steel plate and stainless steel plate:

Provide high quality color steel plate and stainless steel plate. The plate can ensure the cold room lifetime more than 20years.



Anti-skid aluminum sheet for cold storage, more safety, economy and beauty.              Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 8





Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 9 Easy Option(Refrigeration&Defrost)
Intelligent Control
Double Screen Display
Direct view of the current temperature





Suitable temprerature range for different cold room/cold storage
Use nature/Suitabel for Tempreture range
Processing room 12-19℃
Cake, pastry, chemical material 0~5℃
Fruit, vegerable,dry food -5~+10℃
Ice storage room -5~-15℃
Fish, meat storage -18~-25℃
Deep freezer, low temperature storage, blast freezer -25℃~-40℃

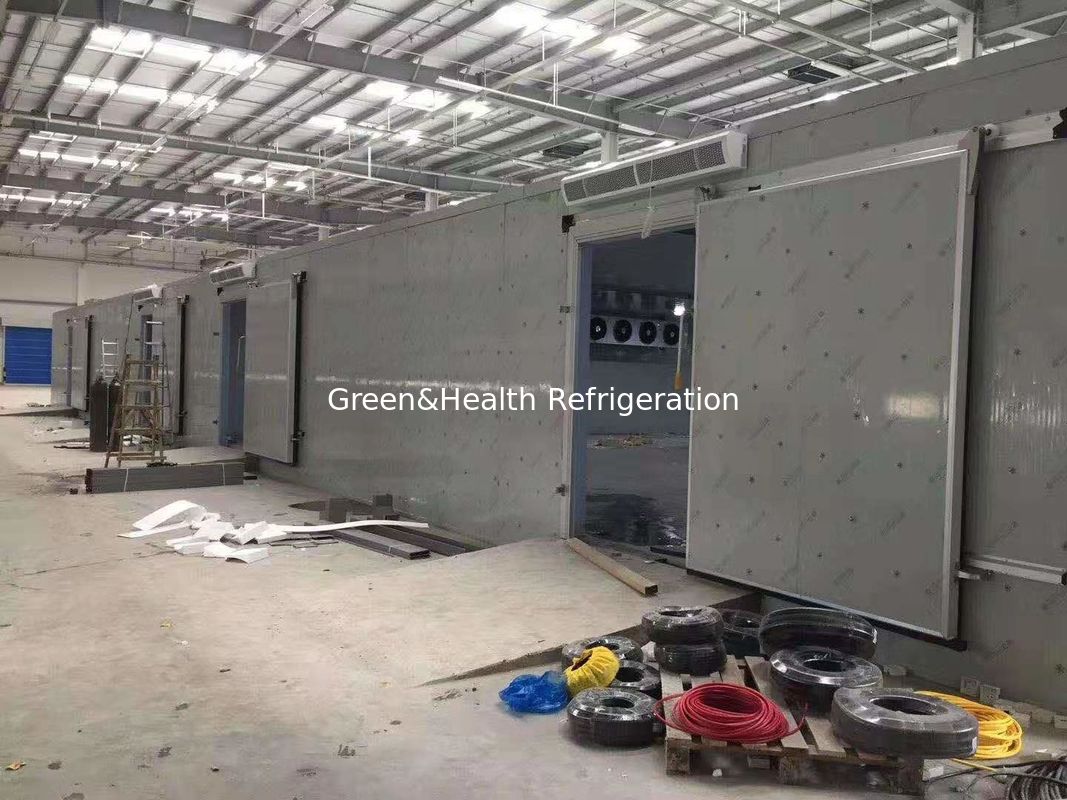

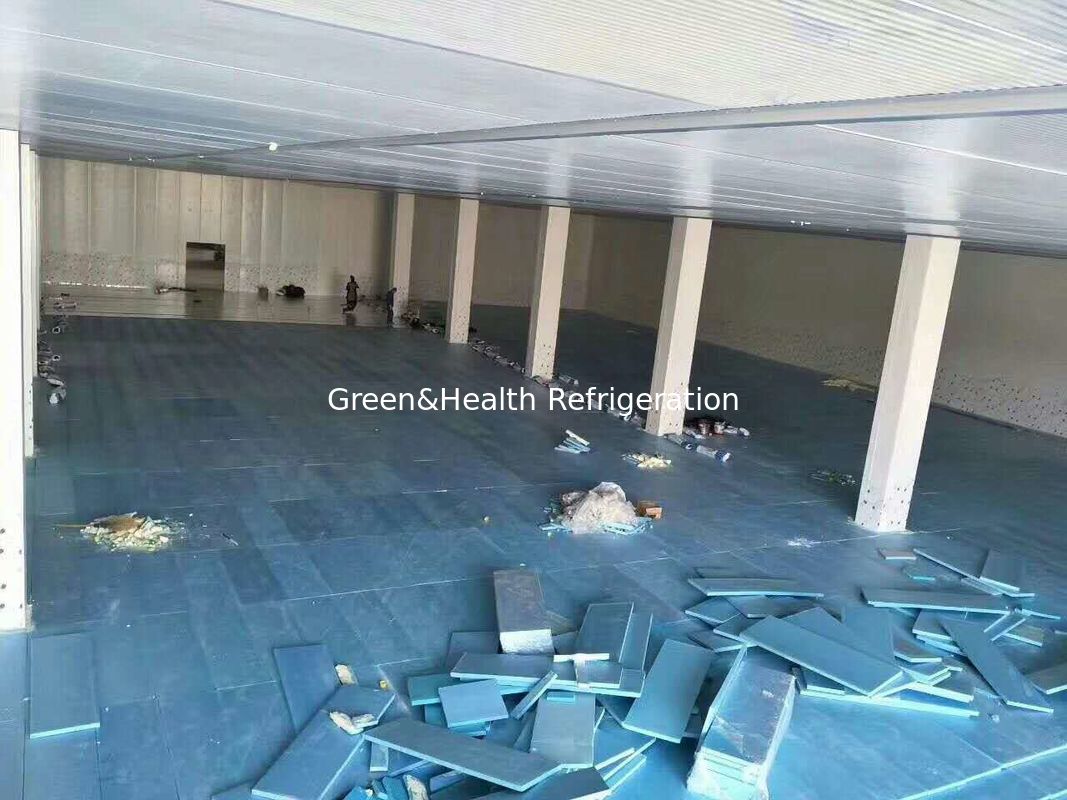

8meter heght big cold storage room warehouse

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 10

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 11

Fire - Proof Customized Cold Storage Room With Swing / Sliding Door 12



FAQ

Q:Are you manufacturer in China?
Yes, we have our own factory to produce PU panels and condensing unit, evaporators. We welcome you visit us.


Q:Is your PU panel firproof?
Yes, it is B2 grade.


Q: Is it difficult to build a cold room?
Very easy! you can build the cold room independently according to the construction drawings and as you know how to use an electric tool.


Q: Does your company supply overseas installation service?
Yes, if you need, we can send engineer for installation guide.


Q: How long is your delivery time?
About 7-15 days



Our Service

1.OEM Manufacturing welcome: Product, Package...
2. Factory visit...
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you at proper time, until you get the products.

If you have any questions about the problem, contact with us, we will offer the solve way for you.
