Fruit and Vegetable Cold Room Manufacturers Compressor Condenser Equipment
we Can delivery in 10~15days.
|
Composition of cold room
|
|||
|
Cold room panel
|
Surface material
|
Kraft paper, color steel plate, stainless steel plate, aluminum plate, galvanized sheet
|
|
|
Thickness of cold room panel
|
50mm,75mm,100mm,120mm,150mm,200mm
|
||
|
Width of cold room panel
|
≤960mm,≤1000mm
|
||
|
Length of cold room panel
|
≤11800mm
|
||
|
cold room door
|
Electric translational door ,Manual translation door,Half buried door ,Fully buried door, Free-style door,Clean door.
|
||
|
Condensing unit
|
Famous Brand, Copeland, Maneurop, Fusheng
|
||
|
Evaporator
|
KELTESS air-cooler
|
||
|
Other accessories
|
world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
|
||
| Cold storage room | ||||
| Classification | keep fresh | Cold storage | low temperature | frozen |
| temperature(℃) | 0 ~ 5 | -15 ~ -18 | -22 ~ -25 | -30 |
| Power(kw) | 80 | |||
| The capacity is according to the size of the cold storage room. | ||||
| Size | small | Small and medium | Large and medium | Large |
| Capacity(t) | Below 1000 | 1000-5000 | 5000-10000 | Above 10000 |
| We can customize the Refrigeration house according to your needs. | ||||
What is the Specification of our cold room?
| Product Name | Cold Storage Room Refrigeration Unit |
| Model No. | GHC-40 |
| Temprature | 0℃(32℉) ~ 15℃(59℉) / -25℃(-13℉) ~ -18℃(-0.4℉) / -40℃(-40℉) ~ -30℃(-22℉) |
| Cooling System | Air Cooling |
| Compressor | Copeland/ Famous Brand |
| Voltage | 220-380V / 50-60Hz |
| Refrigerant | R404a |
| Thickness | 50mm / 75mm / 100mm / 120mm / 150mm / 200mm |
| Installation | With drawing |
| Plug | Various Styles |
| OEM / ODM | Yes |
Easily assembled cold storage room polyurethane panel:
The joint of the PVC polyurethane insulation prefab cold storage room panel are made with tongue and groove edges and are locked together with cam lock design fasteners. The prefabrication cold room panel and other refrigeration system parts of the walk-in cooler and walk-in freezer chamber are shipped by knocked down uninstalled method to customers. This saves much freight cost for the modular cold-room transportation. When the unassembled cold room arrives, users can easily assemble and install the cold rooms by themselves. Or when users want to move the walk-in cooler or walk-in freezer to another place, the cold room panels of the mobile cold room chamber can be easily disassembled with a hex wrench and re-installed. Cold storage room installation & un-installation is just so simple!
| Thickness of polyurethane panel | Application temperature |
| 50mm | Temperature 5°C or above |
| 75mm | Temperature -5°C or above |
| 100mm | Temperature -18°C or above |
| 120mm | Temperature -25°C or above |
| 150mm | Temperature -35°C or above |
| 200mm | Temperature -45°C or above |
Notes: According to your requirements, the manufacturer can reasonably configure the materials that suit you, the size and thickness of the panels.

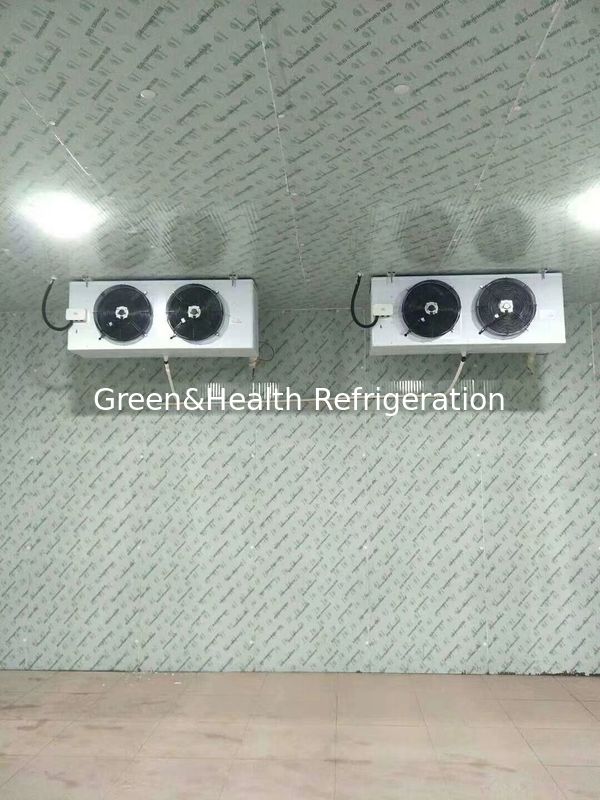

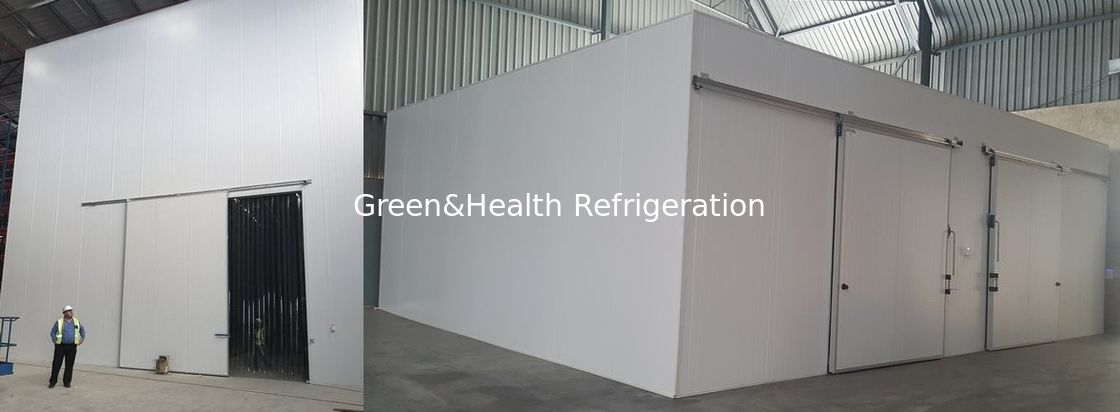

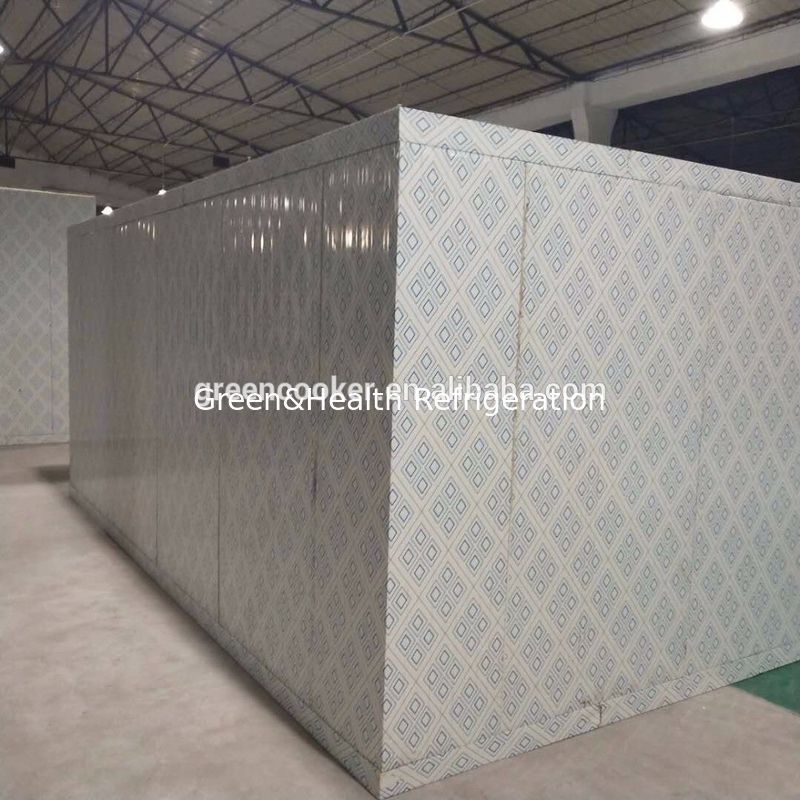

Cold storage room images:
