Fruit and Vegetable Cold Room Manufacturers Compressor Condenser Equipment
we Can delivery in 10~15days.
|
Knowledge of cold storage room |
|||
|
According to the capacity of cold storage classify
|
Large cold storage (10000 ton↑)(20000m3 )
|
||
|
Medium-sized cold storage (1000~10000 ton) (5000m3~20000m3)
|
|||
|
Small deep cold storage (1000 ton↓) (5000m3↓)
|
|||
|
According to temperature
|
high temperature cold storage (-2℃~12℃ )
|
controlled atmosphere(8℃~15℃)
|
Suitable for the preservation of vegetables, eggs, mushroom and other
|
|
Middle temperature cold storage (-10℃~-2℃)
|
controlled atmosphere(0℃~8℃)
|
Suitable for refrigerated products .
|
|
|
Low temperature cold storage(-20℃~-10℃)
|
controlled atmosphere(-2℃~0℃)
|
Suitable for frozen beef and mutton, fish, seafood ect.
|
|
|
Freeze cold
storage (-50℃~-20℃)
|
-- |
Suitable for frozen livestock, seafood and dairy products ect.
|
|
|
According to cold storage cooling mode
|
Cooling fan deep cold storage
|
||
|
Cold Exhaust pipe cold storage
|
|||
|
According to the use of structural materials and grades .
|
High-grade cold storage , low deep cold storage , Glass fiber reinforced plastic deep cold storage, color steel deep cold storage , stainless steel deep cold storage .
|
||
| Cold storage room | ||||
| Classification | keep fresh | Cold storage | low temperature | frozen |
| temperature(℃) | 0 ~ 5 | -15 ~ -18 | -22 ~ -25 | -30 |
| Power(kw) | 80 | |||
| The capacity is according to the size of the cold storage room. | ||||
| Size | small | Small and medium | Large and medium | Large |
| Capacity(t) | Below 1000 | 1000-5000 | 5000-10000 | Above 10000 |
| We can customize the Refrigeration house according to your needs. | ||||
What is the Specification of our cold room?
| Product Name | Cold Storage Room Refrigeration Unit |
| Model No. | GHC-40 |
| Temprature | 0℃(32℉) ~ 15℃(59℉) / -25℃(-13℉) ~ -18℃(-0.4℉) / -40℃(-40℉) ~ -30℃(-22℉) |
| Cooling System | Air Cooling |
| Compressor | Copeland/ Famous Brand |
| Voltage | 220-380V / 50-60Hz |
| Refrigerant | R404a |
| Thickness | 50mm / 75mm / 100mm / 120mm / 150mm / 200mm |
| Installation | With drawing |
| Plug | Various Styles |
| OEM / ODM | Yes |
Easily assembled cold storage room polyurethane panel:
The joint of the PVC polyurethane insulation prefab cold storage room panel are made with tongue and groove edges and are locked together with cam lock design fasteners. The prefabrication cold room panel and other refrigeration system parts of the walk-in cooler and walk-in freezer chamber are shipped by knocked down uninstalled method to customers. This saves much freight cost for the modular cold-room transportation. When the unassembled cold room arrives, users can easily assemble and install the cold rooms by themselves. Or when users want to move the walk-in cooler or walk-in freezer to another place, the cold room panels of the mobile cold room chamber can be easily disassembled with a hex wrench and re-installed. Cold storage room installation & un-installation is just so simple!
Panels Thickness:
| Thickness of polyurethane panel | Application temperature |
| 50mm | Temperature 5°C or above |
| 75mm | Temperature -5°C or above |
| 100mm | Temperature -18°C or above |
| 120mm | Temperature -25°C or above |
| 150mm | Temperature -35°C or above |
| 200mm | Temperature -45°C or above |
Notes: According to your requirements, the manufacturer can reasonably configure the materials that suit you, the size and thickness of the panels.
1. Refrigeration system:

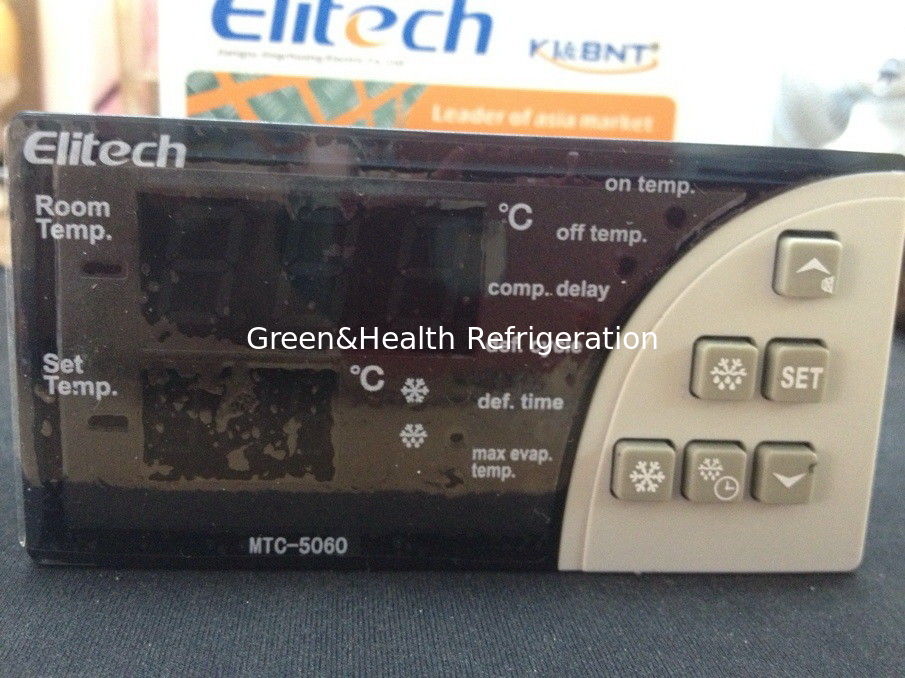

2. Electric controlling system:

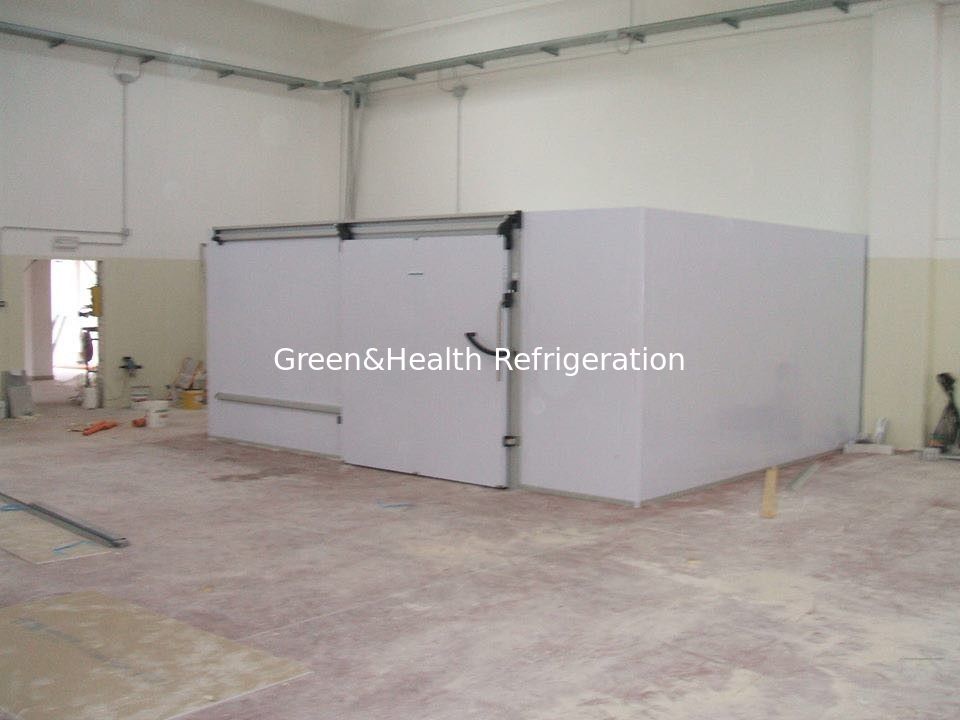

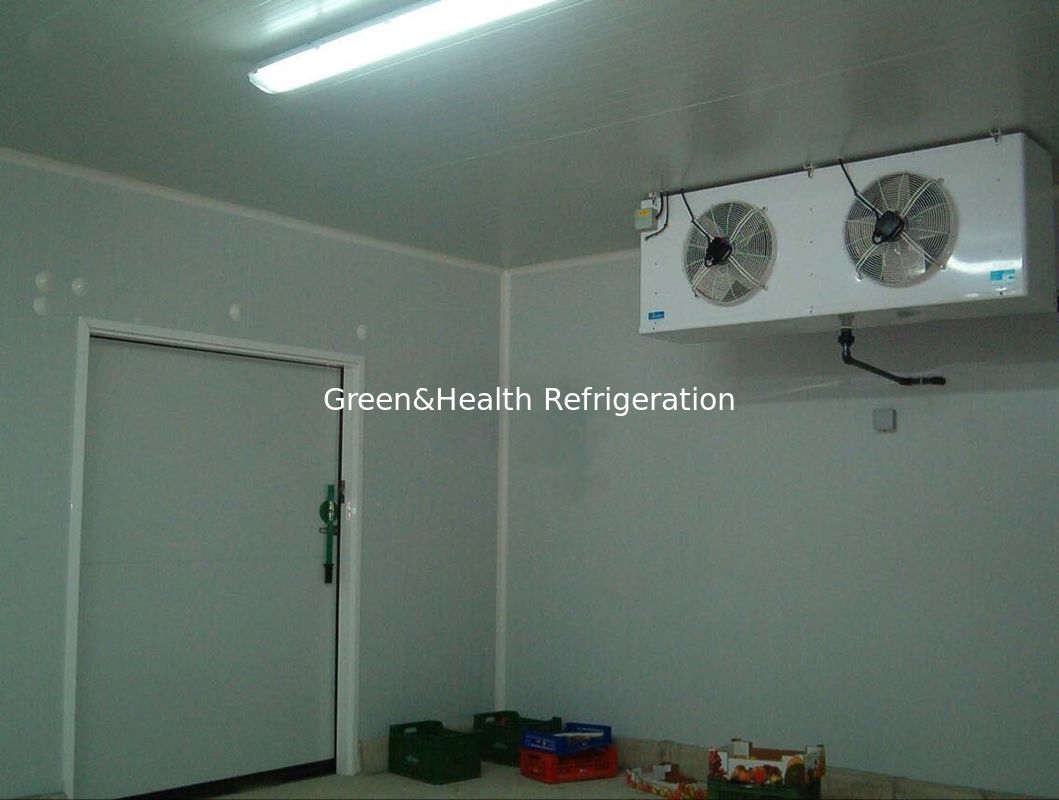

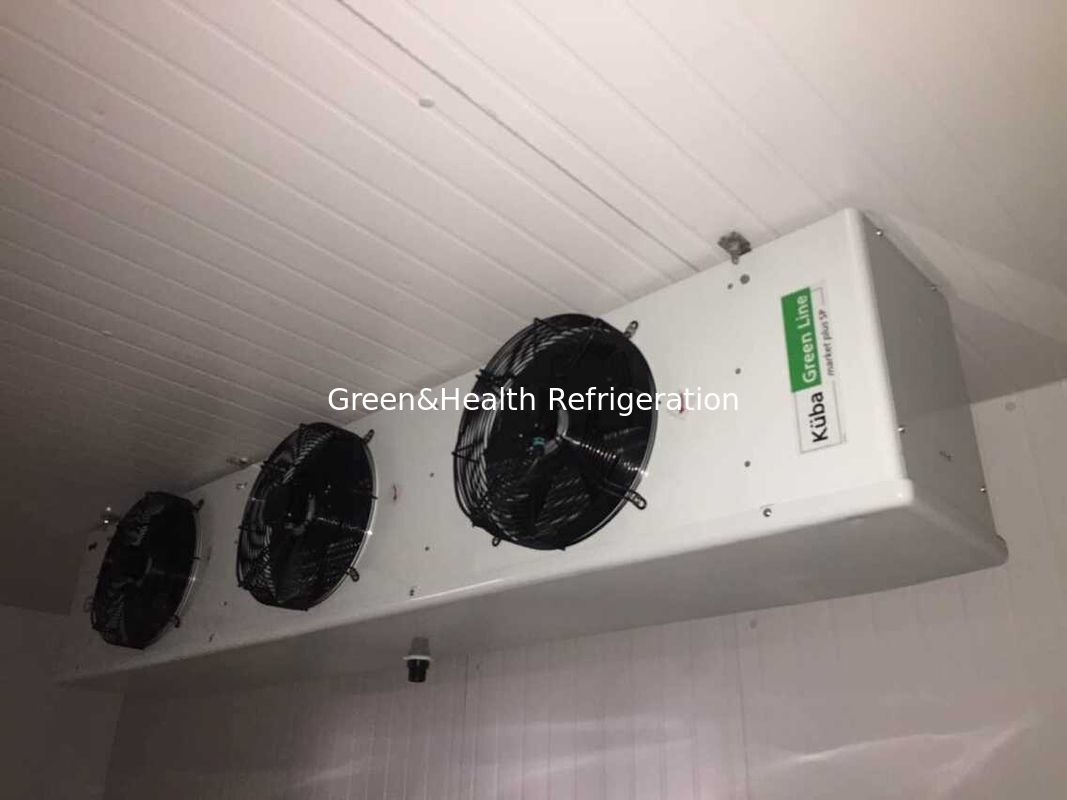

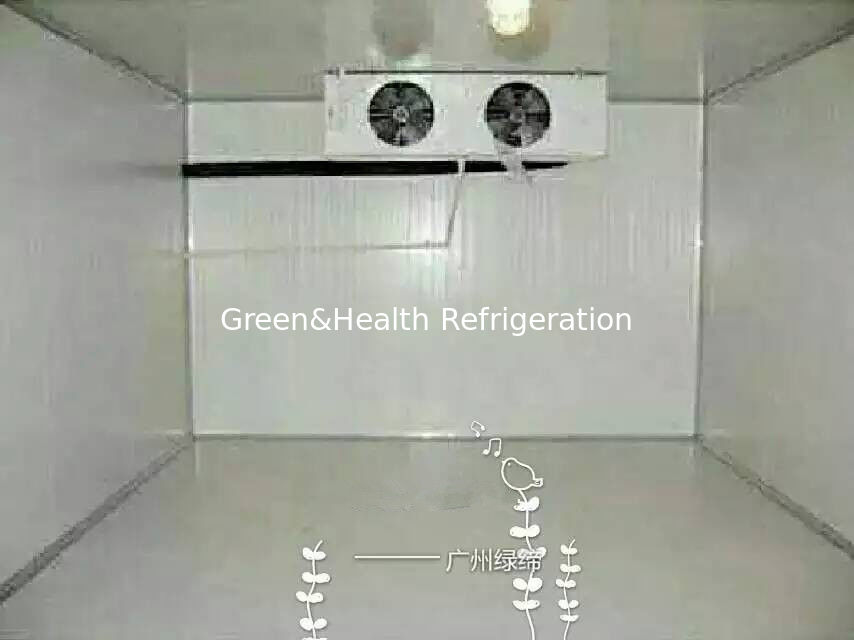

Cold storage room images:
