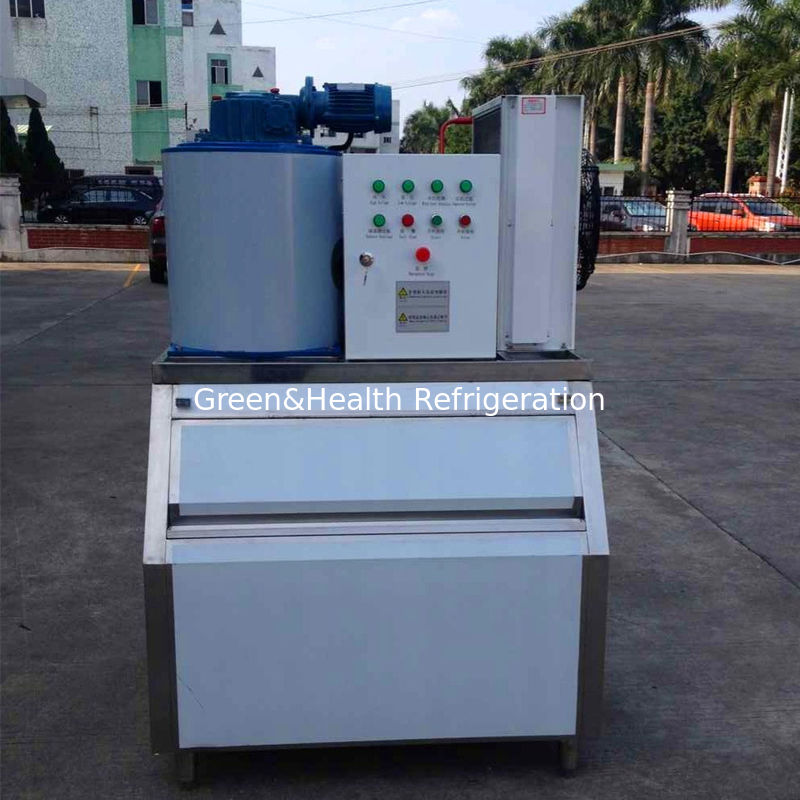

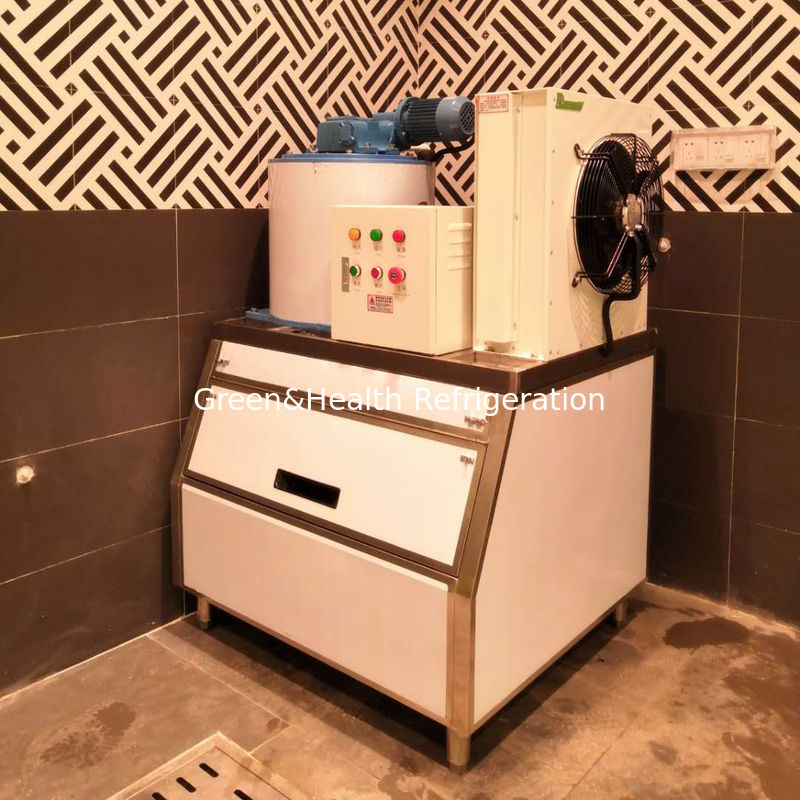

1 Ton Air Cooling Fishery Salt Flake Ice Maker R404A Refrigerant

Green&Health 1 ton Air Cooling Commercial Fishery Salt Flake Ice Maker

Ice flake evaporator advantages

1. Fast ice forming & falling speed, ice begins within 1 to 2 minutes.

2. All water supply line are made of stainless steel, high sanitary condition;

3. Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;

4. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, compression strength test, etc.

5. Using imported refrigeration accessories;

6. More sufficient evaporation area and better performance with dry style evaporation way;

7. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.

8. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.

9. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.

10. Be made of low-temperature pressure vessel special materials and passed precision processing;

Features of Flake ice system

1. Stability and reliability, long use life.
2. Energy-efficient and cost saving
3. Excellent fast cooling super cold, dry, crisp, subcooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. User-friendly design, which is very convenient for operator. The intellectualized historical failure record function and guidance o f troubleshooting makes easier and simple operation and maintenance. The running time setting function convenient operation

Specification

Compressor Brand: Danfoss / Famous Brand / Hanbell; Refrigerant: R404A;
Power Supply: Voltage 220V/50/60Hz 380V/3P/50/60Hz
Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-20℃.

Air cooling /Water cooling mode.
Expansion valve:Danfoss
Ice capacity:200kgs to 30Tons/24h,different capacity models for choose
Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.

Application:

Food / Fishery /Meat Processing,Medical Facilities,Supermarket,Environmental Engineering, Fresh Preservation,

1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.
2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.
4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.
5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

tags:Flake ice maker;Salt Flake Ice Maker
