Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station

Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station

  • Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station
  • Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station
  • Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station
  • Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station
Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station
Product Details:
Place of Origin: China
Brand Name: Greenhealth
Certification: CE,ROHS
Model Number: customize
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden frame
Delivery Time: 20days
Payment Terms: Ex works
Supply Ability: 100PCS/week
Contact Now
Detailed Product Description
Temperature: 0~10℃/0~-18℃/-25℃ Material: Coated Steel Or Stainless Steel
Cooling System: Fan Cooling Compressor: Copeland/Famous Brand
Door: Swing Door/Sliding Optional Warranty: 1 Year
Voltage: 220V/380V Dimension(l*w*h): According To Customer Demand
Refrigerant: R404A Usage: Meat,Food,Fish,etc
Product Name: Cold Storage / Cold Room Panel Thickness: 120,100,150
Control System: Electric Controlling Box
High Light:

Cold Storage Chamber

,

Cold Storage Warehouses

Meat Vegetable Solar Power Customized Size Modular Cold Rooms





Application:



Place:supermarket,hotel, farm ,warehouse,logistic station etc.

Food:seafood,meat,vegetable,fruit,dairy,drink,bakerymaterial etc.fresh-keeping or frozen for storage





Specification:



1.refrigeration system: Compressor, Condenser, evaporator, Refrigerant.condensing unit: Famous Brand, Copeland etc.

2.Electric control box,light, switch, expansion valve and other accessories for cool room system.

--Solar system cold room are available as well

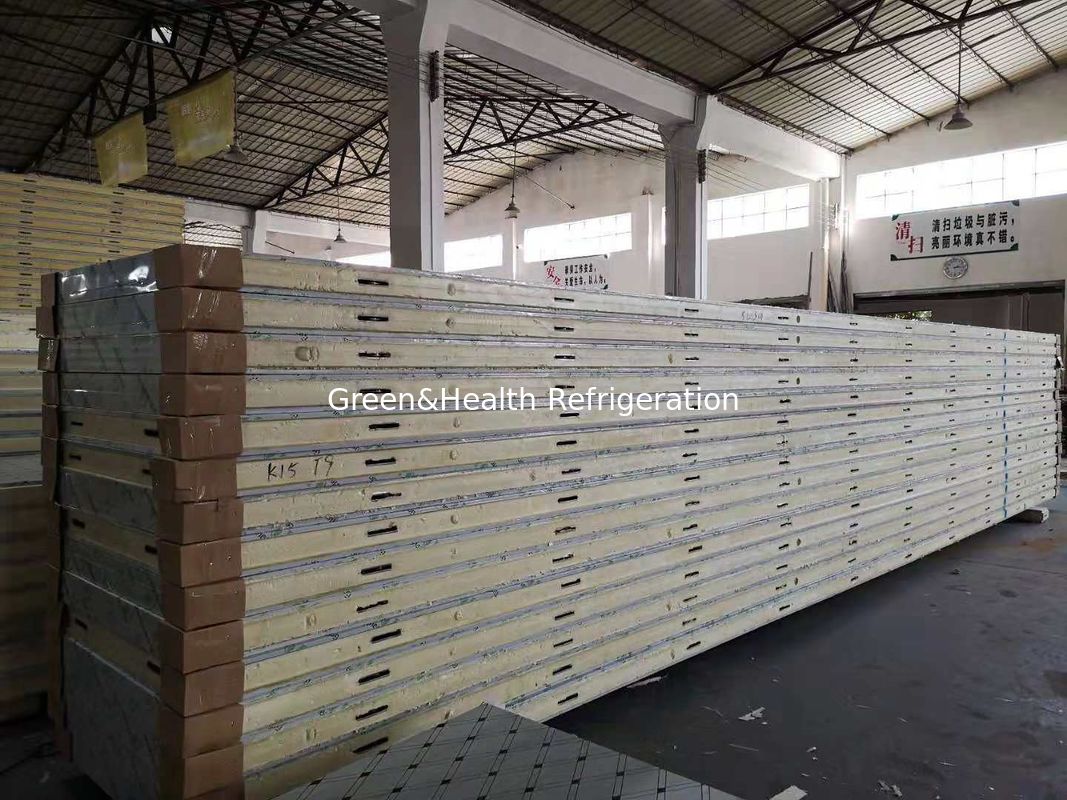

3.Insulation panel:use 100%polyurethane insulation panel, density about 38~46kg/m3,with gasket,with flame retardant, panel thickness:100mm~200mm, standard width of panel is 980mm





Thickness of cold storage panel Application temperature
50mm Temperature 5 or above
75mm Temperature 0 or above
100mm Temperature -5~-20 or above
120mm Temperature -15~--25 or above
150mm Temperature -18~-45 or above
200mm Temperature -30~-60 or above



Cold storage room



Green&Health refrigeration is specialized in designing, manufacturing, installing and maintaining cold room refrigerator freezer project over 10 years experience, and our product export to many countries with first tech, high quality, good reputation, favourable price.



OEM is available for cold room in room size,temperature,door size,body material

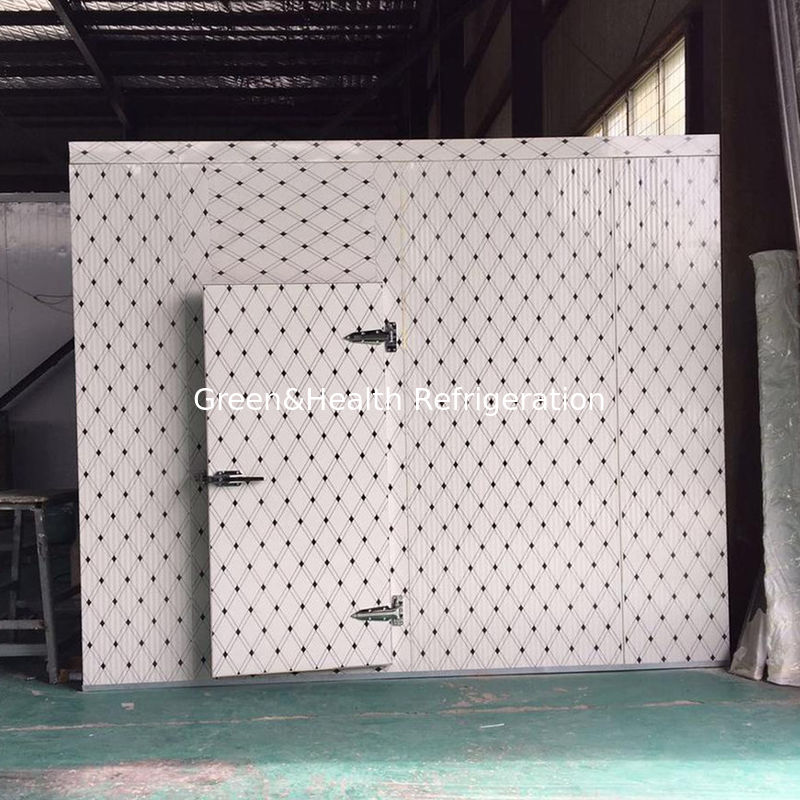

Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station 0

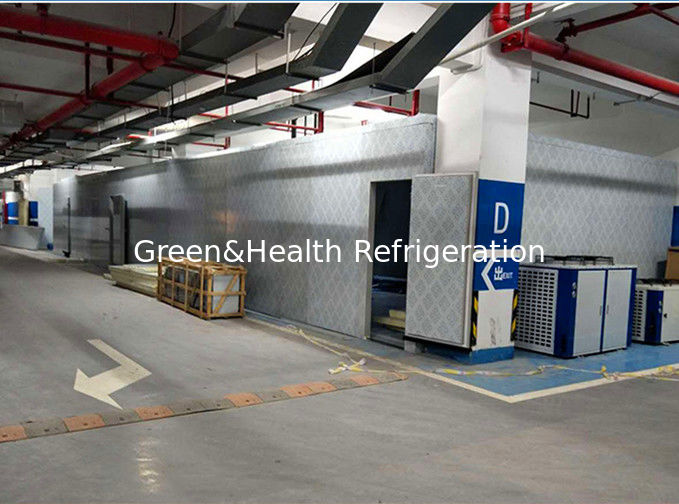

Cold room project for reference

Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station 1Solar Power Modular Cold Rooms For Farm , Warehouse , Logistic Station 2



Modular Cold Rooms;Meat cold room,vegetable cold room
