Place of Origin:
Guangzhou,China
Brand Name:
Green&Health
Certification:
CE
Model Number:
CR-
Contact Us
Size Customized Walk-in Cooler/Freezer Painted Steel/Stainless Steel Material for Vegetable Fruit Meat
Features:
1.Copeland/Famous Brand Compressor.
2.High-thread series of low-temperature DL evaporator
3.Danfoss high-end expansion valve. (Series expansion valve fot freezer, capillary cut for cooler)
4.Full computer control system (automatic control).
5.Apan Saginomiya/ Shangheng solenoid valve (a set of solenoid valve has two units for high temperature unit: running - cream filling; Freezing Unit has an addition of liquid spray).
6.Rotor with 3 sets of high-blower.
7.LG electrical components.
8.Emerson dry filter, pressure relay protection, the protection of high-temperature compressor temperature
control (temperature liquid spray for freezer).
9.Cooper piping tube + frozen oil + cooling of the refrigerant 404A +silver eletrode + Insulation.
Condensate water processor.Packing+carton box/wood box+certification
10.The doors of the cold room have safe lock which is help to open them from inside
The price is our weapon,quality is our life.To save the cost of investment and operating costs for our client,12
which is the goul that we always work for.For the better quality,We continue to innovate.
Panel thickness we can provide 50mm/75mm/100mm/120mm/150mm/200mm for option,
but most popular thickness is 100mm.Different temperature need different pane thickness.
Temperature we can make it 2~8℃,-18℃,-35℃ and others.
Specification
1. Cold Room: Suitable temperature 0℃ (High Temperature)
①Boay material thick: 75mm, door: W0.8*H1.8m
②Copeland/Famous Brand compressor
| Cube m³/Dimension | Unit power/horse power |
| 10 (2m*2m*2m) | 1.5HP |
| 20 (3m*2.7m*2.5m) | 2HP |
| 30 (4m*3m*2.5m) | 2HP |
| 40 (4m*4m*2.5m) | 3HP |
| 50 (5m*4m*2.5m) | 4HP |
| 60 (6m*4m*2.5m) | 4HP |
| 70 (5.6m*5m*2.5m) | 5HP |
| 80 (6.4*5m*2.5m) | 6HP |
| 90 (6m*6m*2.5m) | 6HP |
| 100 (5m*8m*2.5m) | 7HP |
2. Frozen Room: Suitable temperature -18℃ (Middle low Temperature)
①Boay material thick: 100mm, door: W0.8*H1.8m
②Copeland/Famous Brand compressor
| Cube m³/Dimension | Unit power/horse power |
| 10 (2m*2m*2m) | 1.5HP |
| 20 (3m*2.7m*2.5m) | 2HP |
| 30 (4m*3m*2.5m) | 4HP |
| 40 (4m*4m*2.5m) | 5HP |
| 50 (5m*4m*2.5m) | 6HP |
| 60 (6m*4m*2.5m) | 7HP |
| 70 (5.6m*5m*2.5m) | 8HP |
| 80 (6.4*5m*2.5m) | 9HP |
| 90 (6m*6m*2.5m) | 10HP |
| 100 (5m*8m*2.5m) | 11HP |
3. Quick-freezer, ultra low, temperature -30℃
①Boay material thick: 150-200mm, Size can customize for you
Details:
 |

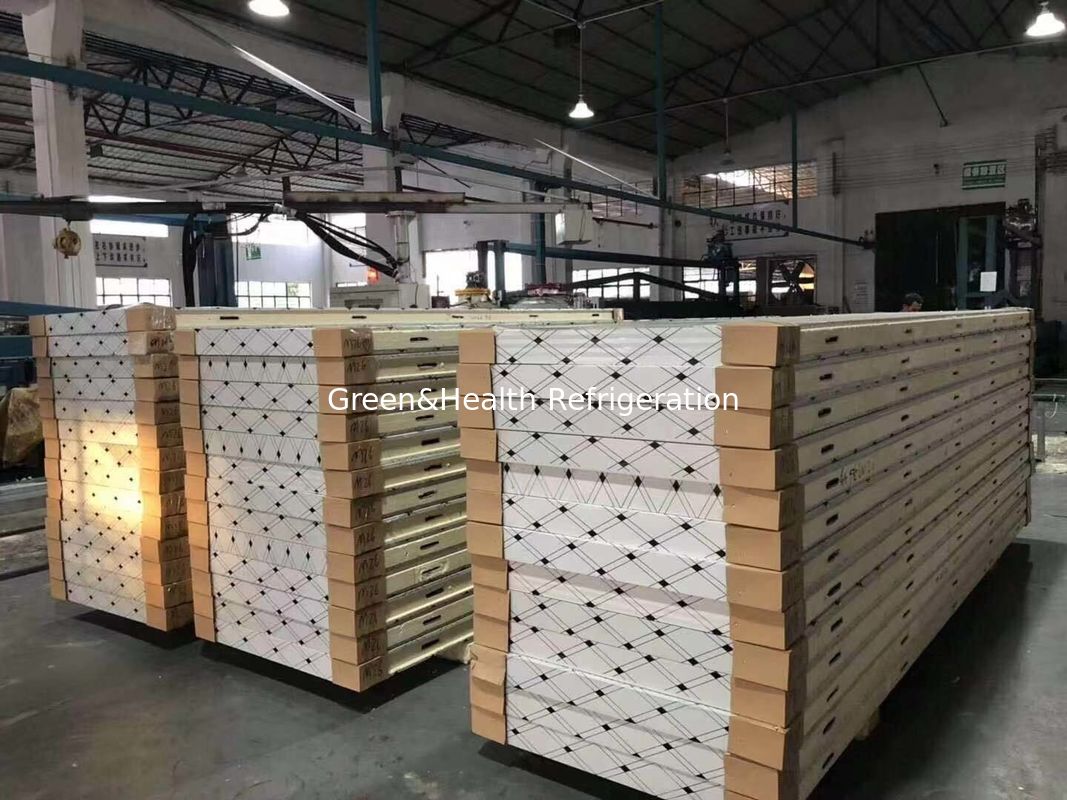

Cold Room Panels 1. PU Panels for wall, ceiling and floor 1)Density: 43KGS 2)Cam Lock design 3)Fire resistance According to B2 of GB 8624-1997 4)Packing with Bubble film |
| Cooling Machine 1) American Copeland/Famous Brand refrigeration unit 2)Horse power factory standard 3)Power supply: 220v/380v, 50hz/60hz 4)Air cooled condenser 5)Refrigerant: R404a |
|
|
Air Cooler
|
|
Accessories: Hardware, manual stabilizer, expansion valve, tem-balance window, insulation copper piping, moisture-proof cold light, digital temperature control system and so on |
|
