Height 2 Meter Multideck Open Chiller R404a Customized Color

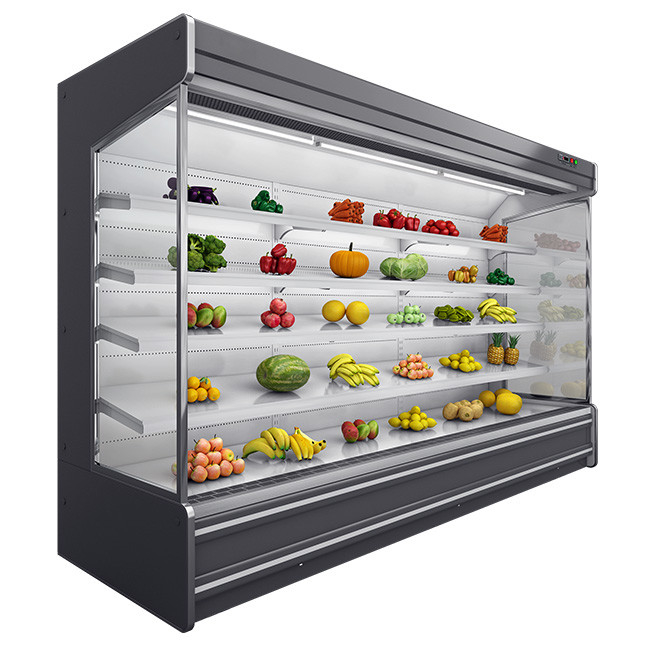

GreenHealth GHF-20R 2.0 m Remote Multideck Open Chiller

GHF-20R is a 2.0 m remote supermarket open chiller with a 2050 mm cabinet height. It is an air-curtain wall display for fruit, vegetables, dairy and drinks. Customers take goods from the open front. It is not a freezer, not a walk-in cold room, and not a glass-door upright cabinet.

This page is for GHF-20R:
• Length × depth × height: 2000 × 950 × 2050 mm
• Display area: 2.5 m²
• Rated power: 2700 W
• Working temperature: 2–8°C
• Setting range on the page field: 0–10°C
• Refrigerant: R404A
• System: remote condensing unit
• Color: custom painted steel
• Certification: CE, RoHS

Same remote series
• GHF-15R: 1500 × 950 × 2050 mm, 1.9 m², 1800 W
• GHF-20R: 2000 × 950 × 2050 mm, 2.5 m², 2700 W
• GHF-25R: 2500 × 950 × 2050 mm, 3.2 m², 2700 W
• GHF-30R: 3000 × 950 × 2050 mm, 3.9 m², 2700 W
• GHF-N: custom length, same 950 × 2050 mm section

What it displays
• Fruit and vegetables
• Milk, yogurt and other dairy
• Bottled and canned drinks
• Packaged fresh food on supermarket wall lines

What it does not do
• Does not hold -18°C frozen food
• Does not replace a backroom walk-in cold room
• Does not use a plug-in compressor inside this GHF-20R remote cabinet

Why stores use GHF-20R
1. Open front air curtain lets shoppers see and take fruit, vegetables and drinks without opening a door.
2. Cabinet height is 2050 mm, so the 2.0 m bay works as a full-height supermarket wall display.
3. Back-blow air curtain is designed to keep 2–8°C more even across the shelves.
4. Enlarged evaporator is used for faster pull-down after restocking.
5. Night curtain closes after hours to cut cold loss.
6. Remote unit keeps the compressor off the sales floor, which is quieter at the aisle.
7. Color can be matched to the store: white, black, grey or other painted finishes.
8. Compressor options include Danfoss, Secop, Embraco, Copeland.

Order terms
Manufacturer: Guangdong Green&Health Intelligence Cold Chain Technology Co., Ltd., Guangzhou, China.
MOQ: 1 piece.
Lead time: 20 days after color and unit confirmation.
Packing: wooden packing.
Payment: T/T, L/C or Western Union.
Warranty: 12 months after delivery.
OEM: store color and logo available.


Product Specification:



Product details

Company Profit:

Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professional commercial refrigerators and freezers manufacturer, which locates in Guangzhou, China. We mainly produces large commercial freezers, such as display fridge, cabinet freezer, refrigerator counter, ice cream display freezer and ice maker, which are widely used in shopping malls, supermarkets, shops, hotels and other commercial places. All of our products get CE, RoSH approval.

Certification:

Exhibition:

FAQ:

Q1. Are you a factory or a trading company?
A. We are the manufacturer, Guangdong Green&Health Intelligence Cold Chain Technology Co., Ltd., in Guangzhou, China.

Q2. What is the model on this page?
A. GHF-20R. It is a 2.0 m remote multideck open chiller, 2000 × 950 × 2050 mm, 2.5 m² display area, 2700 W, 2–8°C.

Q3. Is “2 meter height” the cabinet height or the length?
A. Both are about 2 m. Length is 2000 mm. Height is 2050 mm. GHF-20R is named for the 2.0 m bay length.

Q4. Is this a freezer or a cold room?
A. Neither. It is an open air-curtain chiller for 2–8°C display. It is not a -18°C freezer and not a walk-in storage room.

Q5. Remote or plug-in?
A. GHF-20R is remote. The condensing unit sits outside the cabinet. Plug-in open chillers are a different series.

Q6. What food can I display?
A. Fruit, vegetables, dairy and drinks. Do not load ice cream or frozen meat.

Q7. Can you change the color?
A. Yes. Painted steel can be made white, black, grey or to a store color sample.

Q8. Which refrigerant and compressor do you use?
A. R404A as standard on this page. Compressor options are Danfoss, Secop, Embraco, Copeland.

Q9. Does it have a night curtain?
A. Yes. Close the night curtain after business hours to reduce cold loss.

Q10. What is the MOQ, lead time and warranty?
A. MOQ 1 piece. Lead time 20 days. Payment by T/T, L/C or Western Union. Warranty 12 months after delivery. Certification: CE and RoHS.
