Heavy-Duty Bottom-Mount Upright Display Freezer for High-Traffic Retail Applications

The Green&Health Bottom-Mount Upright Glass Door Display Freezer is engineered for supermarkets, convenience stores, frozen food retailers, and chain stores that require reliable low-temperature merchandising and energy-efficient operation.

The bottom-mounted refrigeration system improves heat dissipation efficiency by drawing cooler air from floor level, reducing compressor operating temperatures and extending component lifespan. Compared with top-mounted systems, bottom-mounted designs also simplify maintenance access and improve ergonomic servicing for commercial operators.

The cabinet utilizes high-density polyurethane insulation, tempered heated glass doors, LED merchandising lighting, and digital temperature controls to maintain stable storage temperatures while maximizing product visibility. Fan-assisted air circulation ensures uniform cooling throughout every shelf, helping preserve frozen foods, ice cream, meat products, and ready-to-sell packaged items.

2026 Commercial Refrigeration Energy Efficiency Standards

Latest Energy Efficiency Trends for Commercial Display Freezers

The global commercial refrigeration market is increasingly adopting:

• R290 environmentally friendly refrigerants

• EC energy-saving fan motors

• Triple-pane Low-E heated glass doors

• Variable-speed inverter compressors

• Smart digital energy management systems

Under the current European Ecodesign and direct-sales refrigeration requirements (EN 23953 testing standards), modern glass-door display freezers are commonly classified from Energy Class A to G based on their Energy Efficiency Index (EEI). Many standard commercial display freezers on the market remain in Class C–E, while premium energy-saving models can achieve Class B or above.

Typical Energy Performance Comparison

Reference energy data from comparable commercial glass-door freezer products show daily energy consumption ranging from approximately 8.7–12.5 kWh/day depending on cabinet size and configuration.

Performance Under 35°C High Ambient Temperatures

Designed for Demanding Commercial Environments

Many tropical and Middle Eastern markets require refrigeration equipment capable of maintaining stable performance under ambient temperatures above 35°C.

High-Temperature Performance Characteristics

Under test conditions of:

• Ambient Temperature: 35°C

• Relative Humidity: 70%

• Full Product Load

• Continuous Retail Operation

The bottom-mounted refrigeration architecture offers several advantages:

Better Compressor Cooling

Since floor-level air temperatures are generally lower than ceiling temperatures inside retail stores, bottom-mounted compressors often operate under reduced thermal stress, improving long-term reliability.

Faster Heat Dissipation

Proper ventilation around the condensing unit helps maintain efficient heat exchange, reducing excessive compressor cycling.

Stable Cabinet Temperature Recovery

Fan-assisted airflow enables rapid temperature recovery after frequent door openings, which is particularly important in supermarkets and convenience stores with heavy customer traffic.

Many commercial display freezers designed for food retail applications are tested for operation up to 35–38°C ambient conditions, while certain heavy-duty models are rated for even higher climate classes.

Recommended Operating Environment

Maintaining proper ventilation is essential for preserving refrigeration efficiency in hot climates.

How to Reduce Energy Consumption During Daily Operation

1. Avoid Frequent Door Openings

Repeated door openings introduce warm air into the cabinet and significantly increase compressor runtime.

Recommended practices:

• Organize products in advance

• Refill shelves during off-peak periods

• Train staff to minimize unnecessary door openings

2. Keep Proper Product Loading Levels

Best practice:

• Leave sufficient airflow space between products

• Avoid blocking evaporator outlets

• Do not overload shelves beyond the recommended limit

Uniform airflow improves cooling efficiency and reduces energy waste.

3. Clean Condenser Coils Regularly

Dust accumulation can increase power consumption by 10–30%.

Recommended maintenance schedule:

Regular cleaning improves heat-transfer efficiency and extends compressor lifespan.

4. Maintain Correct Temperature Settings

Recommended storage temperatures:

Overcooling products below their required temperatures unnecessarily increases operating costs.

5. Ensure Adequate Installation Clearance

Recommended installation requirements:

• Rear clearance: at least 150 mm

• Top clearance: at least 300 mm

• Avoid installation near ovens or direct sunlight

• Maintain proper store ventilation

Commercial refrigeration manufacturers commonly specify adequate airflow clearances to ensure rated energy performance and compressor reliability.

Why Retailers Choose Bottom-Mount Display Freezers

Advantages Over Conventional Top-Mount Models

• Easier compressor maintenance access

• Improved heat dissipation efficiency

• Lower operating temperatures for refrigeration components

• Better ergonomics for service technicians

• More effective performance in high-temperature retail environments

• Lower long-term maintenance costs

• Energy-saving operation with modern insulation and digital controls

Product Description

Main Features:

1.Aluminum alloy door frame, sturdy and durable.

2. It uses dynamic cooling, which removes ice and evaporates water on its own.improved operational and maintenance performance.
3. Large capacity storage, five levels of multipurpose shelves per door (which may include separators), and a more elegant product display.
4. A well-known compressor package using R290 refrigerant offers reduced noise pollution and improved cooling performance.
5. Universal wheels with brakes that can support over 200 kg on each castor and revolve in a 360-degree circle. Smooth for effortless cleaning or transportation.
6. By using an integrated foam box made of ultra-porous polyurethane, you can save unnecessary costs by improving heat preservation and energy savings.
7. An advanced digital thermostat that displays the temperature, defrosts on a regular basis, and offers greater peace of mind

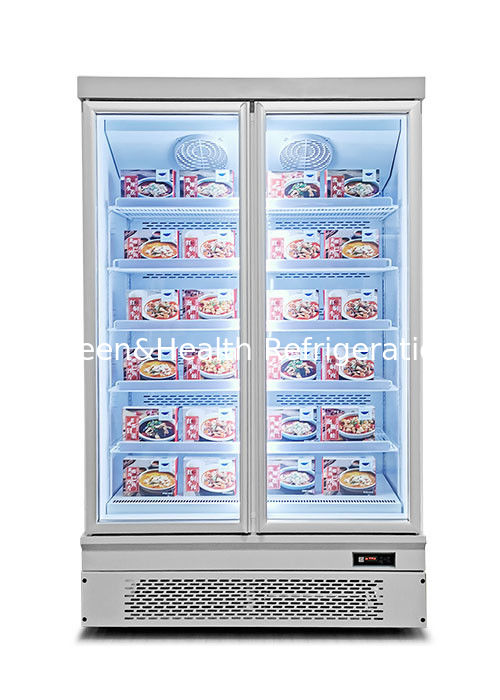

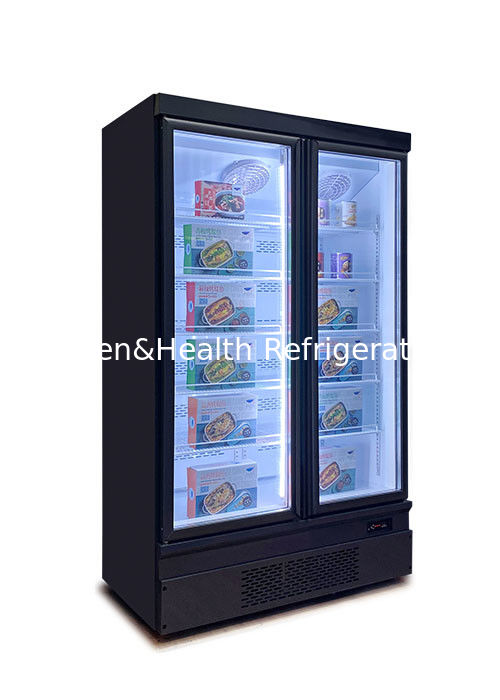

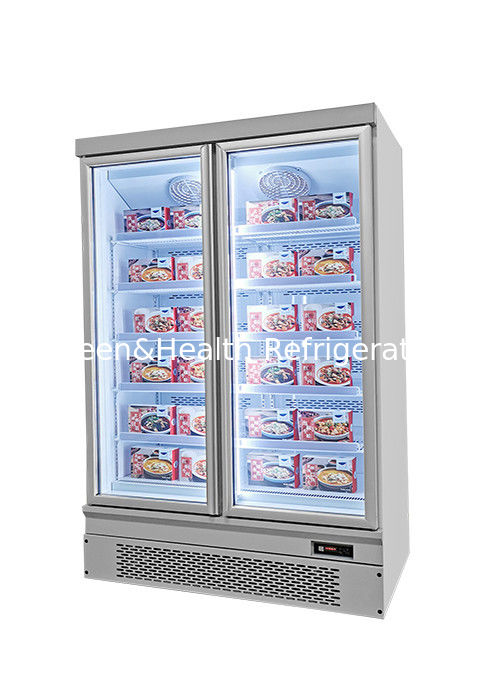

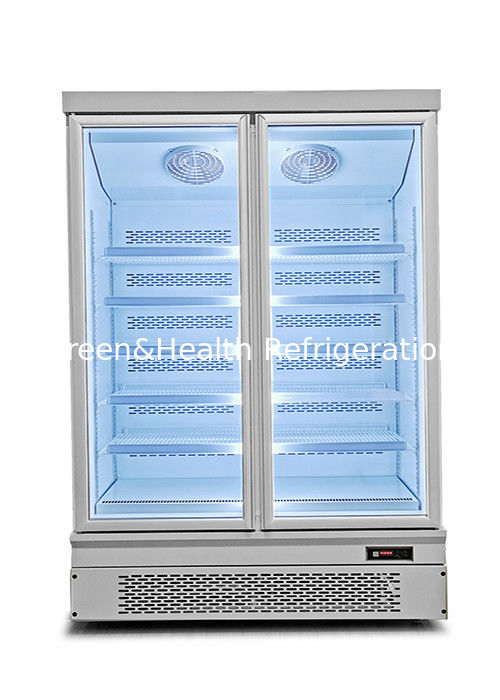

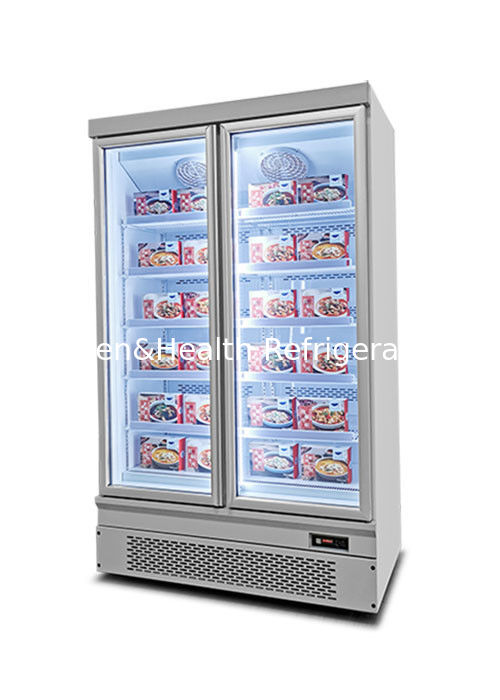

Product Images

Company Information
Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professionalcommercial refrigerators and freezers manufacturer, which locates in Guangzhou, China.We mainly produces large commercial freezers, such as display fridge, cabinet freezerrefrigerator counter, ice cream display freezer and ice maker, which are widely used inshopping malls, supermarkets, shops, hotels and other commercial places.All of our products get CE, RoSH approval.
