Designed for High-Traffic Retail Refrigeration Applications
The Green&Health GHF Series Multideck Open Chiller is engineered for supermarkets, convenience stores, fresh food retailers, and chain stores that require maximum product visibility combined with reliable temperature performance.
Equipped with a high-efficiency forced-air refrigeration system, the cabinet maintains a stable temperature range of 2°C to 8°C while ensuring uniform airflow distribution across all shelves. The asymmetric vortex air curtain technology minimizes cold air loss and improves temperature consistency throughout the display area. The integrated microprocessor controller continuously monitors cabinet conditions and automatically adjusts cooling output for optimum performance.
The unit incorporates an energy-saving night curtain, automatic defrosting system, and imported compressor technology to reduce operating costs while maintaining long-term reliability. Designed for continuous commercial operation, the GHF Series helps retailers improve product presentation, increase impulse purchases, and reduce refrigeration-related maintenance expenses.
Typical Applications
- Supermarkets
- Convenience Stores
- Fresh Produce Displays
- Dairy Product Merchandising
- Beverage Display Areas
- Chain Retail Stores
- Hotel Food Markets
- Airport Retail Shops
Energy Consumption Comparison (2026 Retail Refrigeration Benchmark)
Energy Efficiency Performance Comparison
| Performance Item |
Green&Health GHF Multideck |
Conventional Open Chiller |
| Cooling Method |
Dynamic Air Curtain Cooling |
Standard Fan Cooling |
| Night Curtain |
Standard |
Optional / None |
| Temperature Stability |
±1°C |
±2~3°C |
| Compressor Type |
Imported Brand Compressor |
Generic Compressor |
| Defrost System |
Automatic Smart Defrost |
Timer Defrost |
| Estimated Annual Energy Consumption* |
12-18% Lower |
Baseline |
| Cooling Recovery Speed |
Fast |
Moderate |
| Product Temperature Uniformity |
Excellent |
Average |
*Estimated under supermarket operation conditions with 12-14 hours daily customer traffic. Actual consumption depends on ambient temperature and operating conditions.
Why Energy Consumption Is Lower
Energy-Saving Night Curtain
Many supermarkets leave open chillers operating overnight.
The integrated pull-down night curtain significantly reduces cold air loss during non-business hours, helping lower compressor running time and electricity costs.
Intelligent Defrost Management
Traditional open chillers often run fixed defrost cycles, causing unnecessary energy consumption.
The automatic defrost system optimizes defrost frequency and reduces refrigeration interruptions.
High-Efficiency Air Curtain Design
The asymmetric vortex cold air curtain reduces the mixing of ambient warm air with refrigerated air, improving cooling retention and reducing compressor workload.
Common Industry Points & Solutions
1. Cold Air Loss in Open Display Cabinets
Open multideck chillers are convenient for customers but often suffer from excessive cold air leakage.
Green&Health Solution
The optimized air curtain circulation system creates a stable cold-air barrier at the cabinet front, reducing temperature fluctuations and maintaining product freshness.
2. High Electricity Bills
Retailers frequently complain that open chillers consume significantly more energy than glass-door refrigerators.
Green&Health Solution
- Imported high-efficiency compressor
- Energy-saving night curtain
- Intelligent defrost technology
- Optimized airflow management
These features help reduce unnecessary compressor operation and improve overall energy efficiency.
3. Uneven Product Temperature
Many conventional open chillers experience warmer temperatures on upper shelves and colder temperatures near the evaporator.
Green&Health Solution
The asymmetric vortex refrigeration circulation system distributes cold air more evenly across all display levels, improving temperature consistency and reducing product spoilage risk.
4. Frequent Defrost Maintenance
Manual defrosting increases labor costs and affects product presentation.
Green&Health Solution
The automatic defrost control system minimizes frost accumulation and reduces maintenance requirements, ensuring uninterrupted operation.
5. Compressor Failure in High Ambient Temperatures
Many retailers operate in regions where summer temperatures exceed 35°C.
Green&Health Solution
The cabinet utilizes imported compressors from brands such as SECOP, Copeland, providing reliable operation under demanding commercial conditions.
Why Choose the Green&Health Multideck Open Chiller?
- Imported Brand Compressor Technology
- Energy-Saving Night Curtain Design
- Automatic Smart Defrost System
- Uniform Air Curtain Refrigeration
- Large 1350L–1800L Display Capacity
- CE & RoHS Certified
- OEM & ODM Available
- Suitable for 24/7 Commercial Operation
Product description
1. Sturdy galvanized rear plane with non-toxic high-carbon wire dip
2. Stainless steel door hinge with durability and movable shelves
3. Easy to pull, ergonomic door handle made of aluminum alloy, automated return
4. Easy to use, precise, and intuitive microcomputer temperature control
5. Automatic glass door defrosting, energy and worry savings
6. The imported compressor has a long lifespan, consistent performance, and effective cooling.
7. The product has a stylish, sophisticated, and personalized appearance.
8. Comes with an energy-saving pull-out night curtain.
9. Make use of an automatic defrosting system, microcomputer temperature controller, and premium brand-name compressor.
10. Temperature uniformity and asymmetric vortex cold curtain air refrigeration cycle.
11. Customized to meet the needs of the client.
Specification
| Model No. |
Commodity Name |
Dimension(mm) |
Volume(L) |
Rated power(W) |
Temperature |
| GHF-15P |
multideck chiller |
1500*950*2010 |
1350 |
2700 |
2~8℃ |
| GHF-20P |
multideck chiller |
2000*950*2010 |
1800 |
2700 |
2~8℃ |

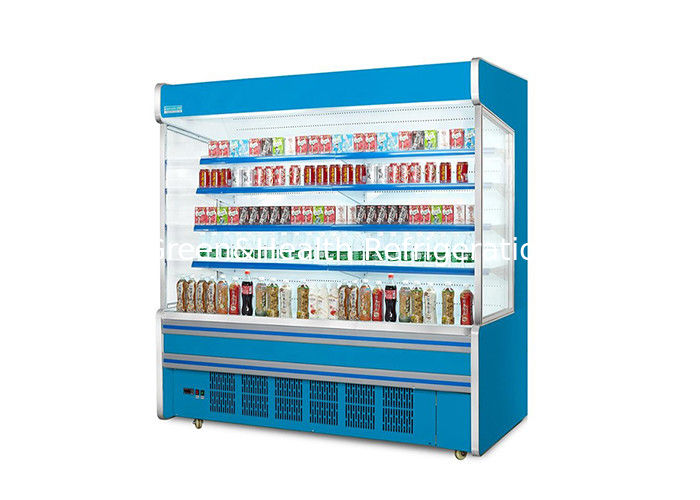

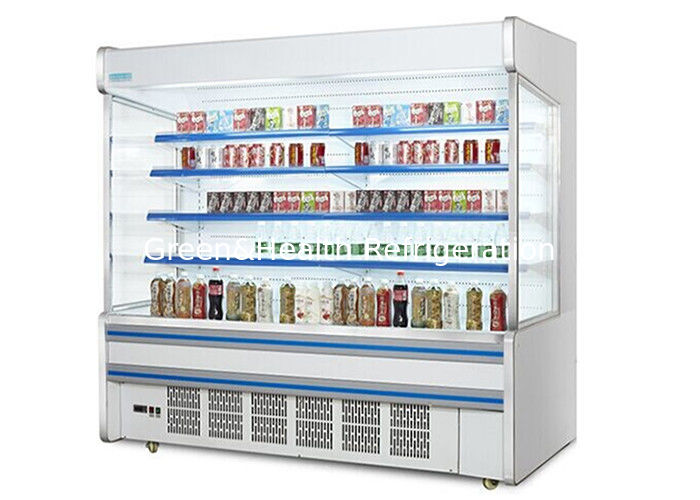

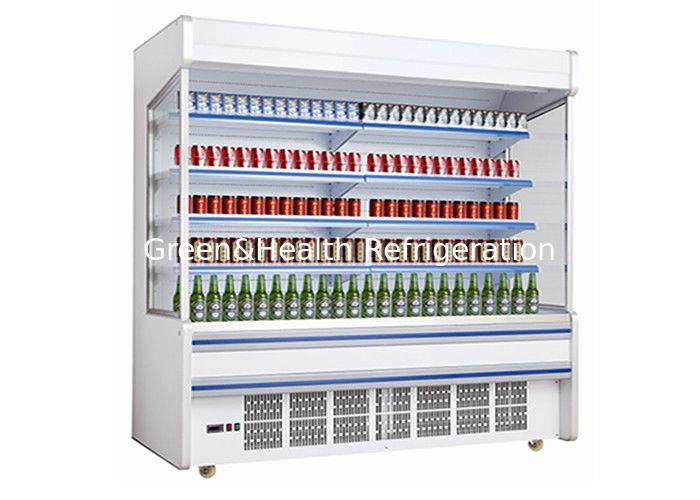

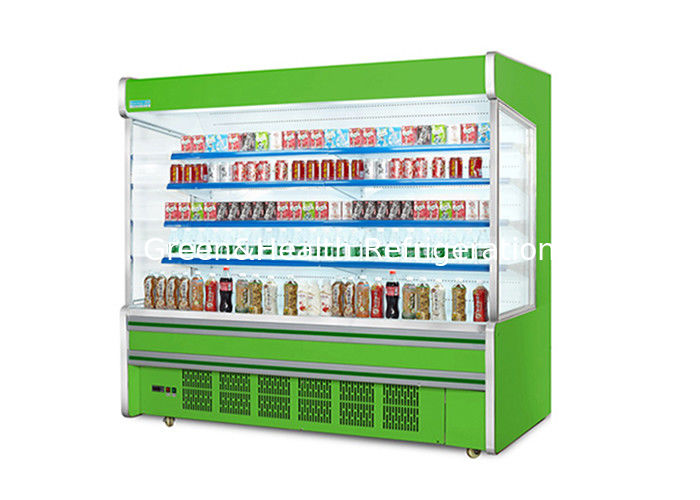

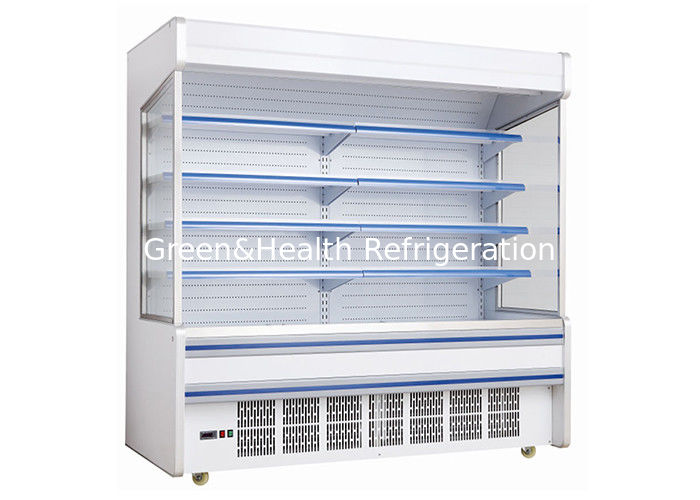

Product Pictures
Company Profit
Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professional commercial refrigerators and freezers manufacturer, which locates in Guangzhou, China. We mainly produces large commercial freezers, such as display fridge, cabinet freezer, refrigerator counter, ice cream display freezer and ice maker, which are widely used in shopping malls, supermarkets, shops, hotels and other commercial places. All of our products get CE, RoSH approval.
1 Rich experience
Our factory has more than ten years of manufacturing experience in the field of intelligent cold chain equipment production.
2 Excellent R&D ability
Our team has strong ability in research and development of production.we have excellent engineers and technical team to produce different customized products, which can well meet the various needs of customers.
3 High quality
Our equipment adopts imported brand compressors and various high-quality components, so that we can produce high quality products with long life.
4 Strict production standards
Our production base is officially certified, with advanced production lines and well-trained staff.We implement strict standard inspection procedures to provide perfect products so that ensure your interests.
5 Well after-sales service
We also provide impeccable warranty and after-sales service to solve your concerns.
Cerfitication
Package&Shipping
F A Q
1. Are you Trading Company or Factory/Manufacturer?
We are factory/manufacturer, locates in Guangzhou City, Guangdong Province, China.
2. What is your MOQ?
Our MOQ is 1 piece.
3. What compressor do you use?
We usually use SECOP, COPELAND,brand compressor etc.
4. what is your delivery time?
We usually prepare goods ready to ship in 15-25days.
5. Can i put my logo ?
Sure, of course. we accept OEM and ODM.
6. How about Warranty?
We provide 1 year (365 days) warranty on whole equipment(both accessories and compressor).
7. What is your payment term?
Payment term is 30% deposit upon confirm order, 70% balance before shipment. You can pay through Telex Transfer or Credit Card.
