Mini Ice Cream Glass Door Display Upright Freezer Gelato / Shape Barrel Fridge
Product Description
* Using high efficiency Compressor brand Danfoss from Denmark.
* First Class other components,Filter,Evaporator Fan,Condenser Fan.
* Special design for evaporating the water inside the cabinet. no need the extra pipe for water drain.
* Effective
* Humanistic fair-shaped cabinet design and the coated glass reached the perfect display effect.
* Double layer cavity coated glass eliminates the atomization and keep the insulation effect.
* Automatic defrosting patent technique has the advantage of small temperature difference and fast speed which helps to protect the compressor.
* Double lines of air flues control the temperature equally.
* Whole thick environment-friendly foaming materials keep the temperature perfectly.
* Adpoting the UFI approved environmental-friendly refrigerant R404a/R22a.
* Computer color-matching system can meet the different customers' characteristic requirement of colors. Brief Introduction of the display freezer: Originally the ice cream display freezer was introduced from Italy,very equal temperature inside the cabinet make the hard ice cream always keep good looking. we improved the design of the freezer as below:
* Adding the Deputy condenser to evaporate the water comes from the cabinet,no need the extra pipe for the water drain.
* Using Heater glass on the front,make better gelato display.
* It is assembled with the French Tecumseh compressor,Danfoss expansion valve,Italian Castel Magnetic valve and Dixell temperature indicating controller etc.the warranty period of the whole machine is 1year,the compressor with 3years.
Product specification
Product name | 10 Pans ice cream display freezer |
Model No. | WBQ-10 |
Dimension (w*d*h)mm |
1000*1050*1250mm |
Temperature control | Electronic-automation |
Temperature | -16~-22℃ |
Cooling model | Dynamic cooling |
Climate type | N |
Power | 110V/220V |
Frequency | 50HZ/60HZ |
Refrigerant | R22a/R404a |
Body | Stainless steel |
Delivery time | Within 40 days |
Payment | TT |
Packing | 20GP/40GP/40HQ |
BQL-8 | 8pans(Double row) | 860*1050*1200/1250mm | -16~-22 | Danfoss |
BQL-10 | 10pans(Double row) | 1000*1050*1200/1250mm | -16~-22 | Danfoss |
BQL-12 | 12pans(Double row) | 1190*1050*1200/1250mm | -16~-22 | Danfoss |
BQL-14 | 14pans(Double row) | 1380*1050*1200/1250mm | -16~-22 | Embraco |
BQL-16 | 16pans(Double row) | 1550*1050*1200/1250mm | -16~-22 | Embraco |
BQL-18 | 18pans(Double row) | 1730*1050*1200/1250mm | -16~-22 | Embraco |
BQL-20 | 20pans(Double row) | 1890*1050*1200/1250mm | -16~-22 | Embraco |
BQL-22 | 22pans(Double row) | 1956*1050*1200/1250mm | -16~-22 | Embraco |
BQL-24 | 24pans(Double row) | 2260*1050*1200/1250mm | -16~-22 | Embraco |

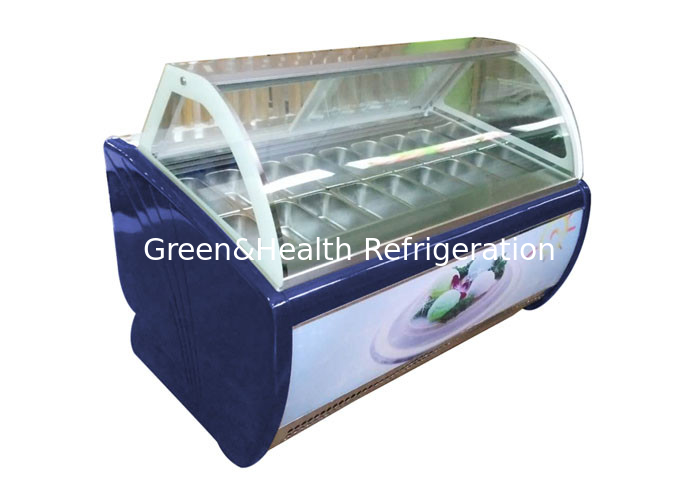

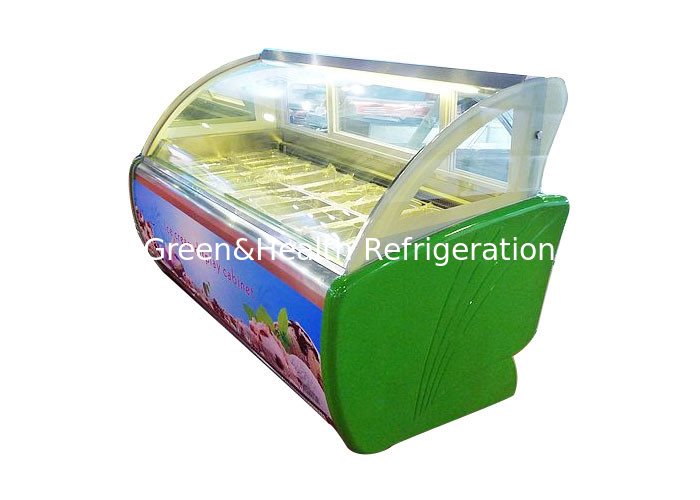

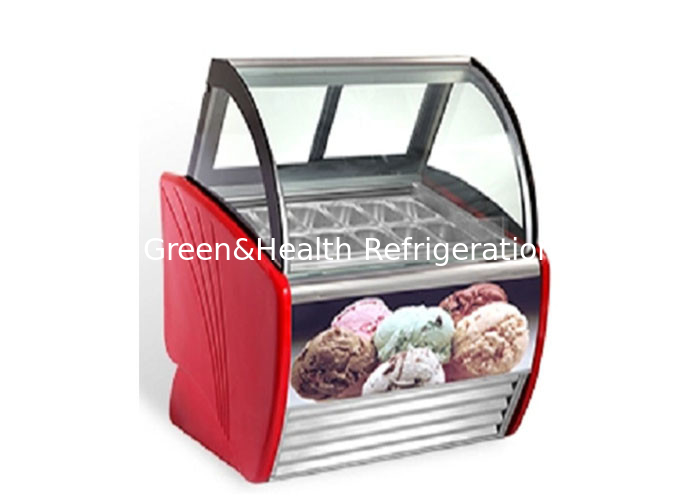

Product picture
Company Information
Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professional commercial refrigerators and freezers manufacturer, which locates in Guangzhou, China. We mainly produces large commercial freezers, such as display fridge, cabinet freezer, refrigerator counter, ice cream display freezer and ice maker, which are widely used in shopping malls, supermarkets, shops, hotels and other commercial places. All of our products get CE, RoSH approval.
