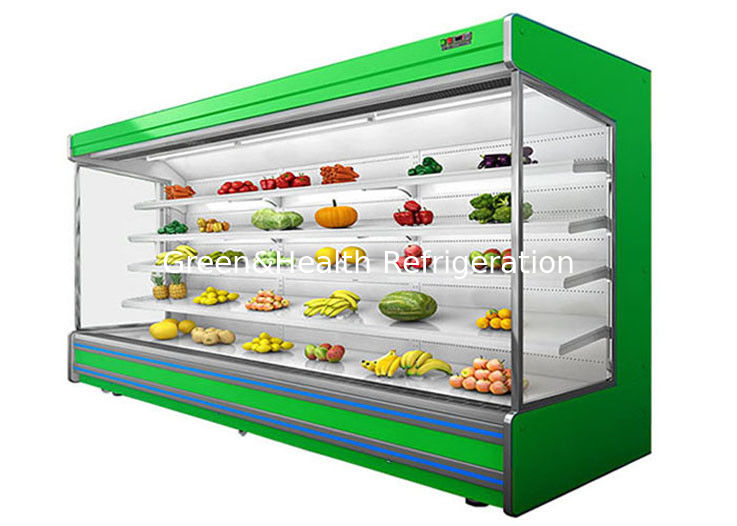

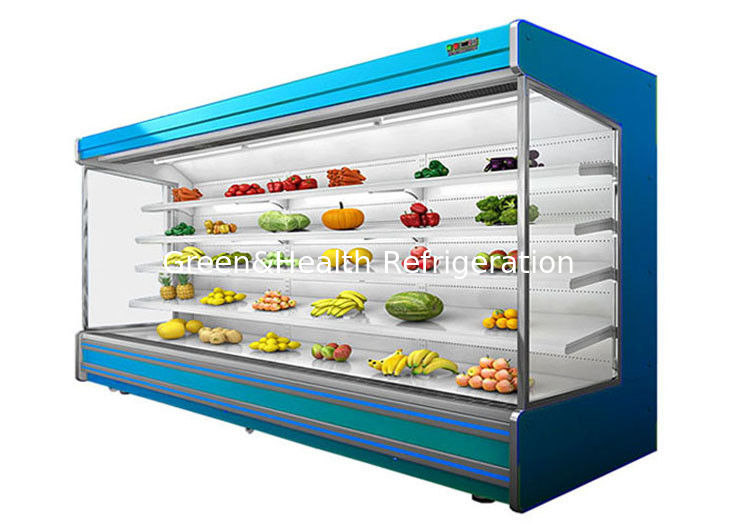

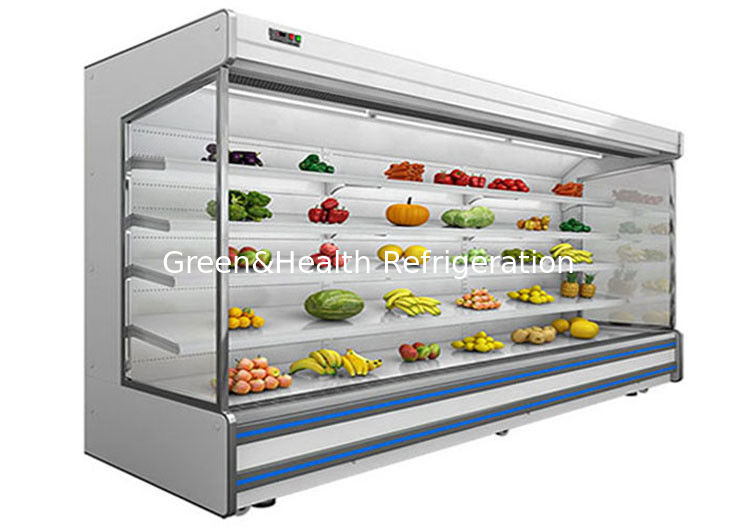

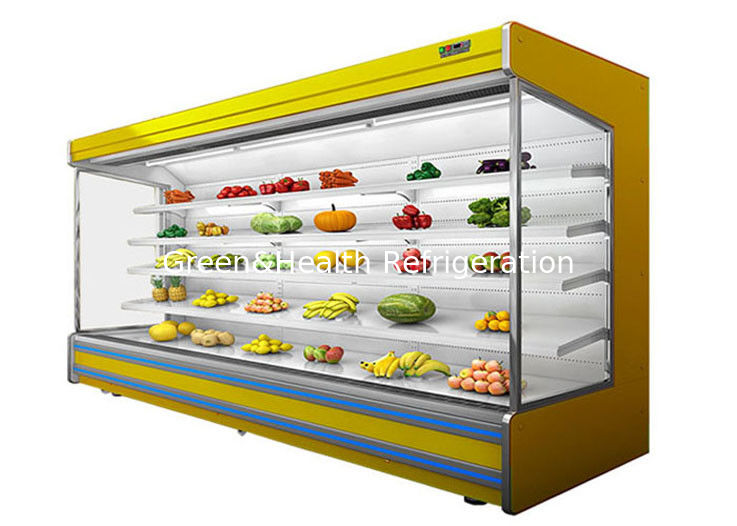

Large Capacity Multideck Open Chiller with Fan Cooling and Remote System for Fresh Produce Display

 Vegetable Open Air Multideck Chiller – Commercial Open Display Refrigerator for Fresh Produce

Green&Health GHF Series Large Capacity Open Multideck Air Curtain Chiller is a high-performance commercial refrigeration solution designed for supermarkets, hypermarkets, fresh markets, and retail malls. This open-front multideck display chiller excels at showcasing vegetables, fruits, juice, dairy, and other fresh produce with maximum visibility and easy customer access.

Key Professional Features (2026 Perspective):

• Advanced Air Curtain Technology: Maintains a stable cold air barrier for optimal product preservation at 2～8°C while allowing unrestricted grab-and-go access.
• High-Efficiency Cooling: Equipped with renowned compressors (Copeland/Danfoss options), pure copper tube aluminum fin evaporator/condenser, and fan-assisted cooling with automatic defrost. This delivers fast cooling, uniform temperature distribution, and reliable performance.
• Energy-Saving Design: High-density microporous foam insulation minimizes cold loss. Bright, energy-efficient LED lighting enhances product appeal. Night curtain option further reduces energy consumption during off-hours.
• Flexible Configurations: Available in 2m, 2.5m, and 3m lengths (custom N-meter combinations supported). Volumes range from ~2000L to 3000L+. Remote or plug-in systems available. Fully adjustable heavy-duty shelves (typically 4–5 levels) and easy-clean interior.
• Robust Construction: Durable build with customizable colors (white, green, blue, black, etc.), night blind/curtain, digital temperature display, and movable wheels for flexible store layout.

This multideck open chiller is ideal for high-traffic retail environments, boosting impulse sales through attractive, accessible fresh produce merchandising while supporting food safety and freshness standards.

Product Solutions

Open multideck air curtain chillers are popular for their customer-friendly design but face well-known operational challenges:

1. High Energy Consumption Open design leads to significant cold air spillage and ambient air infiltration, increasing electricity use compared to closed-door units. Solution: This GHF series uses optimized air curtain velocity, high-efficiency components, and thick insulation. Night curtains can further cut nighttime energy loss substantially.
2. Temperature Fluctuations & Product Spoilage Drafts from store AC, customer traffic, or poor placement can disrupt the air curtain, causing hot spots and reduced shelf life for sensitive produce like leafy greens or fruits.Solution: Stable fan-cooled system with automatic defrost and precise digital control helps maintain consistent 2–8°C. Proper store planning (avoid direct AC vents or doorways) is recommended.
3. Frequent Defrosting & Maintenance Humidity and open exposure lead to faster frost buildup and require regular cleaning. Solution: Automatic defrost cycle and easy-access design reduce labor. Copper-aluminum heat exchangers improve heat dissipation and reliability.
4. Sensitivity to Environment Performance drops in high ambient temperatures or high-humidity stores. Solution: Robust compressor options and high-density insulation provide better resilience. Remote systems can pair with efficient central refrigeration plants.

Product Test Data Comparison & 2026 Energy Efficiency Insights

Key Specifications (GHF Series Remote System Examples):

• Temperature: 2～8°C (ideal for fresh vegetables, fruits, and juice)
• Dimensions: 2000/2500/3000 × 950 × 2050 mm
• Power: Approx. 2700W (2m) to 3600W (3m)
• Volume: 1950–3000L+
• Cooling: Fan-assisted air curtain with auto defrost

2026 Energy Efficiency Context: In 2025–2026, global and regional standards (e.g., updates to ENERGY STAR, DOE, and international MEPS) continue pushing for lower energy consumption in commercial refrigeration. Open multideck cabinets typically consume more energy than closed models due to air curtain dynamics, but advanced designs with multi-layer or optimized air curtains can achieve 20–40% better efficiency.

Comparative Insights (Industry Benchmarks):

• Energy Use: Similar open multideck units often range 25–40+ kWh/day depending on size and conditions. Dual or optimized air curtain designs have demonstrated reductions to ~25 kWh/24h vs. single-curtain models (~31 kWh), with infiltration rates dropping from ~14.6% to ~9.7%.
• Performance Advantage: This series benefits from premium compressors and efficient heat exchangers, supporting lower overall power draw and better temperature stability compared to basic models.
• Vs. Competitors: Offers strong value with flexible remote/plug-in options and robust LED lighting, aligning with 2026 trends toward energy-saving retail refrigeration. Real-world savings are maximized with night curtains and strategic store placement.

Product Details

Key features

Open Multideck Chiller For Supermarket ( remote system )

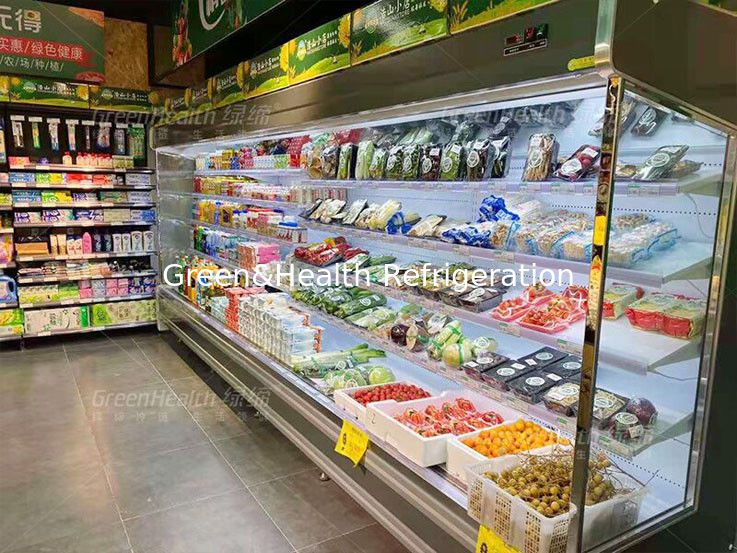

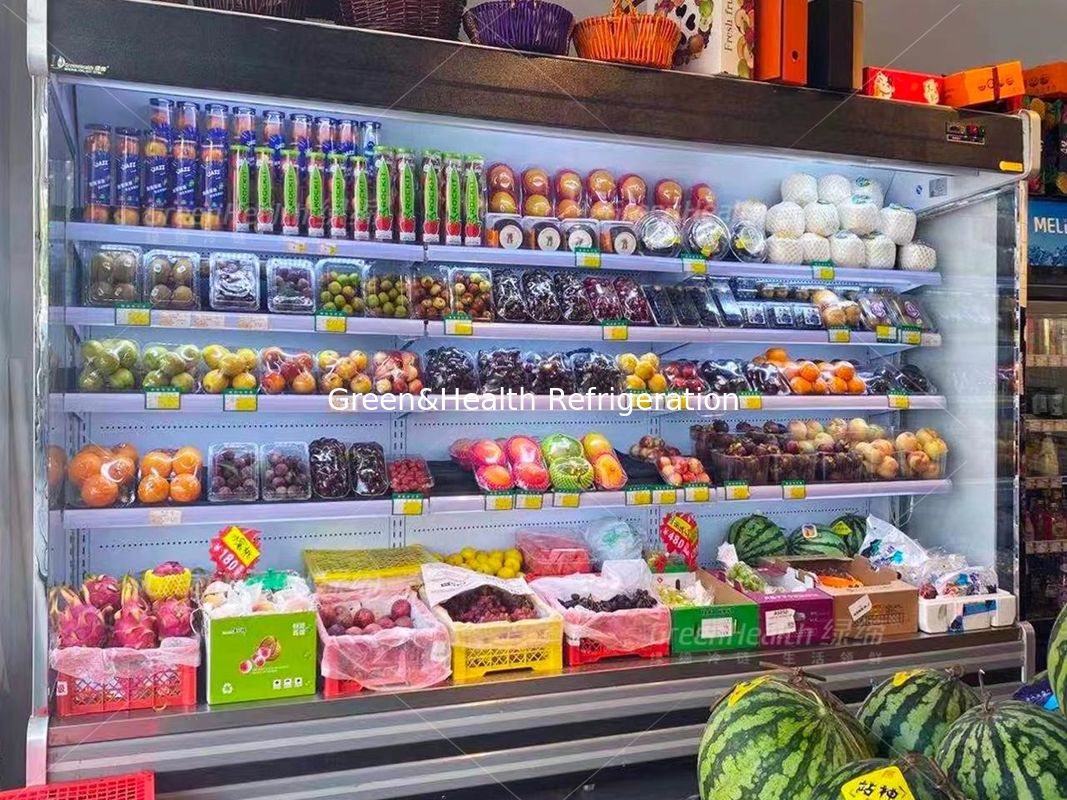

Product Images

Company Information

Guangdong Green&health Intelligence Cold Chain Technology Co., Ltd is a professional manufacturer with more than 10 years experience in the R&D of commercial refrigeration equipment. Covering an area of 50,000 square meters , and the registered capital is 10 million RMB, now there are more than 300 employees including 50 senior technical managerial personnel. Green&Health is dedicated to be the most influential and professional intelligent cold chain production base in southern China!
