Commercial Ice Cream Display Freezer with 360° Panoramic Visibility Digital Temperature Control and Stainless Steel GN Pans

Premium Commercial Hard Ice Cream / Gelato Display Showcase Freezer – Engineered for 2026 Retail and Foodservice Standards

The Green&Health WBQ/GHK series hard ice cream and gelato display cabinets feature large-area curved transparent insulated glass for 360° panoramic product visibility. Combined with an advanced fan-assisted cooling system and precision digital temperature control, they maintain a stable -18°C to -22°C environment. This preserves the smooth texture, prevents crystallization and melting, and maximizes the premium presentation of hard ice cream and gelato. Available in 10 to 20 pans (GN pans) configurations, these units are ideal for cake shops, supermarkets, shopping malls, dessert stores, and dedicated gelato outlets.

Key Technological Features & Solutions

• Superior Temperature Uniformity and Anti-Melting Performance: Microporous air duct design ensures even cold air distribution, paired with high-efficiency compressors (compatible with Danfoss and equivalent brands). This delivers rapid pull-down and stable temperature control. Addresses common industry: Temperature fluctuations that cause surface icing, softening, or product dehydration. The optimized system significantly extends product shelf life and sales window while maintaining creamy texture.
• High-Clarity Anti-Fog Display: Multi-layer insulated curved or flat glass (optional triple-layered with anti-fog coating) combined with energy-saving LED lighting enhances visual appeal and drives impulse purchases. Solves visibility issues: Fogging on glass in humid environments that reduces product attractiveness. Excellent insulation and optional night modes effectively minimize condensation.
• Durability and Low Maintenance: Stainless steel GN pans, heavy-duty castors for mobility, and automatic defrost. Tackles maintenance challenges: Difficult cleaning and dust accumulation on condensers that degrade efficiency. Simple monthly condenser cleaning extends equipment lifespan and sustains optimal performance.
• Eco-Friendly and Safe Design: CE/ROHS certified, compact structure reduces energy use and heat output.

2026 Commercial Refrigeration Energy Efficiency Standards Comparison

2026 marks a major global shift toward stricter energy regulations for commercial display cabinets:

• China (GB 26920 series updates): Tighter minimum energy performance standards (MEPS) emphasize variable-speed compressors and advanced insulation, with full implementation around 2026.
• United States (DOE CRE Standards): Updated rules focus on lowering Maximum Daily Energy Consumption (MDEC) based on Total Display Area (TDA) and volume, with ongoing enforcement toward 2029 targets.
• EU / International (EN 16838 for Gelato Cabinets): Specifies performance, safety, and energy testing under Climate Class 4 (30°C, 55% RH). New ecodesign and energy labeling requirements classify units from A (best) to G, prioritizing low Energy Efficiency Index (EEI).

Product Advantage: This series uses high-efficiency compressors and optimized insulation. Typical 16-pan models have rated power around 900–1,520W and daily consumption of approximately 7–15 kWh (depending on configuration and load). It outperforms many traditional R404A units and is well-positioned to meet or approach 2026 requirements. Future-ready upgrades to low-GWP refrigerants like R290 can reduce consumption by an additional 10–20% while aligning with global environmental trends.

Energy Savings Benefits: Commercial refrigeration often accounts for 30–50% of a store’s energy costs. The efficient design delivers 15–30% lower operating costs versus non-optimized models, with a short ROI period and reduced carbon footprint.

Product Test Data Comparison (Industry & Similar Models)

• Temperature Performance: Consistently holds -18°C to -22°C, outperforming many entry-level units under high ambient temperatures.
• Energy Consumption Example (16-pan reference): Approximately 7–12 kWh/day under typical conditions — competitive with or better than older R404A models. High-efficiency variants with variable-speed technology achieve even lower figures.
• Competitive Edge: Under EN 16838 or equivalent testing, the series excels in uniform cooling, reduced frost/icing, and strong display performance. Optimized airflow and insulation provide measurable energy savings compared to conventional cabinets.

Other Product Details

Description

The door body adopts large-area, clear,heat-insulated arc display glass with good thermal insulation performance, the goods in the cabinet are displayed in all directions;Exquisite workmanship, high efficiency and energy saving compressor;microporous type wind,cold Air uniform distribution,temperature stable inside,food is not easy to dry.The base could be plastic with customized light box or marble.The trays quantity in the cabinet can be arbitrarily selected according to demand,Energy-saving LED light inside to have good visual display effect.Suitable for hard ice cream.Suitable for cakes and bakery store,supermarket,shopping mall,restaurant,dessert shops

Feature

Fully Automatic operation
Interior LED light as standard
Four caster wheels
Environmentally friendly

Full GN pans for ice cream display as standard
Transparent glass showing stronger;
Flowing lines with elegant tone;
Intelligent temperatuer control,accurate display of cabinet temperature;
The machine compact, cooling speed, the hardness can be adjusted;
Eurpean fashion design,will make you store more gentrification;

Equipped with highly efficient compressor, refrigeration fast;
Excellent insulation effect, effectively prevent the melting of ice cream ;
Reasonable extruded structure, ice cream taste more creamy, more delicate;

We have different sizes,12pans,14pans,16pans,18pans to 20pans for choose

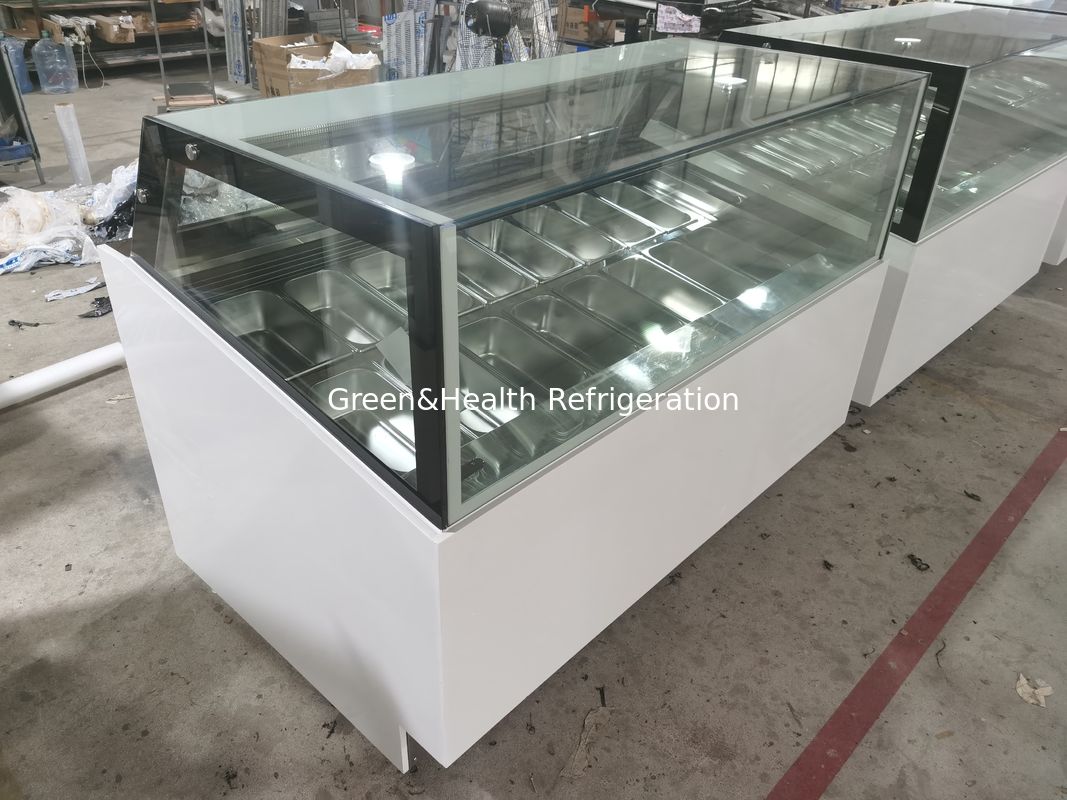

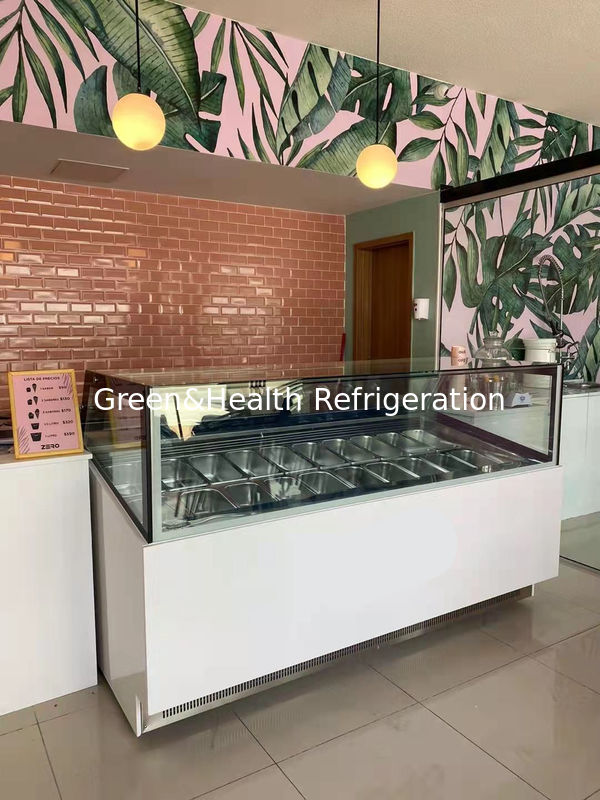

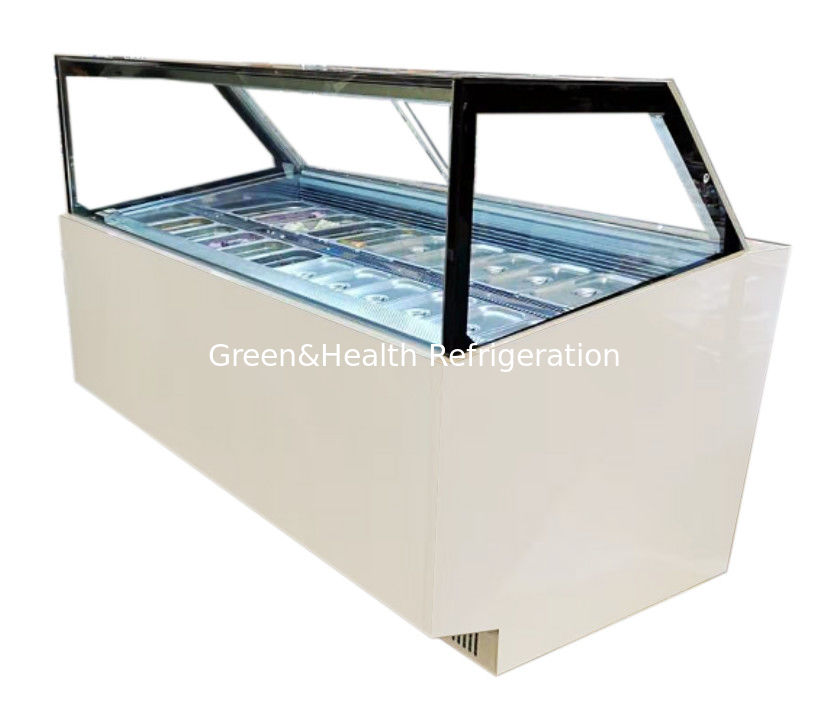

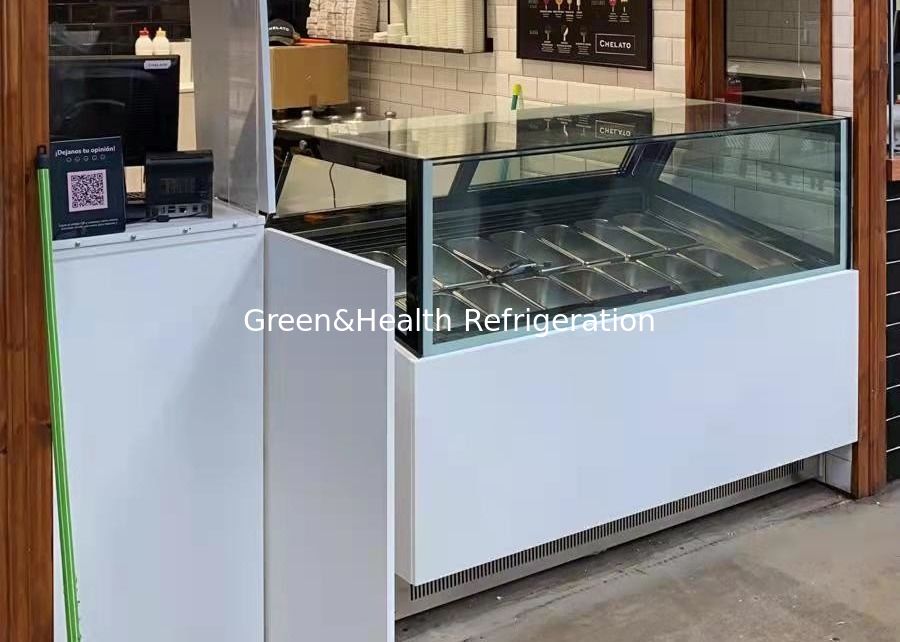

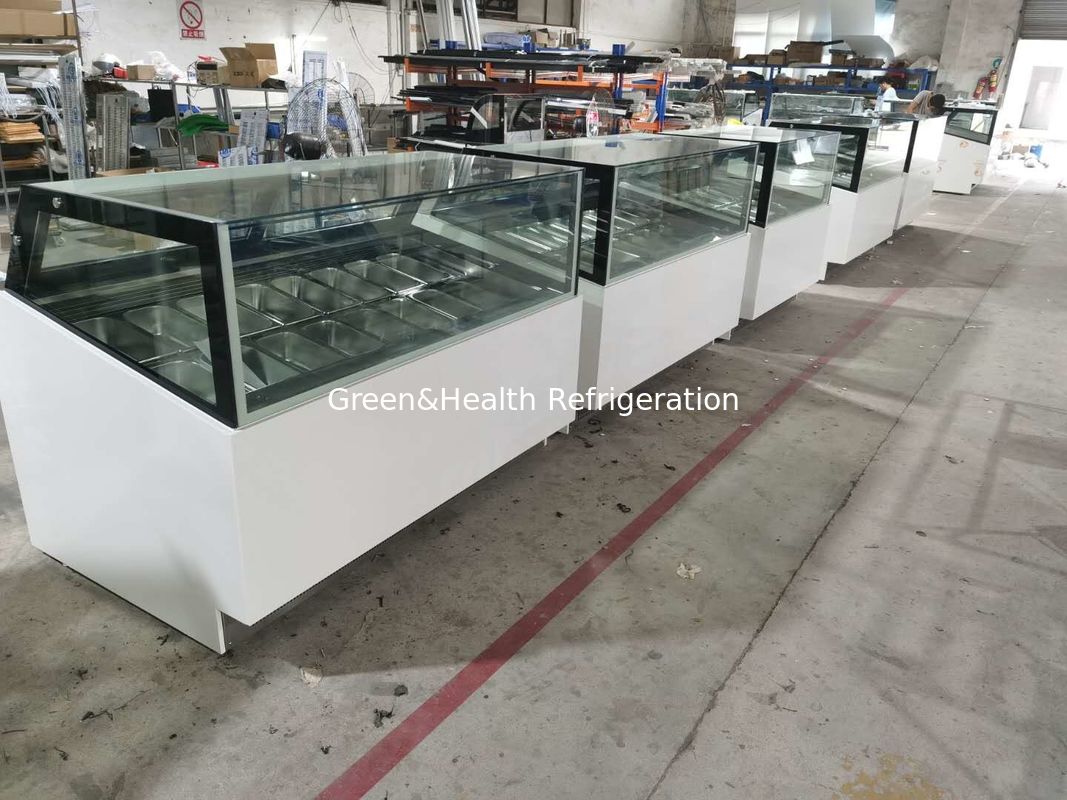

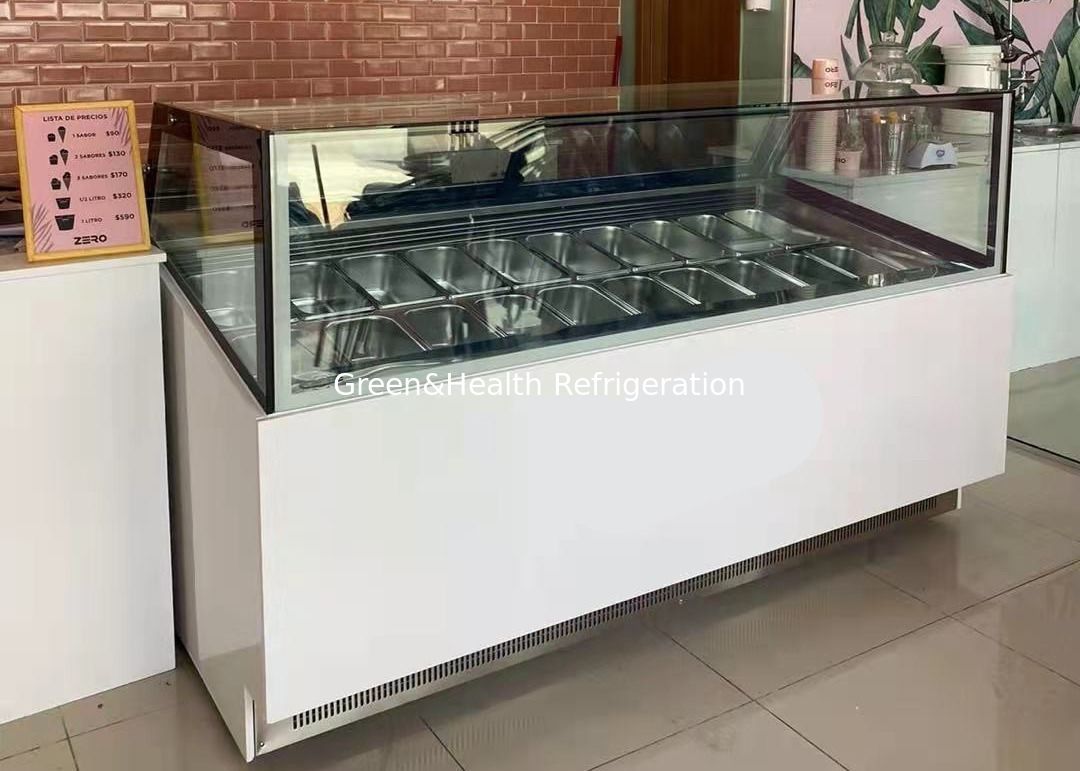

Pictures for reference

Ice cream freezer in curved glass design for choose

Versus Other Brands

Company Information
Guangdong Green&health Intelligence Cold Chain Technology Co.,Itd is a professionalcommercial refrigerators and freezers manufacturer, which locates in Guangzhou, China.We mainly produces large commercial freezers, such as display fridge, cabinet freezer,refrigerator counter, ice cream display freezer and ice maker, which are widely used inshopping malls, supermarkets, shops, hotels and other commercial places.All of our products get CE, RoSH approval.

Certification

FAQ
1. Are you Trading Company or Factory/Manufacturer?
We are factory/manufacturer, locates in Guangzhou City, Guangdong Province, China.
2. What is your MOQ?
Our MOQ is 1 piece.
3. What compressor do you use?
We usually use SECOP, COPELAND, brand compressor etc.
4. what is your delivery time?
We usually prepare goods ready to ship in 15-25days.
5. Can i put my logo ?
Sure, of course. we accept OEM and ODM.
6. How about Warranty?
We provide 1 year (365 days) warranty on whole equipment(both accessories and
compressor).7. What is your payment term?Payment term is 30% deposit upon confirm order, 70% balance before shipment. You canpay through Telex Transfer or Credit Card.
