Commercial Fan Cooling Ice Cream Display Freezer with Stainless Steel Pans and Digital Controller

Ice Cream Freezer & Gelato Display Cabinet – Commercial Fan-Cooled Ice Cream Showcase

Green&Health WBQ / GHK Series Commercial Ice Cream & Gelato Display Cabinet is a premium fan-cooled display freezer designed specifically for professional ice cream and gelato retailing. With elegant curved or flat glass, stainless steel GN pans (12–20 pans capacity), and reliable low-temperature performance (-18°C to -22°C), this unit keeps hard ice cream, gelato, sorbet, and frozen desserts at the perfect serving temperature while offering excellent visibility and easy access. Compact yet high-capacity models (e.g., 1550×1050×1200mm for 16 pans) make it ideal for both small shops and larger outlets.

Key Advantages vs. Competing Products:

• Superior Temperature Stability: Advanced fan cooling with automatic defrost and high-efficiency compressor (Secop/Danfoss options) provides more uniform temperatures and faster recovery compared to basic static or lower-powered systems, reducing ice crystal formation and maintaining creamier texture.
• Better Display & Hygiene: Heated double-glazed glass, bright LED lighting, and full stainless steel pans deliver clearer, more attractive presentation and easier cleaning than many economy models with plastic components.
• Energy Efficiency & Reliability: Excellent insulation, intelligent digital control, and optimized airflow result in lower long-term operating costs and fewer maintenance issues.
• Flexibility: Multiple pan capacities (12–20 pans), caster wheels for mobility, and customizable options (curved glass available) offer greater versatility than fixed-configuration competitors.
• Build Quality: Robust European-inspired design with premium materials provides a premium, gentrified look that enhances store aesthetics.

Main Applicable Commercial Scenarios

This ice cream display cabinet is ideal for:

• Ice cream parlors, gelato shops, and dessert cafes
• Bakeries and patisseries offering frozen desserts
• Supermarkets and convenience stores with dedicated frozen treat sections
• Hotels, resorts, and catering services
• Shopping malls, food courts, and specialty frozen food retailers
• Any high-traffic location needing attractive, temperature-controlled ice cream/gelato merchandising

Daily Usage Precautions & Best Practices

To ensure optimal performance, energy efficiency, and product quality:

1. Temperature Management: Maintain the set point at -18°C to -22°C. Avoid frequent large temperature changes by minimizing lid/glass openings, especially in hot environments.
2. Proper Loading:
   • Use full GN pans and avoid overfilling to ensure good airflow.
   • Rotate stock regularly (FIFO) and pre-chill new ice cream before loading.
   • Do not block air vents or place warm products directly inside.
3. Glass & Cleaning:
   • Clean glass surfaces and interior daily with appropriate cleaners to maintain clear visibility and hygiene.
   • Check and clean condenser coils regularly (monthly) to sustain cooling efficiency.
4. Placement: Position away from direct sunlight, heat sources, or high-traffic doorways. Ensure good ventilation around the unit for the compressor.
5. Maintenance Routine:
   • Monitor the digital controller for alerts and perform automatic defrost cycles as needed.
   • Inspect seals and moving parts periodically.
   • Schedule professional servicing annually.
6. Energy-Saving Tips: Keep the unit in a cool ambient environment, use lids efficiently during slow periods, and avoid running it empty for long periods.

Following these practices will help minimize energy consumption, extend equipment life, and deliver consistently high-quality ice cream to your customers.

This commercial ice cream display cabinet combines excellent preservation performance with attractive merchandising — a valuable asset for any frozen dessert business.

Other Product Details

Description

The door body adopts large-area, clear,heat-insulated arc display glass with good thermal insulation performance, the goods in the cabinet are displayed in all directions;Exquisite workmanship, high efficiency and energy saving compressor;microporous type wind,cold Air uniform distribution,temperature stable inside,food is not easy to dry.The base could be plastic with customized light box or marble.The trays quantity in the cabinet can be arbitrarily selected according to demand,Energy-saving LED light inside to have good visual display effect.Suitable for hard ice cream.Suitable for cakes and bakery store,supermarket,shopping mall,restaurant,dessert shops

Feature

Fully Automatic operation
Interior LED light as standard
Four caster wheels
Environmentally friendly

Full GN pans for ice cream display as standard
Transparent glass showing stronger;
Flowing lines with elegant tone;
Intelligent temperatuer control,accurate display of cabinet temperature;
The machine compact, cooling speed, the hardness can be adjusted;
Eurpean fashion design,will make you store more gentrification;

Equipped with highly efficient compressor, refrigeration fast;
Excellent insulation effect, effectively prevent the melting of ice cream ;
Reasonable extruded structure, ice cream taste more creamy, more delicate;

Product Information

External Dimensions:W 1550 x D 1050mm X H 1200mm
Fully automatic operation
Temperature : -18~-22°C
Capacity: 12pcs GN Pans
Electronically Controlled
Fan Cooling system
Double glazed heated front glass
Adjustable Temperature
LED Interior lighting
White marble base
Compressor:Secop
Refrigerant: R404A
Type of Defrost: automatic defrost

Warranty:1 year

We also have different sizes,12pans,14pans,16pans,18pans to 20pans for choose

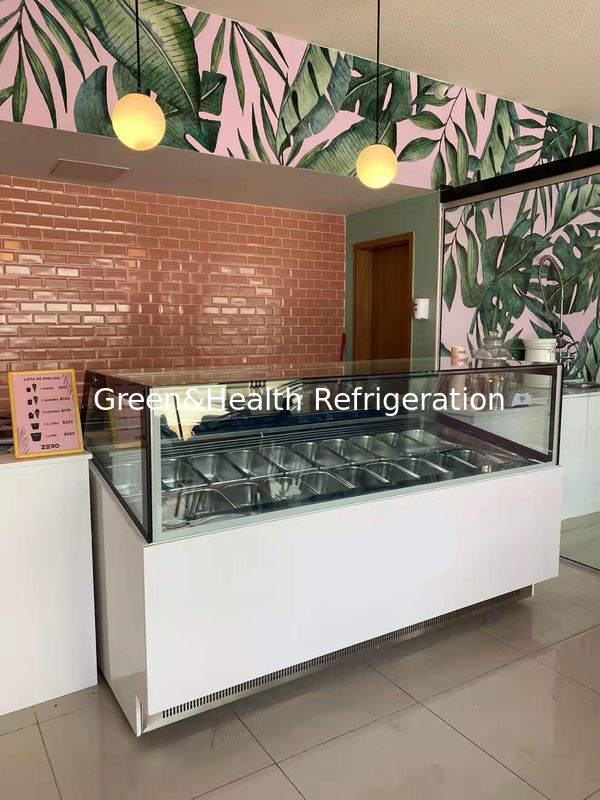

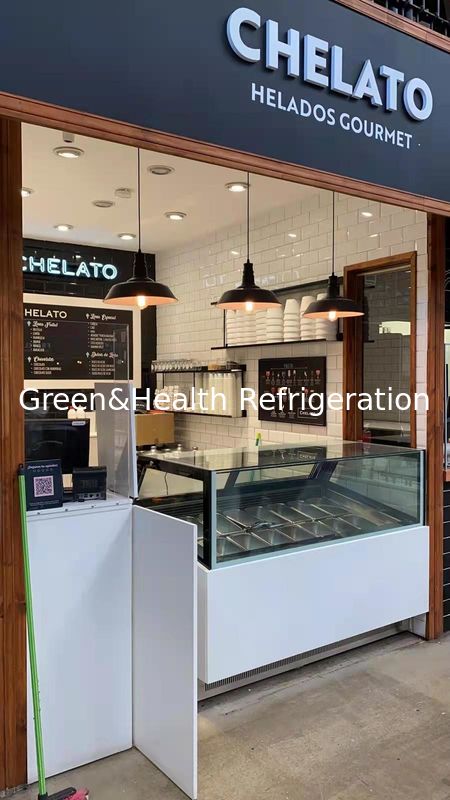

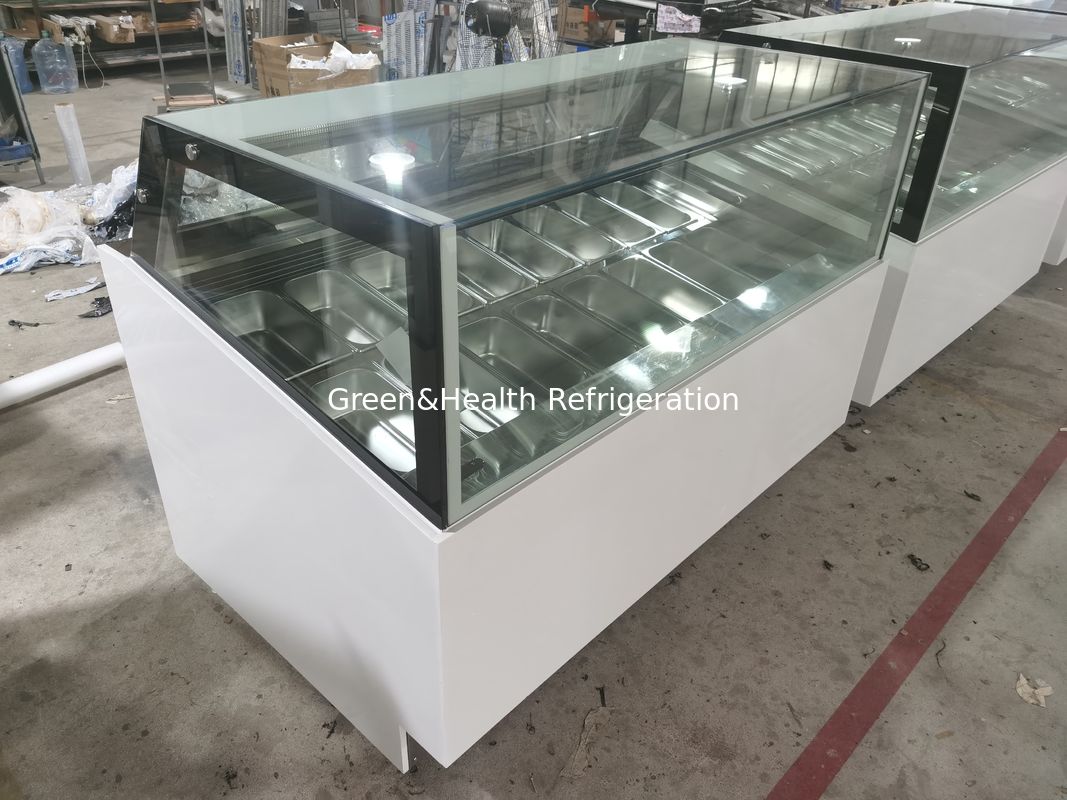

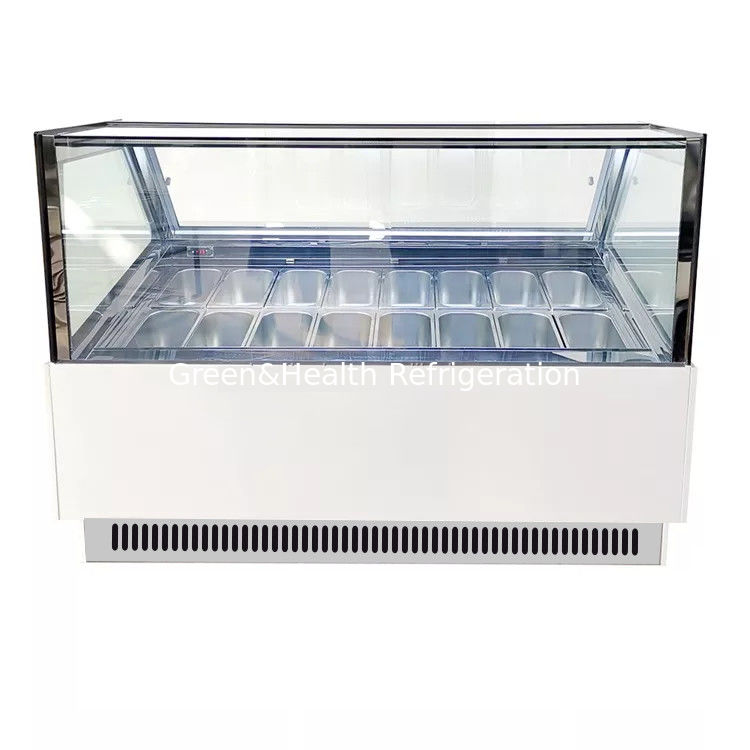

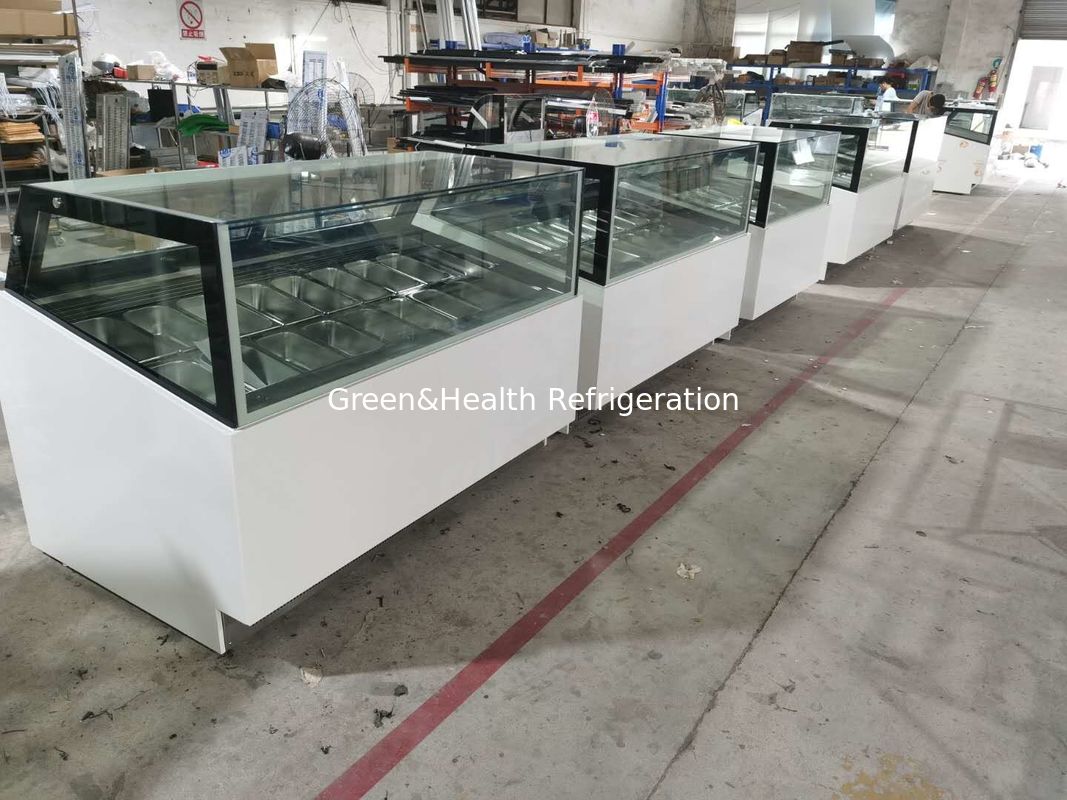

Pictures for reference

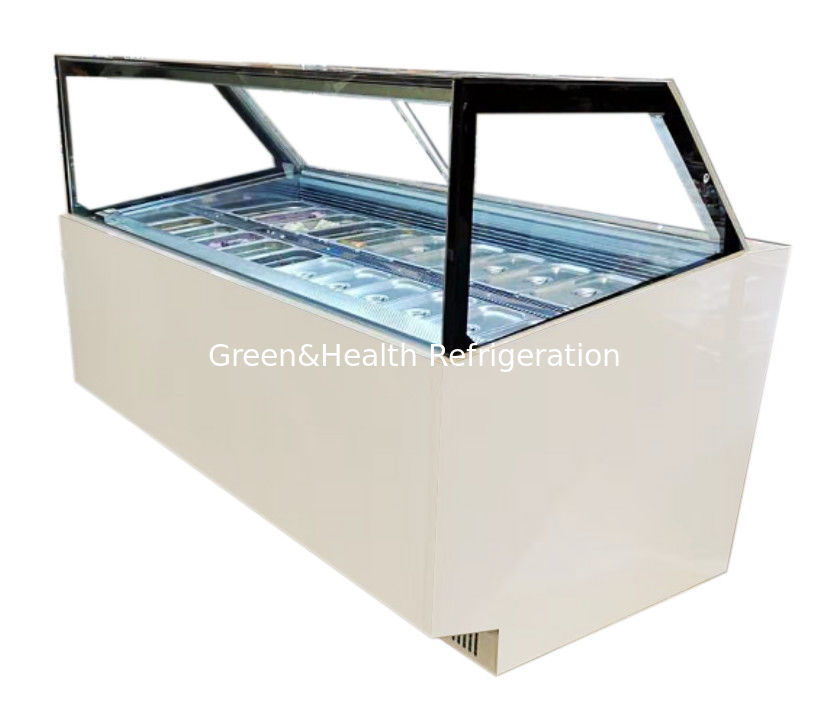

Ice cream freezer in curved glass design for choose

Company Information
Guangdong Green&health Intelligence Cold Chain Technology Co.,Itd is a professionalcommercial refrigerators and freezers manufacturer, which locates in Guangzhou, China.We mainly produces large commercial freezers, such as display fridge, cabinet freezer,refrigerator counter, ice cream display freezer and ice maker, which are widely used inshopping malls, supermarkets, shops, hotels and other commercial places.All of our products get CE, RoSH approval.

Certification

FAQ
1. Are you Trading Company or Factory/Manufacturer?
We are factory/manufacturer, locates in Guangzhou City, Guangdong Province, China.
2. What is your MOQ?
Our MOQ is 1 piece.
3. What compressor do you use?
We usually use SECOP, COPELAND, brand compressor etc.
4. what is your delivery time?
We usually prepare goods ready to ship in 15-25days.
5. Can i put my logo ?
Sure, of course. we accept OEM and ODM.
6. How about Warranty?
We provide 1 year (365 days) warranty on whole equipment(both accessories and
compressor).
7. What is your payment term?
Payment term is 30% deposit upon confirm order, 70% balance before shipment. You can
pay through Telex Transfer or Credit Card.
