Place of Origin:
Guangzhou,Guangdong Province
Brand Name:
GreenHealth
Certification:
CE,ROHS,IEC,SASO
Model Number:
Bar mini fridge
Contact Us
Hotel Guest Room Mini Fridge Of Different Series For Optional
Semiconductor Fridge Series
Features:
Specification:
Model | Volumn | Power consumption | Product Size(mm) (L*W*H) | Packing Size(mm) (L*W*H) | Temp | N.W/G.W |
LDB-15A |
15L | 0.5kw·h/24hr(10℃) | 385*341*415 | 445*401*515 | 5~15℃ | 7.7/9.2kg |
LDB-22A | 22L | 0.5kw·h/24hr(10℃) | 360*445*422 | 420*505*522 | 5~15℃ | 10.8/12.6kg |
LDB-35A | 35L | 0.5kw·h/24hr(15℃) | 420*495*495 | 480*555*595 | 5~15℃ | 11.9/13.4kg |
LDB-42B | 42L | 0.5kw·h/24hr(15℃) | 420*500*420 | 480*560*520 | 5~15℃ | 9.4/10.8kg |
LDB-46A | 46L | 0.5kw·h/24hr(15℃) | 435*510*480 | 495*570*580 | 5~15℃ | 12.1/13.6kg |
LDB-50B | 50L | 0.5kw·h/24hr(15℃) | 500*505*500 | 560*565*600 | 5~15℃ | 12.5/14.5kg |
LDB-65A | 65L | 0.5kw·h/24hr(15℃) | 460*735*540 | 520*795*640 | 5~15℃ | 17.6/19.8kg |
Remark:
Lock(optional) Silver-Painted Cabinet(optional)
Stainless Steel Door(optional) Black-Painted Cabinet(optional)
Parameters of semiconductor fridge:
Voltage | Nominal current | Temp Range | Maximum temp gradient |
110V or 220V | 50~60Hz | 6~15℃ | 20℃ below ambient |
Absorption fridge Series
Principles of Absorption Refrigerator:
Absorption refrigerator is the principle of ammonia-water-ammonia mixed solution in a continuous absorption -diffusion process to achieve the purpose of cooling.In absorption refrigerator system, ammonia as a refrigerant.ammonia solution as the absorbent.helium as balance gas.The ammonia water from bottom of the cooler was heated by heat film into ammonia gas.then moved to the heat sink,naturally cooled into ammonia,then entered into the evaporator mixed with ammonia gas,the rapid gasification to take away the heat lead to refrigeration.After refrigeration,the ammonia water continues to sink to reach the bottom of refrigeration,and begin the next refrigeration recycle.
Specification:
Model |
Volumn (L) |
Power consumption kw.h/24h |
Product Size(mm) (L*W*H) | Packing Size(mm) (L*W*H) | Temp |
N.W/G.W (kg) |
XC-25A | 25.1 | 0.8 | 380*400*480 | 480*460*545 | 0~8℃ | 14.2/16.3 |
XC-25B | 25.1 | 0.8 | 375*400*480 | 480*460*545 | 8~12℃ | 15.8/17.9 |
XC-30A | 29.2 | 0.9 | 420*400*480 | 480*460*545 | 0~8℃ | 14.4/16.5 |
XC-30B | 29.2 | 0.9 | 415*400*480 | 480*460*545 | 8~12℃ | 16.1/18.2 |
XC-40A | 38.9 | 0.9 | 440*400*550 | 500*460*610 | 0~8℃ | 16.5/18.6 |
XC-40B |
38.9 | 0.9 | 435*400*550 | 500*460*610 | 8~12℃ | 18.2/20.3 |
XC-60A | 59.8 | 1.2 | 500*485*560 | 575*565*625 | 0~8℃ | 18.5/20.6 |
XC-60B | 59.8 | 1.2 | 495*485*560 | 575*565*625 | 8~12℃ | 20.8/22.9 |
Remark:
Model type:AA luxury foaming door,AB ordinary foaming door,BB ordinary foaming door,AB ordinary foaming.XC-60 model has AB and BB series.white color and black color option,customize accept.

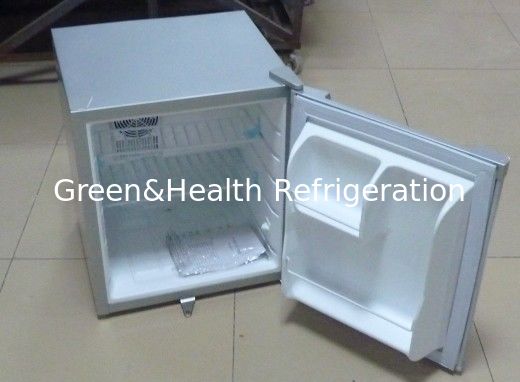

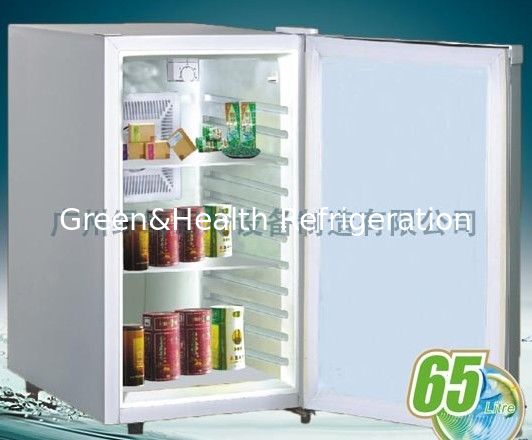

Picture:
