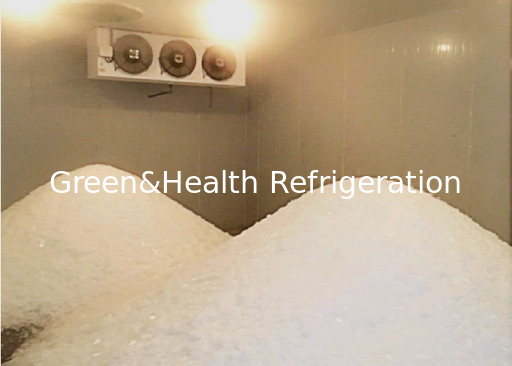

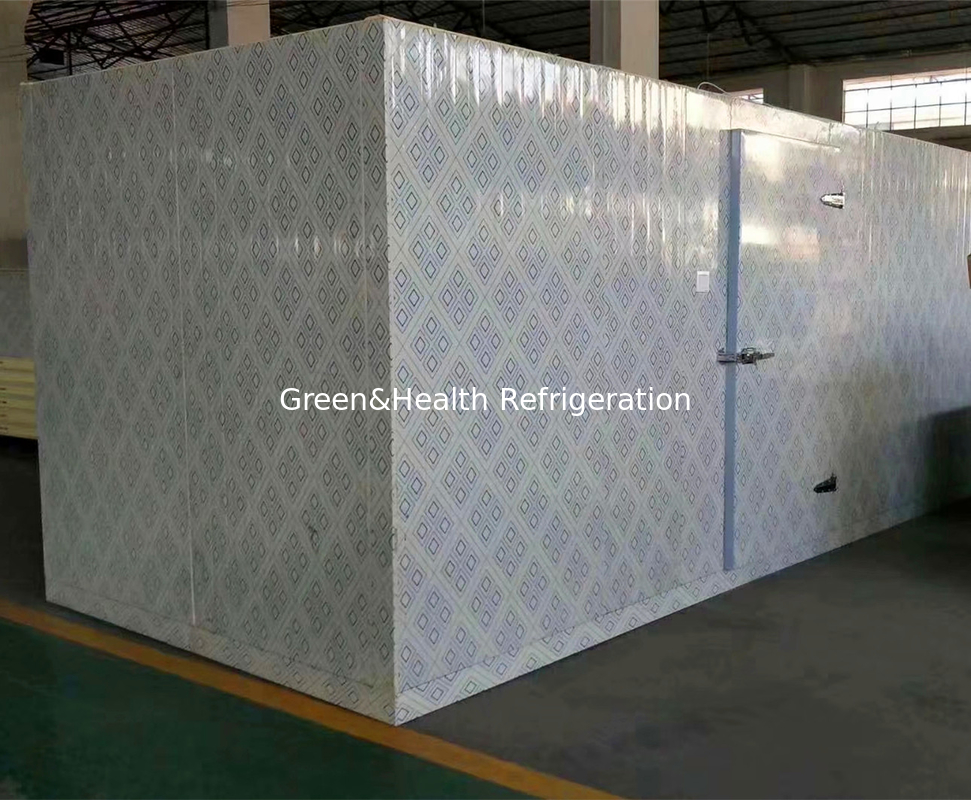

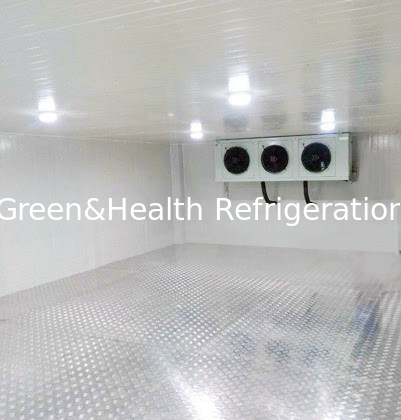

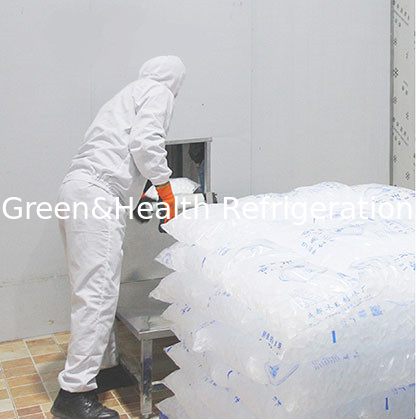

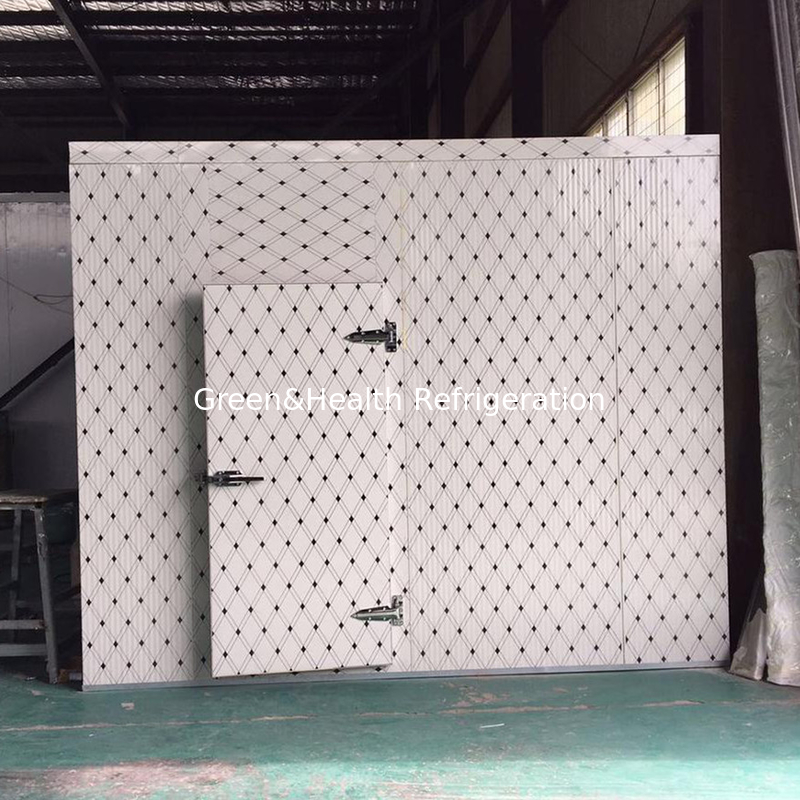

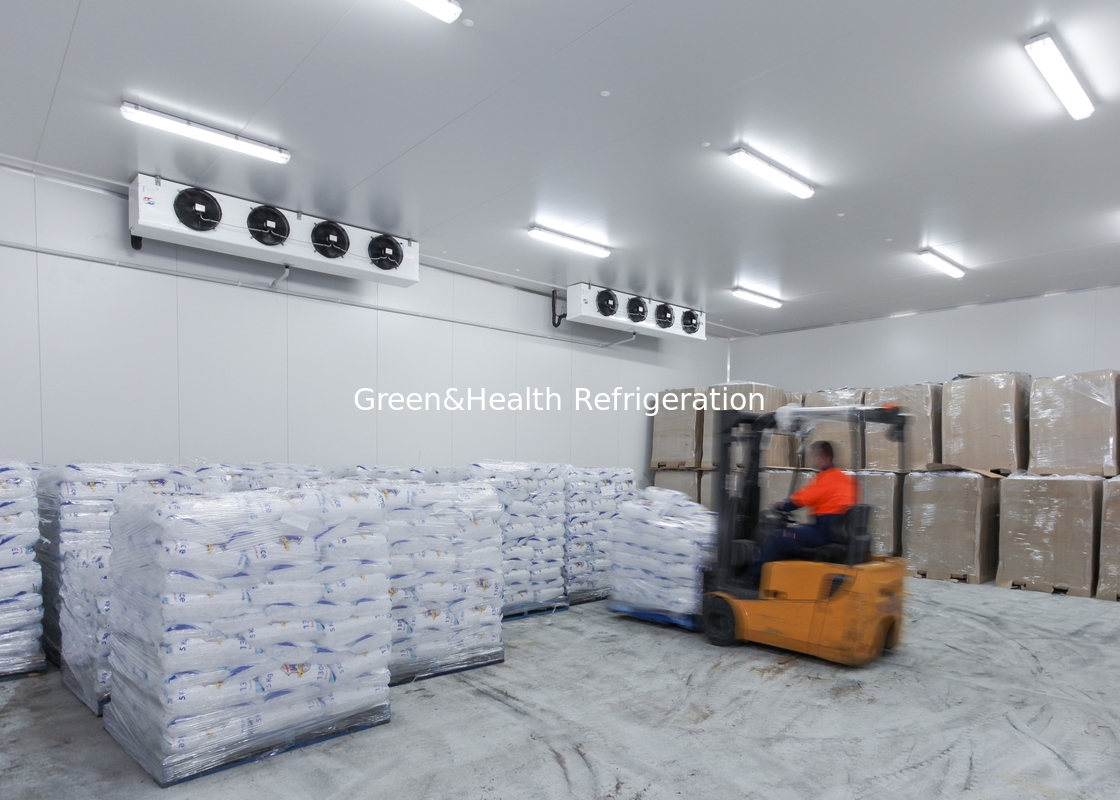

Walk-In Cold Storage Room Ice House Refrigerated Warehouse
Cold room
Cold Room panels type:
75mm;100mm;120mm;150mm;200mm;
Cold room panels material: colorbond painted steel or stainless steel 304;
Door type: hinged type door or sliding type door.
Temperature design type:
Keep fresh with temperature: 5℃ ~-5℃
Keep chiller with temperature: -5℃~-15℃
Keep freezer with temperature: -15℃~-25℃
Blast freezer with temperature: -30℃~-40℃
Feature
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.Cold storage door with anti-shock protection, an increase of reliability.
(1) Size:Customize.according to customer demand
(2) Temperature range: -40ºC~+20ºC are all available.
(3) Functions: fresh-keeping, freezing, quick-freezing, air-conditioning are all available.
(4) Digital Temperature controller.Fully automatic control system.
(5) Easy to install and dismantle
(6) Temperature Alarm
(7) Enviroment friendly refrigerant:R404A
Temperature table for reference
| Cold storage goods | Temperature range |
| Processing room | 10 ℃ |
| Fruit, vegetable, dry food | 0~10℃ |
| Medicine, cake, pastry, chemical material | 0~-5℃ |
| Ice storage room | -5~-10℃ |
| Fish, meat storage | -18~-25℃ |
| Deep freezer. | -25C~-35℃ |
Panels information
| Office Foam panel | 50mm thickness |
| Processing room 10℃ | 50mm/ 75mm PU |
| Chiller room 0~10/-5℃ | 75mm/ 100mm PU |
| Freezer room -18℃ | 100mm/ 120mm PU |
| Ultra freezing room -25C/ -35℃ | 150mm/200mm PU |
| Panel steel cover | Coated steel,stainless steel,galvanized, aluminum etc |
