Copeland Compressor Glass Door Single - Temperature Style Upright Freezer

LG-3D is a 3-door single-temperature upright freezer. Frozen food, frozen meat packs and ice cream boxes stand behind heated triple glass. The whole cabinet runs at -18 to -22°C. There is no second temperature zone. Depth is 945 mm, deeper than a 690 mm drinks fridge.

This page starts with LG-3D:

• Doors: 3
• Size: 2343 × 945 × 2080 mm
• Volume: 1400 L
• Temperature: -18 to -22°C
• Compressor: Copeland
• Refrigerant: R404A
• Cooling: fan, auto defrost
• Glass: triple, heated, swing
• Foam: 60 mm side panel
• Light: LED
• Canopy: illuminated merchandising sign
• Wheels: yes
• Color: black or white
• System: top-mounted self-contained; remote on quote
• Voltage: 220V 50/60Hz standard
• Certification: CE, RoHS, IEC

Same long-wall series

• LG-3D: 3 doors, 2343 × 945 × 2080 mm, 1400 L
• LG-4D: 4 doors, 3124 × 945 × 2080 mm, 1900 L
• LG-5D: 5 doors, 3900 × 945 × 2080 mm, 2400 L

What belongs inside

• Frozen meal cartons
• Frozen meat packs
• Ice cream boxes at -18 to -22°C

What does not belong

• Soft drinks at 2–8°C
• A dual-temperature cabinet
• A short 2-door 1280 mm bay (that is another series)

Order terms

Manufacturer: Guangdong Green&Health Intelligence Cold Chain Technology Co., Ltd., Guangzhou, China.

MOQ: 1 piece.

6 doors and above, or a chiller version, are separate quotes. Do not list them as standard on this page.

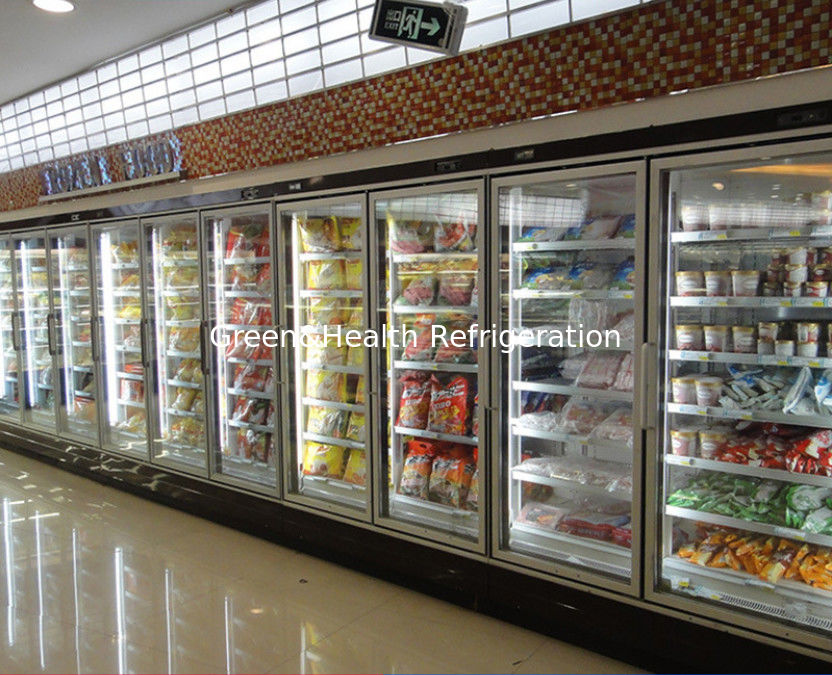

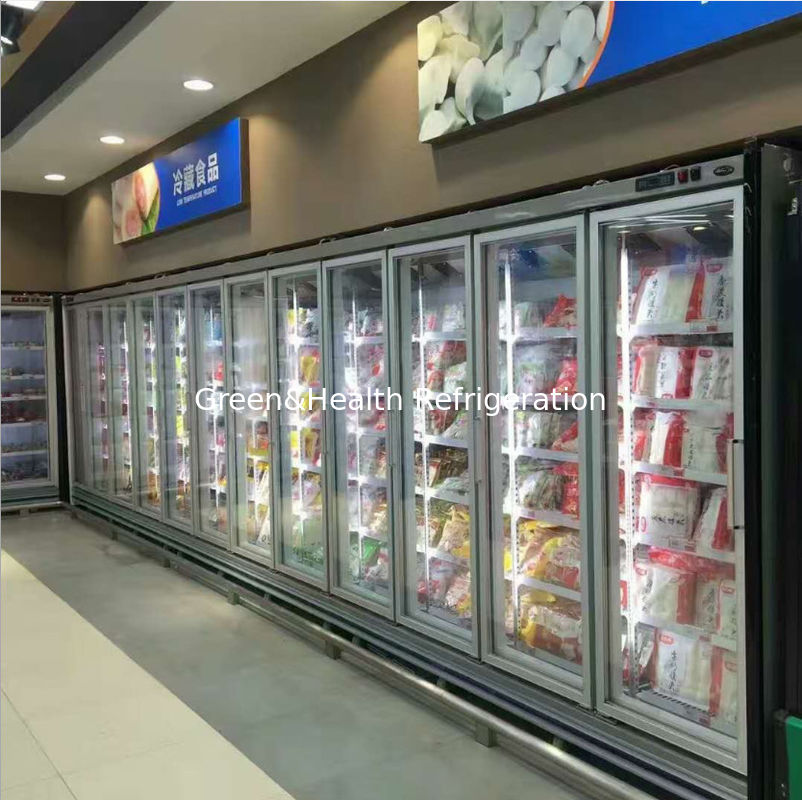

Picture for your reference
