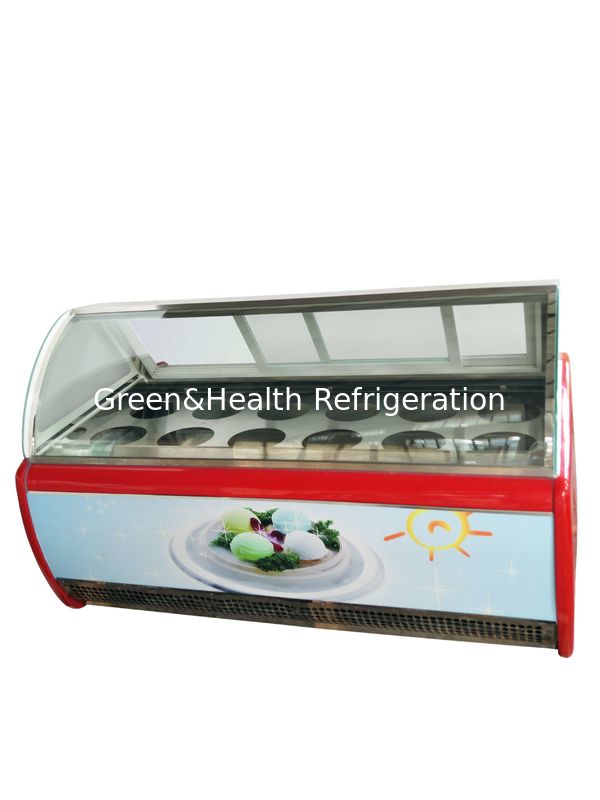

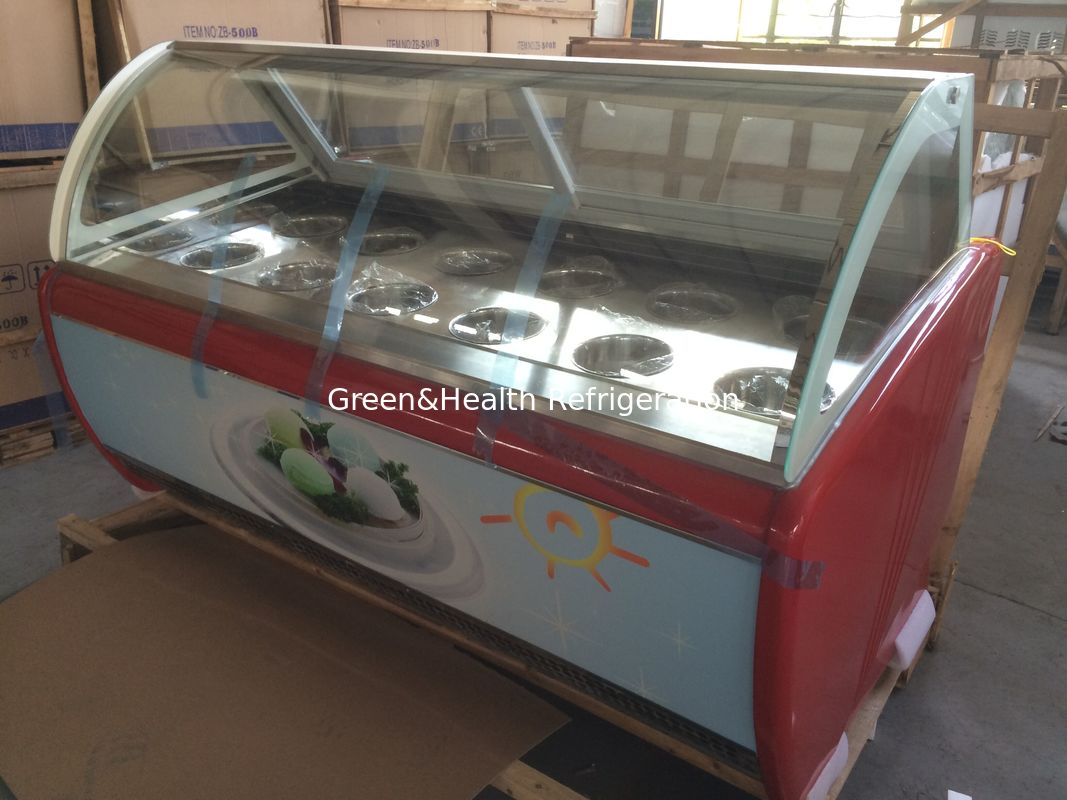

Commercial Ice Cream Display Freezer Designed for Energy-Efficient Frozen Merchandising
The Green&Health WBQ-12 Glass Chest Ice Cream Display Freezer is specifically engineered for ice cream shops, convenience stores, supermarkets, cafés, and branded frozen dessert retailers requiring attractive product presentation and low operating costs.
Unlike conventional static-cooling chest freezers, the WBQ-12 utilizes a dynamic air-circulation refrigeration system combined with a Danfoss compressor to achieve faster temperature recovery and improved temperature consistency throughout the cabinet. The curved heated glass canopy provides excellent product visibility while reducing condensation under high-humidity operating conditions. The 60mm high-density polyurethane insulation further minimizes thermal loss and helps maintain stable freezing temperatures even during peak business hours.
The freezer is designed to operate in demanding commercial environments and has been tested under +35°C ambient temperature and 70% relative humidity conditions, making it suitable for tropical and high-temperature markets.
Recommended Applications
- Ice Cream Shops
- Gelato Stores
- Nestlé Ice Cream Retailers
- Convenience Stores
- Milk Tea Shops
- Supermarkets
- Dessert Kiosks
- Tourist Attractions
Advantages Compared with Typical Market Competitors
Why WBQ-12 Outperforms Standard Ice Cream Display Freezers
| Comparison Item |
Green&Health WBQ-12 |
Typical Entry-Level Competitor |
| Compressor |
Danfoss |
Generic Brand |
| Cooling System |
Dynamic Air Cooling |
Static Cooling |
| Glass System |
Heated Anti-Fog Curved Glass |
Standard Glass |
| Temperature Control |
Digital Controller |
Mechanical Thermostat |
| Insulation Thickness |
60 mm PU Foam |
40–50 mm Foam |
| Defrost System |
Hot Gas Defrost |
Manual Defrost |
| Power Consumption |
6 kWh/24h |
7–10 kWh/24h |
| Temperature Recovery |
Fast |
Moderate |
| Product Visibility |
Excellent |
Average |
The combination of dynamic cooling, heated glass, and high-density insulation helps reduce frost accumulation while improving product visibility and merchandising performance.
2026 Commercial Ice Cream Display Freezer Energy Efficiency Benchmark
Energy Consumption Comparison
As electricity costs continue to rise globally, energy efficiency has become a key purchasing factor for commercial refrigeration equipment.
| Energy Performance Indicator |
WBQ-12 |
Industry Average (Traditional Models) |
| Daily Energy Consumption |
6 kWh/24h |
7–10 kWh/24h |
| Insulation Thickness |
60 mm |
40–50 mm |
| Compressor Efficiency |
High-Efficiency Danfoss |
Standard Compressor |
| Glass Heat Loss Control |
Heated Curved Glass |
Standard Tempered Glass |
| Cooling Retention |
Excellent |
Moderate |
| Annual Energy Cost Reduction* |
10–25% |
Baseline |
*Estimated under typical retail operating conditions. Actual results vary according to ambient temperature, loading pattern, and opening frequency.
Product Usage Precautions
Before Startup
- Allow the cabinet to stand upright for at least 4–6 hours after transportation before powering on.
- Verify power supply voltage matches the equipment rating.
- Ensure proper grounding.
Installation Environment
- Maintain at least 100 mm clearance around condenser ventilation areas.
- Avoid direct sunlight exposure.
- Recommended ambient temperature: below 35°C for optimal efficiency.
Although the unit is tested at +35°C and 70% humidity, lower ambient temperatures improve energy efficiency and compressor lifespan.
Daily Operation
- Pre-cool the freezer for 2–4 hours before loading products.
- Avoid overfilling above the designated product line.
- Minimize prolonged lid opening during peak hours.
Industry operators note that maintaining proper loading levels helps preserve stable product temperatures and improves scoopability consistency.
Maintenance Recommendations
- Clean condenser coils every 30–60 days.
- Inspect anti-fog glass heaters regularly.
- Check door and glass seals quarterly.
- Verify temperature controller calibration every six months.
Other Product Details
Ice cream display showcase is widely used in ice cream shop, milk tea shop, pastry shop, cake shop,
supermarket, etc., because its freezing temperature can well preserve ice cream, popsicle, etc
Bucket ice cream display freezer :
| Model No |
WBQ-12 |
|
| Cooling model |
Dynamic cooling |
| Tem setting |
-22°C~-18°C |
| Ambient tem |
-45°C ~45°C |
| Packing method |
Wooden frame |
| Compressor |
Danfoss |
| Glass |
Tempered with heater |
| Compressor location |
Bottom |
| Refrigerant |
R404a |
| Certificate |
CE |
| Thermostat |
Digital |
| Dimension(mm) |
1190*1130*1250 |
| Voltage/Frequency |
220V,50/60HZ |
Main Features
High Pressure Foamed Layer.
Tempered glass. The tempered glass has special material.
After steel processing,the grain is very small when it is broken.
Coating and Explosion-proof.
Have a big display window.
With Led lights to display the ice cream.
New and powerful compressor.
| Feature:Tested at +35°C in 70% relative humidity |
| Temperature can be customized to -20~-24,-24~-28 degree/Temperature Difference: about 4 degree |
| Outer material: Stainless steel: #304/Inner material: Stainless steel: #304 |
| Automatically and quickly defrost by hot gas-Low noise level |
| Insulation in polyurethane thickness 60 mm, guaranteeing minimal dispersion and greatly reduced running costs |
| Tempered curved glass with defogging heating wires |
| Climate Type: Ventilated/Air-cooling |
| Easy setting by digital temperature control board |
| CE certification for Europe and 3C certification in China |
FAQ
1. Are you manfacture or trade company?
Our company is manufacture factory,locted in Guangzhou
2. We have own size and style,can you offer same product?
We accept customize,same product but cheaper price.
3. How about the quality of your products?
We have 10 years experience of refrigeration equipment,and our workers are professional.we use famous accessories to keep the quality workable.
4. What is your delivery time?
Usually,our delivery time is 15~20 days,after comfirming the date with workroom,We will inform clients.
5. What is your payment terms?
We cab accept 30% T/T or L/C at sight,Aftering send photos of products to clients,70% balance could be paid before delivery.
