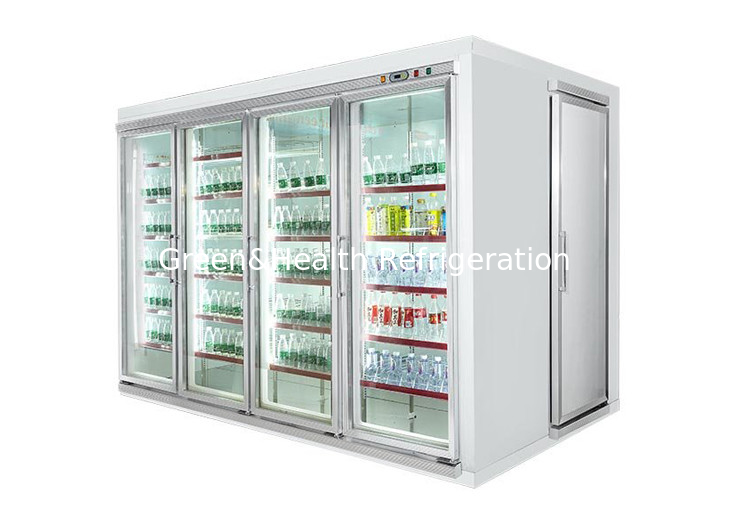

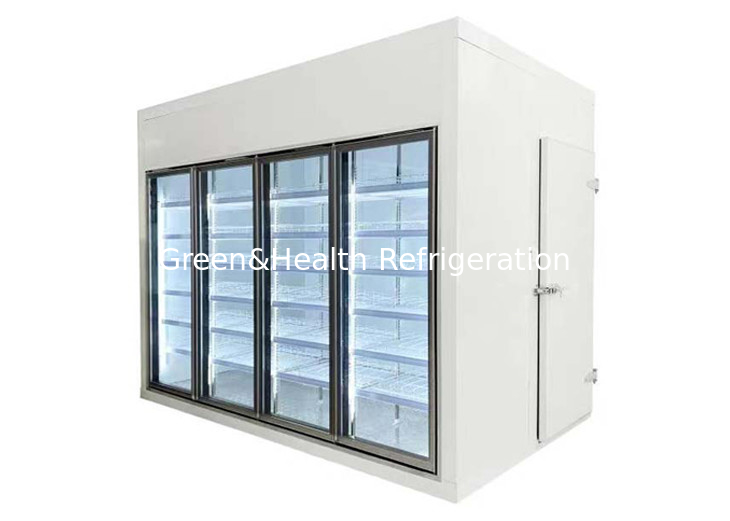

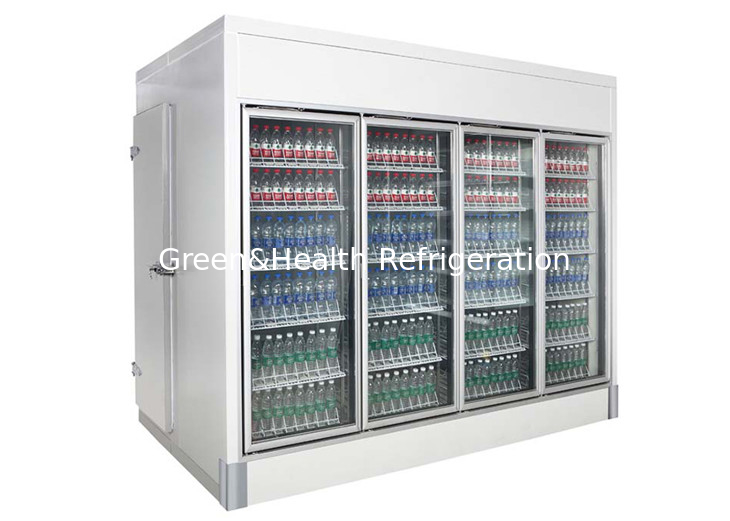

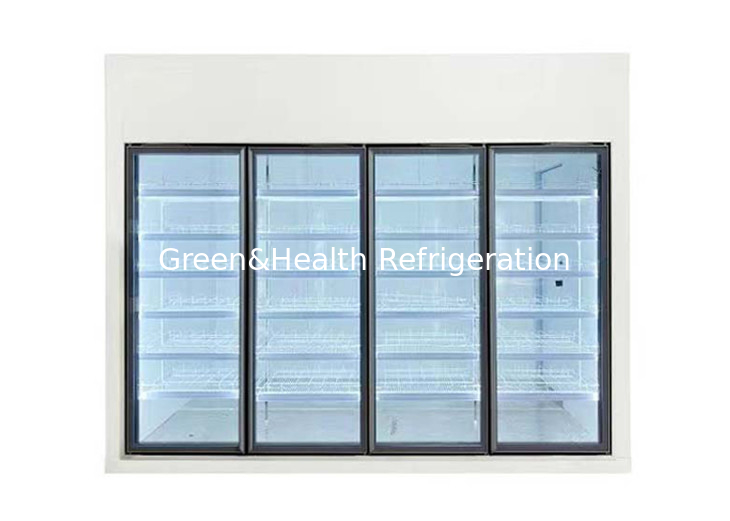

Front Open Glass Door Cold Room Display Chiller With Back Load
Before Chinese New Year Holiday, We have Discount About this freezer !
Walk in Freezer Feature:
1. Walk in freezer, it is a cold room, consist of panels,comprssor units,condenser units. And it widely use in meat frozen.
2. Surface Material: Color steel,galvanized steel,embossed aluminum,stainless steel for option.
3. The Density of PU panel is 45 kgs per cubic meter,
4. Remote system with fan cooling, use Copeland compressor and R404a gas
5. Except the walk in freezer, our factory also manufacture walk in cooler, blast freezer.
| Item Number | LG-4HB |
| Compressor Unit | Copeland/Famous Brand |
| Cooling System | Fan Cooling |
| Refrigerant | R404a |
| Voltage/Hertz | 380v 50Hz 3phase/220v 60Hz |
| Glass Door with demist | Option( can be or can not be) |
| Temperature | -18C to -20C |
| Shelves | Yes |
| LED light | Yes |
More walk in freezer size for option
| Item Number | Product Name | Voltage | Dimension | Temperature |
| LG-3HB | 3 doors walk in freezer | 380v 50Hz-60Hz | 2200x1800x2200mm | -18C to -20C |
| LG-4HB | 4 doors walk in freezer | 380v 50Hz-60Hz | 2900x1800x2200mm | -18C to -20C |
| LG-5HB | 5 doors walk in freezer | 380v 50Hz-60Hz | 3600x1800x2200mm | -18C to -20C |
| LG-6HB | 6 doors walk in freezer | 380v 50Hz-60Hz | 4300x1800x2200mm | -18C to -20C |
| LG-7HB | 7 doors walk in freezer | 380v 50Hz-60Hz | 4980x1800x2200mm | -18C to -20C |
| LG-8HB | 8 doors walk in freezer | 380v 50Hz-60Hz | 5680x1800x2200mm | -18C to -20C |
| LG-9HB | 9 doors walk in freezer | 380v 50Hz-60Hz | 6380x1800x2200mm | -18C to -20C |
| LG-10HB | 10 doors walk in freezer | 380v 50Hz-60Hz | 7080x1800x2200mm | -18C to -20C |
1.Copeland Scroll compressor
2.Hi-thread condenser
3.High-thread series of low-temperature DD evaporator
4.Danfoss high-end expansion valve.(Series expansion valve fot freezer, capilary cut for cooler)
5.Full computer control system(automatic control)
6.Apan Saginomiya/Shangheng solenoid valve( a set of solenoid valve has two units for high temperature unit: running-cream filling, Freezing, Freezing Unit has and addition of liquid spray)
7.Rotor with 4 sets of high-blower
8.LG electrical components
9.Emerson dry filter, pressure relay protection, the protection of high-temperature , compressor temprature control(temperature liquid spray for freezer)
10. Condensale water processor+cooper piping tube+frozen oil+cooling of the refrigerant 404A +silver eletrode + Insulation.Condensate water processor.Packing+carton box/wood box+certification
11. The doors of the cold room have safe lock which is help to open them from inside
Company Information
Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professional commercial refrigerators and freezers manufacturer, which locates in Guangzhou, China. We mainly produces large commercial freezers, such as display fridge, cabinet freezer, refrigerator counter, ice cream display freezer and ice maker, which are widely used in shopping malls, supermarkets, shops, hotels and other commercial places. All of our products get CE, RoSH approval.
