R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Certification
Good quality Ice Cream Display Freezer for sales
Good quality Ice Cream Display Freezer for sales
I'm Online Chat Now

R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

China R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950 supplier

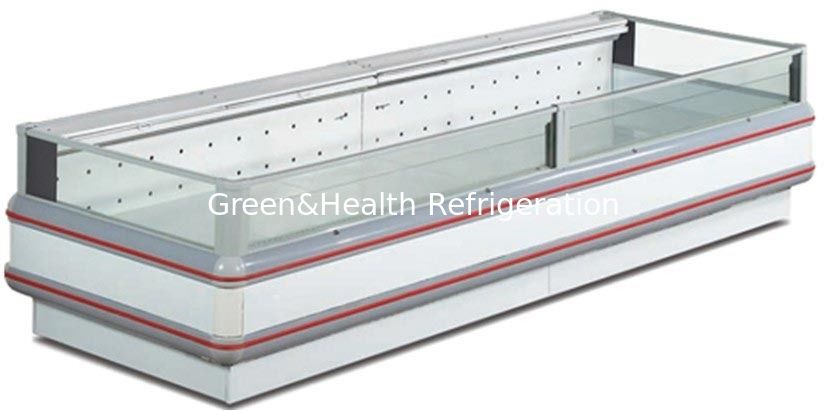

Large Image :  R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Product Details:

Place of Origin: China
Brand Name: Greenhealth
Certification: CE,ROHS
Model Number: GHL-15

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Wooden frame
Delivery Time: 30days
Payment Terms: Ex works
Supply Ability: 50PCS/week
Detailed Product Description





R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

The GHL-15 Series island freezer Cases are industry leaders in energy efficiency, while providing stable temperatures and a maintenance friendly design. ENERGY EFFICIENT. Greenhealth wide island design conserves energy while maintaining stable cooling performance. MAINTENANCE-FRIENDLY. Several features make maintenance easier, including ample space for accessing the electrical connection points in the raceway and removable self-trapping drain. QUALITY FIRST. Greenealth stands behind the reliability of its merchandisers with a limited time warranty. VERSATILE. Greenhealth Island Merchandiser allows the customer multi using ways applications such as, ice cream, frozen food, frozen meat, dairy, or deli. The display panel on the merchandiser can easily be adjusted for more effective storage and display of goods. The greenhealth wide island freezer merchandiser is adopts Germany BITZER compressor, highly quality condenser unit in the word.

Particular Information:

1. The asymmetry structure of vortex cooling air curtain is used, the refrigeration effect is uniform, so that solve the problem of frosting blockage.
2. The high efficiency evaporator and the imported heating expansion valve are used, so than cut down the time of defrosting, reduce the energy consumption.
3. The rust protection and preservative treatment is conducted for all components. The aluminum alloy is treated by frost and oxidation. The static spray finishing is used for outer of some parts.
4. The blind cover and curtain can be chose, so that save energy and guarantee the health of food.
5. The shelf can be chose, so that the goods is delayed in parallel, optimize the supermarket environment, to speed up the purchase of goods.
6. The running condition of goods can be monitored by computer in real time.

 Customize idea

Greenhealth refrigeration can customize size/color to the customer. The size we can make from 1.5 meter to more than 30meters, the color, we can make red color, white color, gray color, black color, blue color… Also shelf on the top, sliding door on the top optional.

Low Running Costs

Low energy lighting is a dollars standard feature. Optional Low energy fans may be specified at additional cost.



Specification.

Product Specification

Product Picture

Model No.

GHL-15


R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Size

1500*1080*950

Packing size

1600*2080*1050/2parts packing unit

Rated power

1.5HP/900W

Tem setting

    -20°C~-18°C

Ambient temp.

0°C to 38°C

Compressor

Factory Standard

Refrigerant

R22/R404a optional

Cooling system

Condenser unit on the roof, self-contain cooling

Thermostat

digital Elitech

Open top

Yes, with night blind hiding on the top

body

90mm thickness

Easy moving wheel

Not with

Top around

Half glass or full foaming can optional

Shelf inside

optional

Light inside

T5/LED optional

voltage/frequency

220v/50hz /110v/60hz optional

color

Blue/white/red/black…optional

packing

wooden frame

Top open single island                      Top with sliding door single island

 R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950           R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Top open double island                          Top with sliding door double island

R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950     R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Details pictures



R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950

Add one shelf on the top

R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950





Remote condenser unit(BITZER Germany brand)

R22 / R404a Supermarket Open Top Island Freezer / Single Island 1500 * 1080 * 950
