Shop Ice Storage Cold Room Cold Storage Freezer Room For Ice
Cold room Feature
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.Cold storage door with anti-shock protection, an increase of reliability.
(1) Size:Customize.according to customer demand
(2) Temperature range: -40ºC~+20ºC are all available.
(3) Functions: fresh-keeping, freezing, quick-freezing, air-conditioning are all available.
(4) Digital Temperature controller.Fully automatic control system.
(5) Easy to install and dismantle
(6) Temperature Alarm
(7) Enviroment friendly refrigerant:R404A

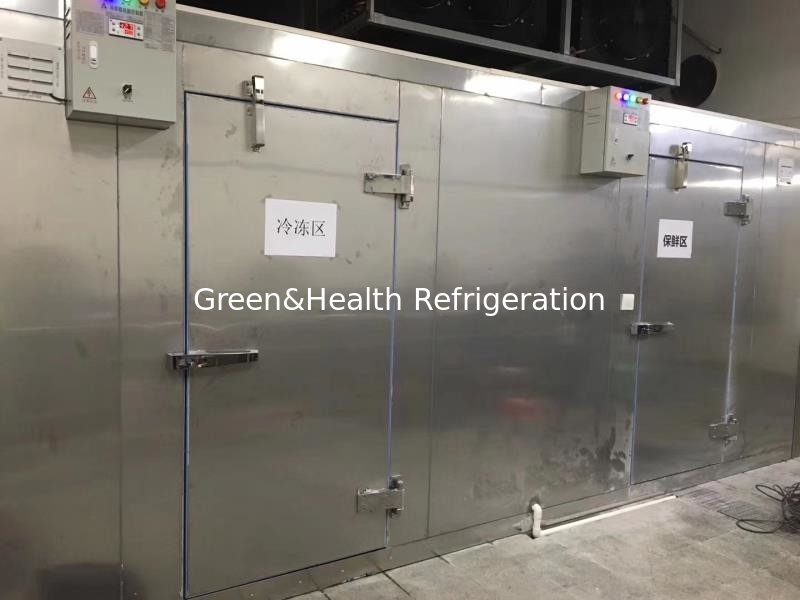

Doors:
1). Swing door and sliding door for choice.
2). Swing door:manual opened,automatic,etc.
3). Door board made with special pressing technology PU material.
4). Door frame:color steel or stainless steel.
5). Surface material:color steel or stainless steel with protecting film.
Temperature table for reference
| Cold storage goods | Temperature range |
| Processing room | 10 ℃ |
| Fruit, vegetable, dry food | 0~10℃ |
| Medicine, cake, pastry, chemical material | 0~-5℃ |

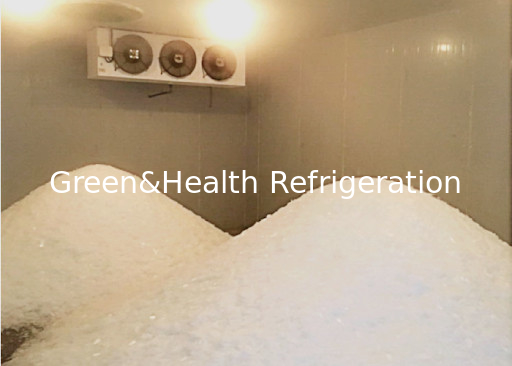

| Ice storage room | -5~-10℃ |
| Fish, meat storage | -18~-25℃ |
| Deep freezer. | -25C~-35℃ |

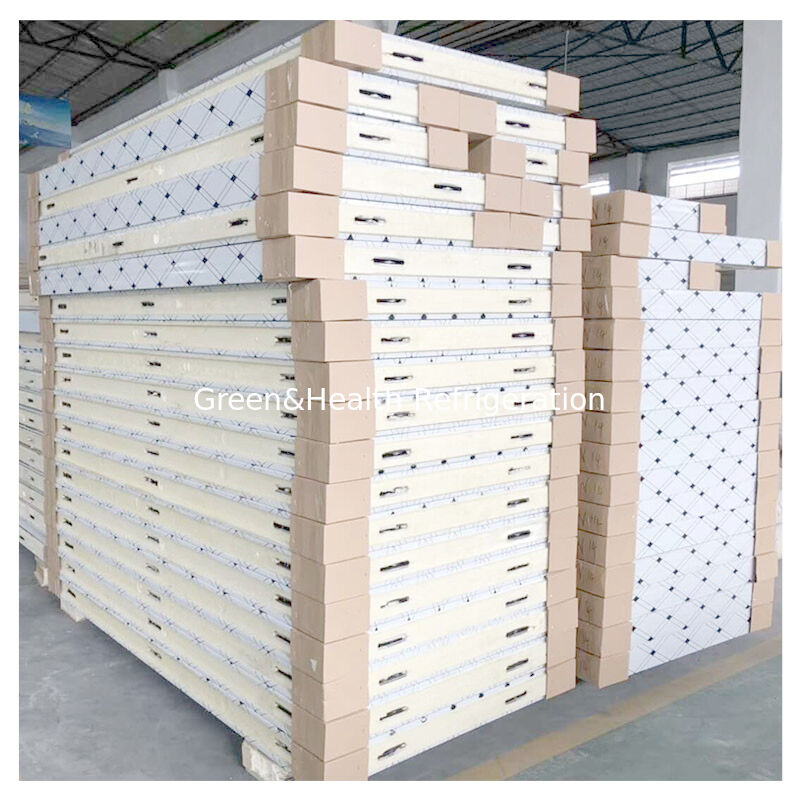

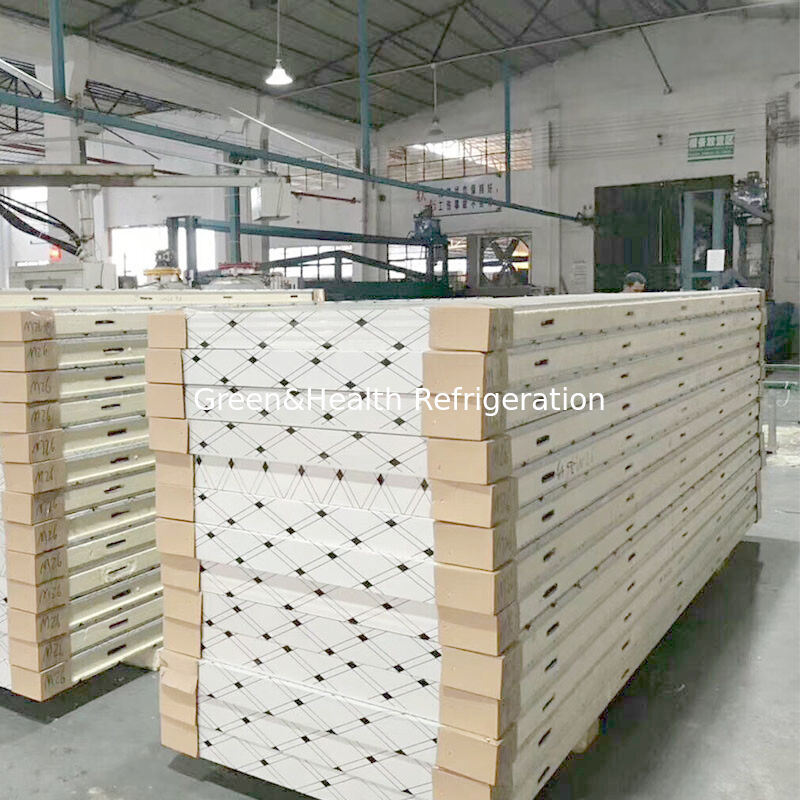

Panels feature:
Cold room insulation panel:use 100% polyurethane insulation panel,density about 40±2kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:75mm,100mmm,120mm,150mm,200mm, standard width of panel is 960mm,the cold room size can be customize,we will design as you required.
Panels information
| Office Foam panel | 50mm thickness |
| Processing room 10℃ | 50mm/ 75mm PU |
| Chiller room 0~10/-5℃ | 75mm/ 100mm PU |
| Freezer room -18℃ | 100mm/ 120mm PU |
| Ultra freezing room -25C/ -35℃ | 150mm/200mm PU |
| Panel steel cover | Coated steel,stainless steel,galvanized, aluminum etc |
