Home ProductsCold Storage Room

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Certification
Good quality Ice Cream Display Freezer for sales
Good quality Ice Cream Display Freezer for sales
Well received the island freezers and cold room for our supermarket,they use good.Thanks for your help

—— Alex Mohammed

I'm Online Chat Now

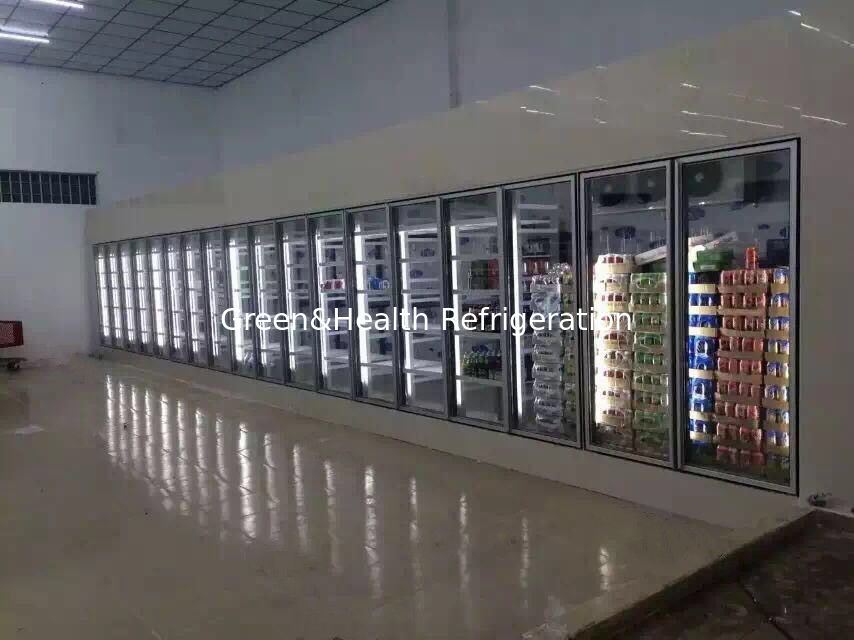

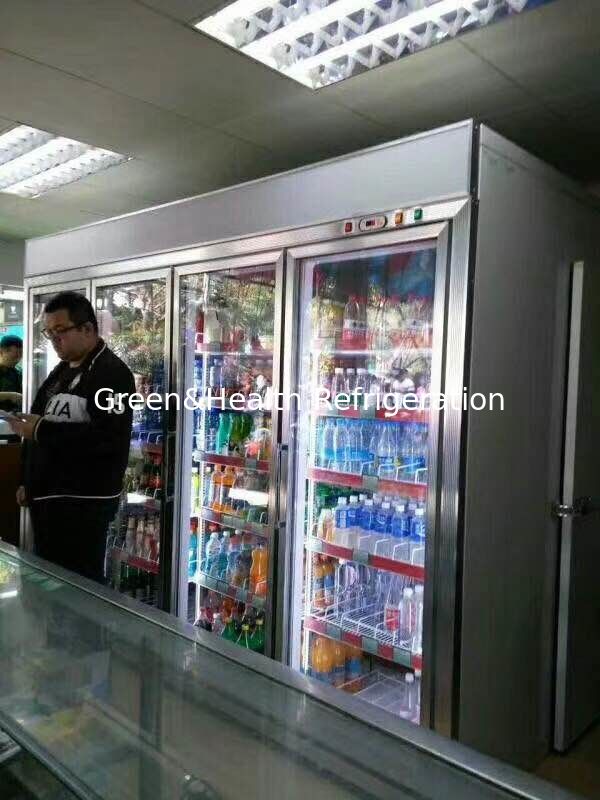

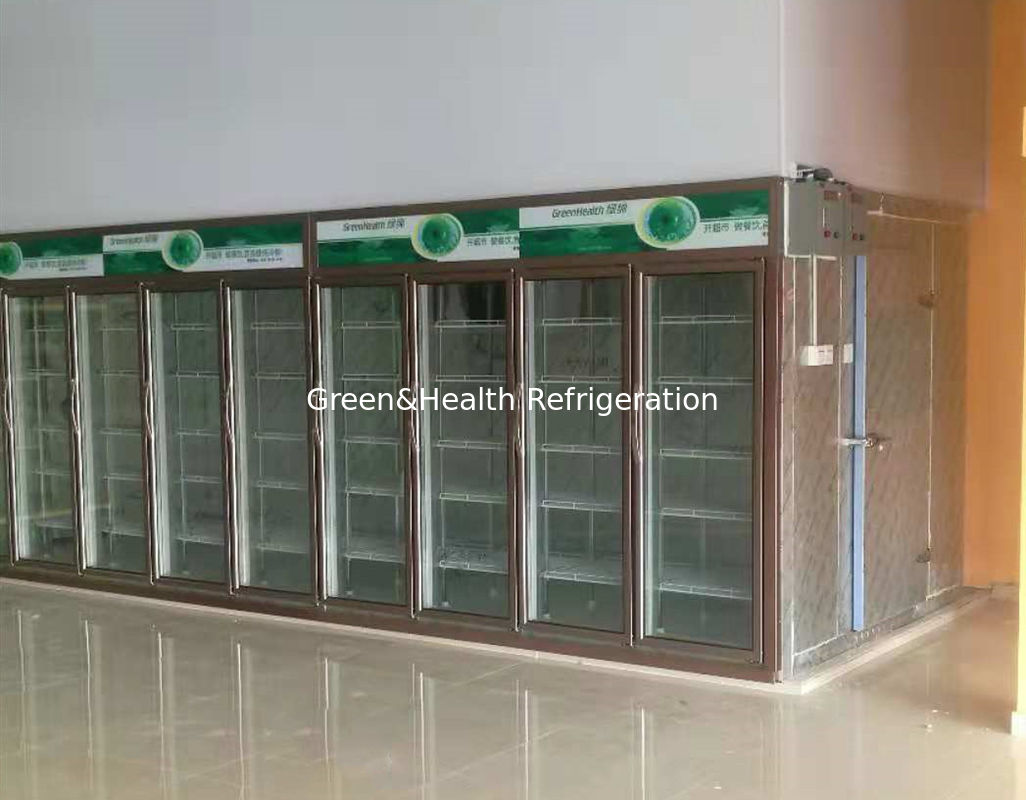

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

China Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm supplier
Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm supplier Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm supplier Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm supplier

Large Image :  Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Product Details:

Place of Origin: Guangzhou,China
Brand Name: Green&Health
Certification: CE
Model Number: LG-4HB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Crate package
Delivery Time: delivery in 20-25 days after we received your deposit
Payment Terms: T/T
Supply Ability: 500/pcs/month
Contact Now
Detailed Product Description
Dimensions: 4360*1800*2150 Mm Power Supply: 380v, 50/60hz
Door: Tempered Glass With Heater Refrigerant: R404a
Material: Stainless Steel/Painted Steel Panel Thickness: 75mm

Green&Health Refrigeration Back Load Display Fridge/Freezer with Glass Doors Display

Features:

1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R404A, Environmental Friendly Refrigerant
3. Temperature Range: From - 18°C To 10°C
4. Room Size: Factory standard, also welcome customized sizes
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,

6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design

Cold Room Panels

Panel thickness we can provide 50mm/75mm/100mm/120mm/150mm/200mm for option,
but most popular thickness is 75mm.Different temperature need different pane thickness.
Temperature we can make it 2~8℃,-18℃ and others.

Specification

1. Cold Room: Suitable temperature 0~10℃/ -18~0℃

①Boay material thick: 75mm,  side soild door: W0.8*H1.8m
②Copeland/Bitzer compressor


Product nameDimension (L*W*H)Temperature range
3 Glass Doors Walk-in Chiller/Freezer2245*1800*2150 mm0~10℃/ -18~0℃
4 Glass Doors Walk-in Chiller/Freezer2950*1800*2150 mm0~10℃/ -18~0℃
5 Glass Doors Walk-in Chiller/Freezer3655*1800*2150 mm0~10℃/ -18~0℃
6 Glass Doors Walk-in Chiller/Freezer4360*1800*2150 mm0~10℃/ -18~0℃
7 Glass Doors Walk-in Chiller/Freezer5060*1800*2150 mm0~10℃/ -18~0℃
8 Glass Doors Walk-in Chiller/Freezer5770*1800*2150 mm0~10℃/ -18~0℃
9 Glass Doors Walk-in Chiller/Freezer6475*1800*2150 mm0~10℃/ -18~0℃
10 Glass Doors Walk-in Chiller/Freezer7180*1800*2150 mm0~10℃/ -18~0℃


2. Display shelves 6 pcs per door

Details:

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mmCold Room Panels
1. PU Panels for wall, ceiling and floor
1)Density: 42KGS
2)Cam Lock design
3)Fire resistance According to B2 of GB 8624-1997
4)Packing with Pubble paper/Bubble film ​
Cooling Machine
1) American Copeland/Germany Bitzer refrigeration unit
2)Horse power factory standard
3)Power supply: 220v/380v, 50hz/60hz
4)Air cooled condenser
5)Refrigerant: R404a
Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm
Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Air Cooler
1) Brand Kewely
2)fast cooling,auto defrost


Accessories:
Hardware, manual stabilizer, expansion valve, tem-balance window, insulation copper piping, moisture-proof cold light, digital temperature control system and so on

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm


Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Refrigeration Back Load Display Fridge Freezer With Glass Doors Panel Thickness 75mm

Why choose us ?
1. Quality Control
To ensure the quality of our vehicles and other products, Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers need and we are always looking for ways to improve the quality of our products through continuous improvement.
2. OEM Ability
We have built stable and long-term cooperate relationshilp with supermarkets,we canalso provide
OEM and Agent services to our customers over the world.
3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our equipments become standard with more features than anyone else, we also offer more optional parts for our equipmetns than anyone else.
4. Good Warranty
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.
