500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

Certification
Good quality Ice Cream Display Freezer for sales
Good quality Ice Cream Display Freezer for sales
Well received the island freezers and cold room for our supermarket,they use good.Thanks for your help

—— Alex Mohammed

I'm Online Chat Now

500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

China 500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor supplier
500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor supplier 500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor supplier 500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor supplier 500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor supplier

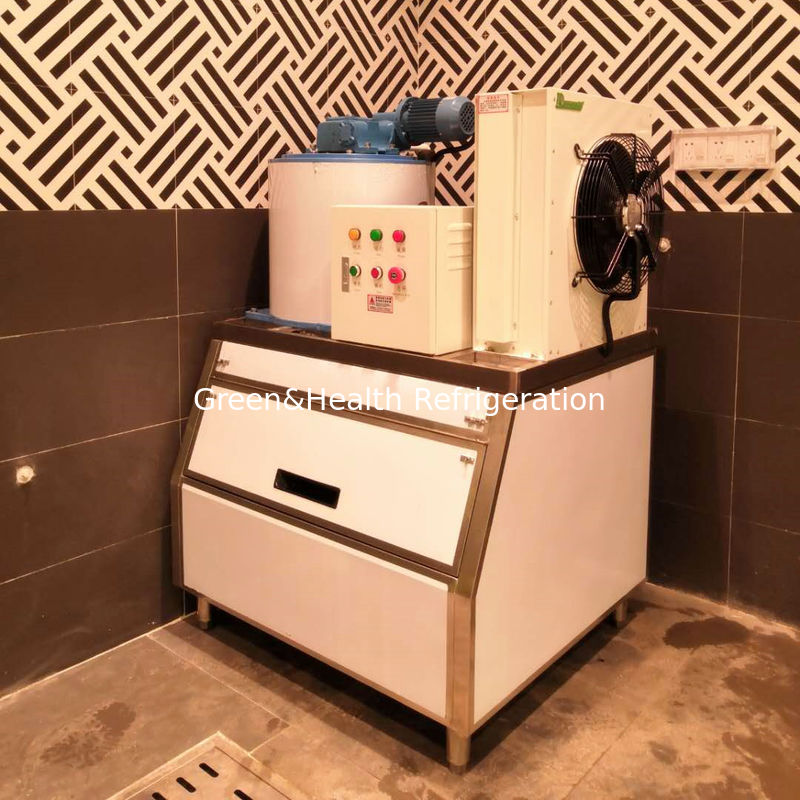

Large Image :  500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

Product Details:

Place of Origin: China
Brand Name: Greenhealth
Certification: CE,ROHS
Model Number: GH-1T

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Wooden frame
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 100PCS/week
Contact Now
Detailed Product Description
Voltage: 380v/50hz/3p,220V/50HZ Warranty: One Year
Ice Shape: Flake Ice Refrigerant: R404A
Type: Automatic Flake Ice Maker Cooling Way: Air Cooling/water Cooling
Capacity: 1 Ton/24 Hours Compressor: Danfoss/Bitzer/Bock/Hanbell
Ice Thickness: 1mm To 2mm Application: Seafood/meat/fish/vegetables

500 kgs Fan Cooling Supermarket Seafood Dry Flake Ice Machine





Feature


1.Full capacity of ice output
2.Machine power supply: 3 phase industrial power supply
3.Due to the shape, flake ice has a large contact area with the cold collection, and the cooling effect is wonderful.
4.The flake ice has no sharp angles, which will not damage the surface of the cold collection and are very convenient for storage and transportation.
5.The ice maker is designed and manufactured according to the standard of the pressure vessel, and the equipment is firm, safe and reliable.
6.Optimized refrigeration system design, stable operation and low failure rate.
7.Ice temperature is very low to -8 degree
8.The thickness of the flake ice is 1mm-2mm, and it can be used directly without crushing.

9.The machine is making ice continuously. So it is recommended to equip an ice bin for it. Our machine has auto control system which is able to stop the machine when the ice bin is full.



Specification:

Flake Ice Maker 200kgs
Model GH-0.2T Compressor Embraco
Dimension 1020*900*1600MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 1.5hp Capacity 200kgs per 24h
Flake Ice Maker 300kgs
Model GH-0.3T Compressor Embraco
Dimension 1020*900*1600MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 2hp Capacity 300kgs per 24h
Flake Ice Maker 500kgs
Model GH-0.5T Compressor Danfoss
Dimension 1100*970*1950MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 3hp Capacity 500kgs per 24h
Flake Ice Maker 1000kgs
Model GH-1T Compressor Danfoss
Dimension 1270*113*2050MM Refrigeration R404a
Temperature -15ºC Model refrigeration Fan cooling
Power 5hp Capacity 1000kgs per 24h



Compressor Brand: Danfoss / Bitzer / Hanbell; Refrigerant: R404A;
Power Supply: Voltage 220V/50/60Hz 380V/3P/50/60Hz
Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-20℃.

Air cooling /Water cooling mode.
Expansion valve:Danfoss
Ice capacity:200kgs to 30Tons/24h,different capacity models for choose
Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.

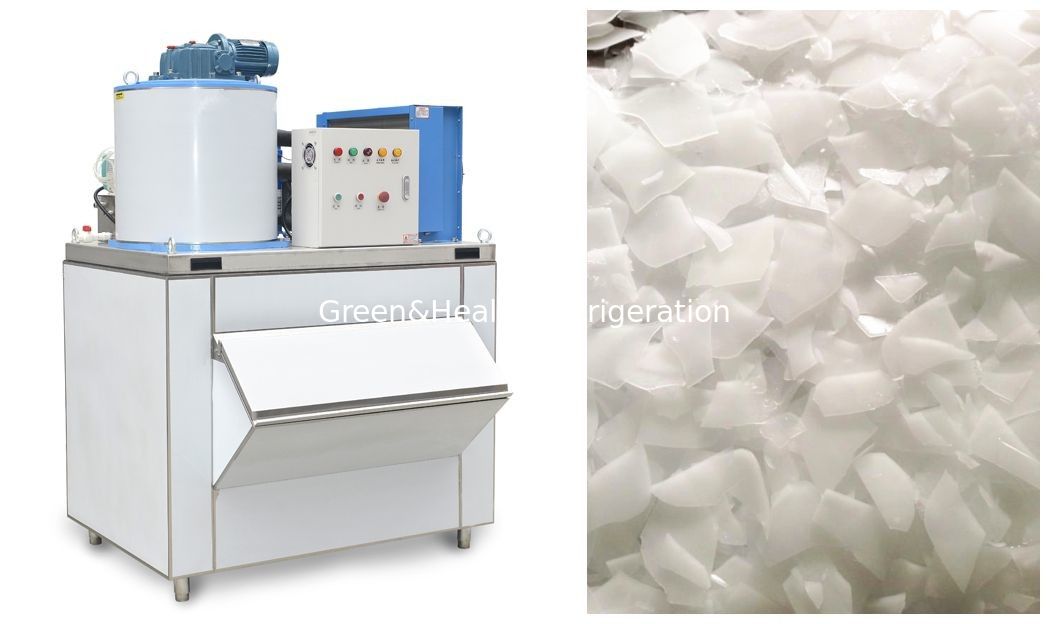

500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

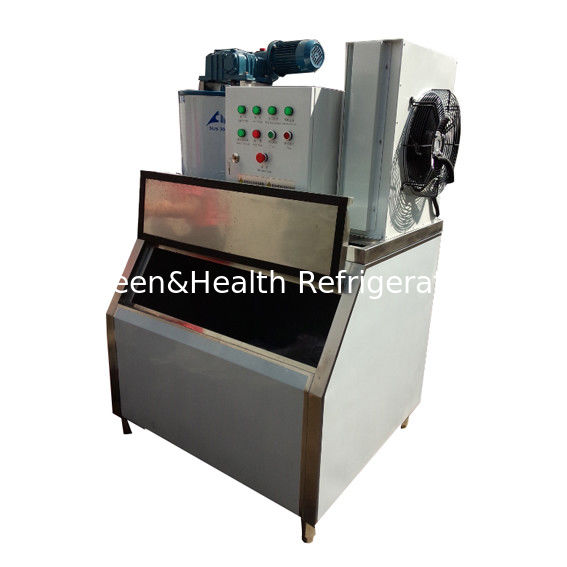

500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

Application:



Food / Fishery /Meat Processing,Medical Facilities,Supermarket, Fresh Preservation,Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

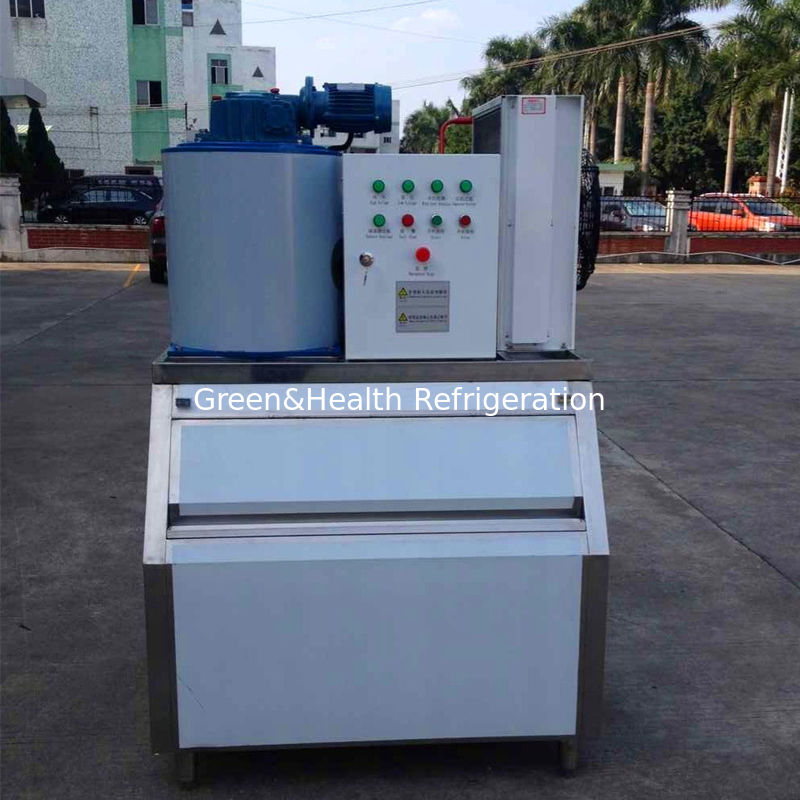

500 Kgs Fan Cooling Seafood Dry Flake Ice Maker Machine With Hanbell Compressor

tags:Flake ice machine;Dry Flake Ice Machine,seafood flake ice
