  • Product Details

Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen

Verified Supplier

China

Detailed Product Description
Name: Cold Room Panel: Polyurethan
Density: 42kgs Comprressor: Copeland Or Bitzer
Voltage: 220v/380v Panel Thickness: 100 / 150 / 200mm
Temperature: -20deg C/2deg C/-35deg C Size: Customized According To Design



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen



Green&heath frozen cold storage room adopts environment friendly R404a refrigerant. Capacity can be small to 2cubic meter, big to 10000cubic meter. The temperature can be 2 to 8 °C for chilling storage, or -18°C ,-25℃ to frozen storage. The frozen cold room is high quality such as high temperature resistant -60 to +80 celsius. Anti-sun photochemical effect, salt spray test 4days, painted inner interlayer thick 0.5mm, shear stiffness 0.1MPa, inner core materials fire resistance B2. Roof load 1KN/M2 water-proof 0.2Mpa, 10mm/min, 30min, endure. It is fire resistance according to B2 of GB 8624-1997. << buiding materials >> burning relative humidity 5% to 99%. Loading on floor 6KN/m2.

Particular Information:

Pictures



105cubic meter

Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen



Product Name

 Cold room, vegetables&fruits storage room, meat/butchery freezing room, dairy meat storage cooling room…

Temperature

 -20 degree & 0-8degree

Machine Lord position(optional)

 Remote Condensing Unit

Cooling style(optional)

 Air cooling or water cooling

Door frame(optional)

 Optional as: Swing door 800*1800mm, Sliding door 1200*2000mm or customized

Top plank(optional)

 double side painting steel

Wall plank(optional)

 double side painting steel, double side stainless steel for optional

Door(optional)

 double side painting steel, double side stainless steel for optional

Cape plank(optional)

 double side painting steel, double side stainless steel or double side aluminum board

Boffom frame(optional)

 double side painting steel, double side stainless steel or double side aluminum board

Scale board(optional)

 double side painting steel, double side stainless steel or double side aluminum board

Product Size

 Customized Size according to Design,Sample as 7*3.5*3m with dual temp room

Product Volume

 75cubic meter(40cbm for freezer ,35cbm for chiller)

Unit power/horse number

 5HP Freezer room compressor, 3hp chiller room compressor

Body material thickness

 100mm

Single door size

 W800mm*H1800mm *2 pcs

Cold room with floor panel thickness

100mm

Compressor

 USA Brand Copeland Scroll

 Use scope

 For restaurant equipment, cake room equipment, coffee shop equipment, bakery equipment, liquor stores equipment, western food shop equipment, Chinese food shop equipment, equipment, condiment processing plant equipment brewery, fruit and vegetable processing plant equipment, frozen foods factory equipment, a meat processing equipment,





Optional function, Cold store door, air curtain machine, lighting:



 1.1 Sliding door, manual opening and closing.



 1.2 When door is opened, the air curtain machine and lights in cold storage can be running automatically.

Customize idea

Different size, different temperature for keeping different goods available to make…Low Running Costs





Details



1.Quick scan



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen



2.Condenser unit (America Copeland or Germany BITZER optional)



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen





3.Fin type evaporate automatic defrost





Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen



4.Emboss aluminum sheet on bottom optional



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen



5.Panel 100mm for freezer and 100mm for chiller



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen

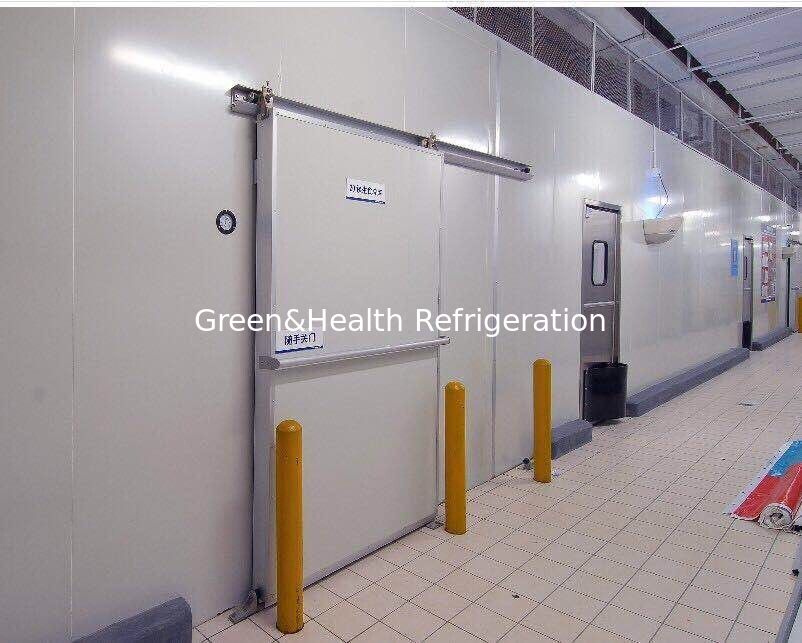

6.Project shows



Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen

Cold Room Freezer And Chiller Room for Supermarket Restaurant Hotel Kitchen
