Place of Origin:
China
Brand Name:
Green Health
Certification:
CE,Rohs
Model Number:
CR-60
Contact Us
Are you walk in cold room factory or trade company? this is most customers will ask us when first time contact me. I can totally tell you that we are factory and we already specialized in refrigeration equipment area more than 10 years. Except the walk in cold room, we also manufacture open chiller, beverage chiller and so on. more products information you can check our home page.

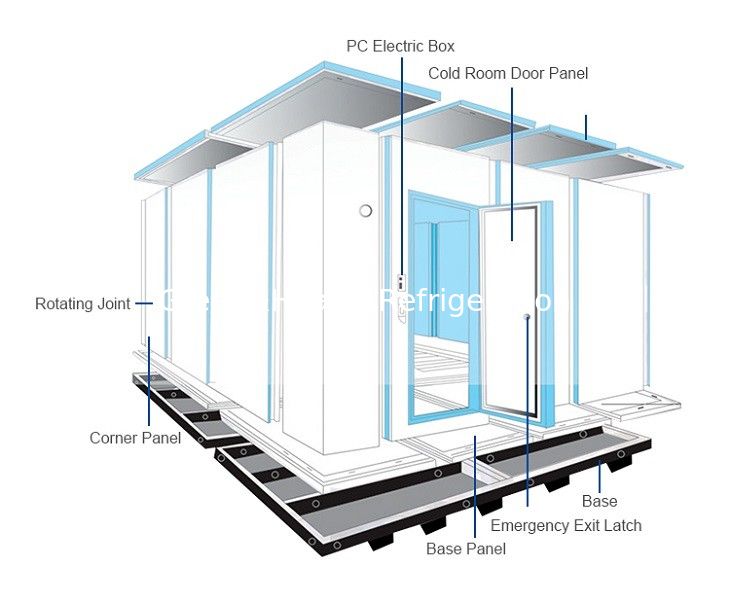

IF you are interested in walk in cold room panel information, please check below chart for more details. The cold room we have 75mm, 100mm, 120mm, 150mm and 200mm thickness for compatitable different cold room temperature. Cold room consist of panel, compressor unit, evepator, cold room doors and other spare parts like control box, copper pipe and so on.
| Cold Room Panel Information | ||
| Material | Core Material | Polyurethane |
| External Material | Painting steel sheet/SS/Aluminum/Galvanized sheet(Option) | |
| Thickness | Core Thickness | 75mm, 100mm, 120mm, 150mm, 200mm(Option) |
| Extenal Thickness | 0.726mm-1mm | |
| Cold Room Panel Density | 45KG/Cubic Meter | |
| Fire Rating | B2, (B1 is coming soon) | |
| Bonding Strength | ≥0.100MPa | |
| Fruit, Vegetable, Seefood | Suggest 100mm, and temperature -5℃ to 20℃ | |
| Fish,Chicken, Beef, Mutton, Seafood | Suggest 150mm, and temperature -18℃ to -25℃ | |
| Quick frozen meat, seafood, | Suggest 200mm, and temperature -35℃ to -40℃ | |
Please let me know the cold room dimension, temperature, door type, we will send you the quotation for reference. Email Or Call me Now!
